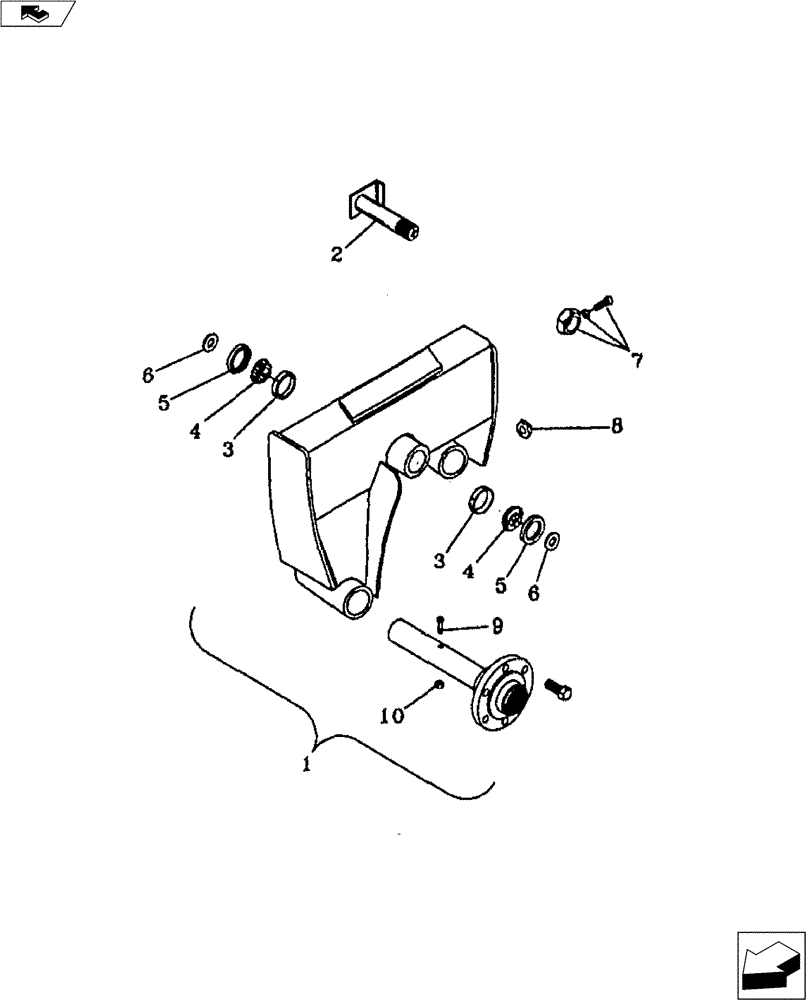

Запчасти Case IH 9000 (48.134.01) - TANDEM AXLE PIVOT (48) - TRACKS & TRACK SUSPENSION

1

05302600

Tandem Axle Assembly R.H.

1шт.

1

05302650

Tandem Axle Assembly L.H.

1шт.

2

05300330

PIN

Axle

1шт.

3

478793R1

BEARING CUP

2.45" O.D., Timken #LM29710

2шт.

4

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

1.50" Bore, Timken #LM29749

2шт.

5

21932090

SEAL

2.094" Bore, CR#20952

2шт.

6

06201425

SPACER

2шт.

7

14032408

JAM NUT

1-1/2" Jam and Set Screw

2шт.

8

219-86

LUBE NIPPLE,1/8" NPTF

NPT Zerk

1шт.

9

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

ZP

2шт.

10

232-4148

NUT,1/2"-13, GC

NC Stover

2шт.

11

28050885

STUB AXLE/STEERING S

50-8 Hub(Not Shown)

2шт.
