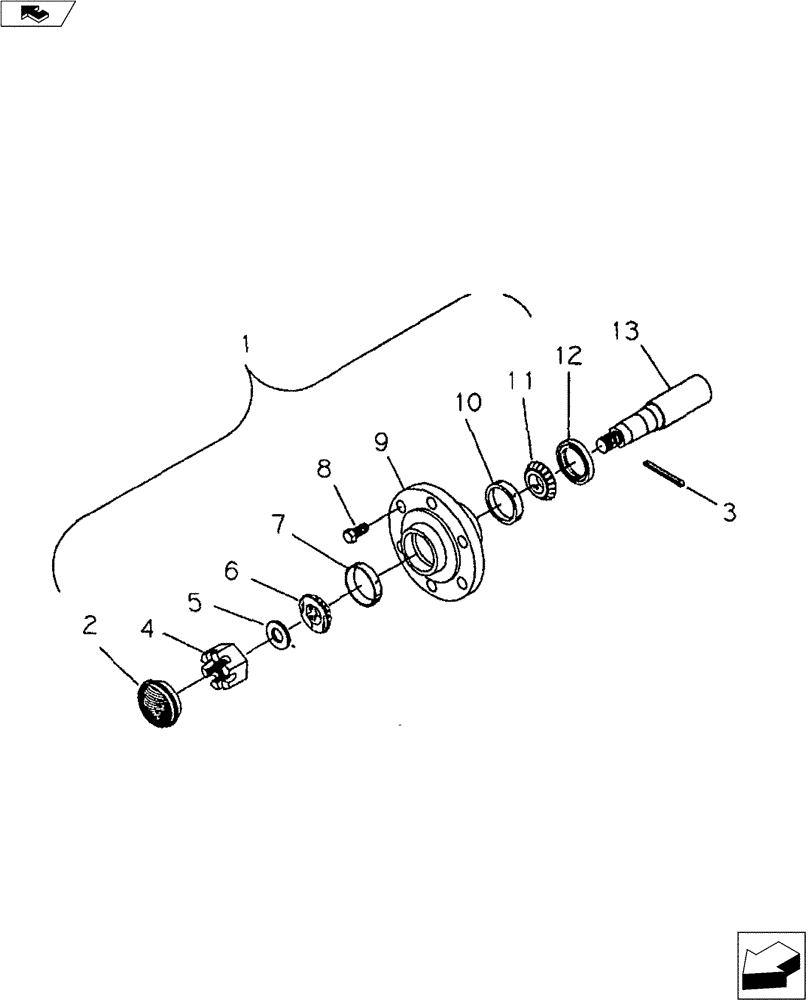

Запчасти Case IH 9000 (44.100.02) - 50-8 HUB AND SPINDLE (44) - WHEELS

1

28150800

HUB ASSY.

50-8 8-Bolt Hub AssY., Includes Ref. 2 - 9

1шт.

2

28460800

DUST CAP

Hub

1шт.

3

432-1232

COTTER PIN,3/16" OD x 2" L

5/32" x 2"

1шт.

4

425-1316

NUT,1"-14, G5

1шт.

5

17916100

WASHER

1" Dia.

1шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62" Bore - Timken #LM501349

1шт.

7

663558R1

BEARING CUP

2.89" O.D. - Timken #LM501310

1шт.

8

16410087

STUD

5/8" x 2-1/4" NF Wheel

6шт.

9

NSS

NOT SOLD SEPARAT

50-8 Hub

1шт.

10

376463C1

BEARING CUP

3.22" O.D. Cup - Timken #JLM104910

1шт.

11

21872005

ROLLER BEARING,50 mm ID

2.00" Bore - Timken #LM104948

1шт.

12

21932502

SEAL

2.50" x 3.25" - (Special Material)

1шт.

13

28350811

SPINDLE

Drilled

1шт.

13

28050885

STUB AXLE/STEERING S

Hub and Spindle Assy.

1шт.
