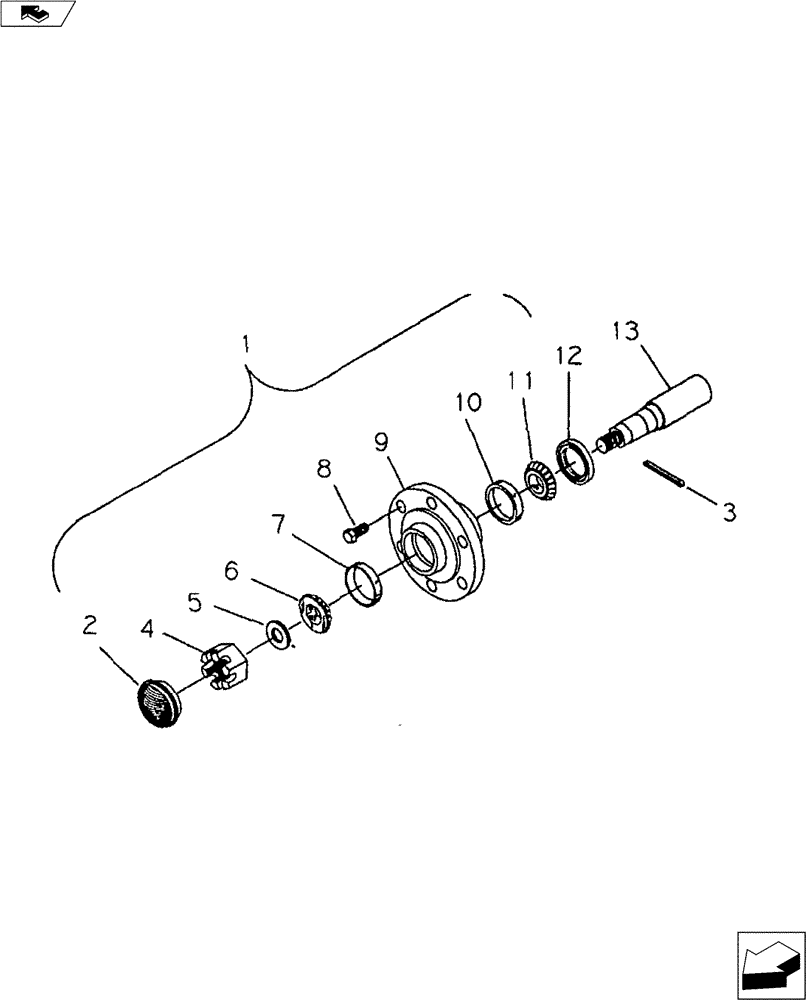

Запчасти Case IH 9000 (44.100.01) - Q710 HUB AND SPINDLE (44) - WHEELS

1

28171000

HUB ASSY.

Q-710 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

5

17915000

WASHER

7/8", H.T.

1шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore - Timken #LM67048

1шт.

7

651817R1

BEARING CUP

2.33" O.D. - Timken #LM67010

1шт.

8

16408053

SPECIAL BOLT

1/2" NF x 1-15/32'' Lug

6шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

10

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2.56" Bore Cone - Timken #LM48510

1шт.

11

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1.38" Bore - Timken #LM48548

1шт.

12

614410R91

SEAL

1.63" I.D. x 2.63" O.D.- CR #16322

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle

1шт.

13

28071001

HUB ASSY.

Hub & Spindle Assy. (9-3/8")

1шт.
