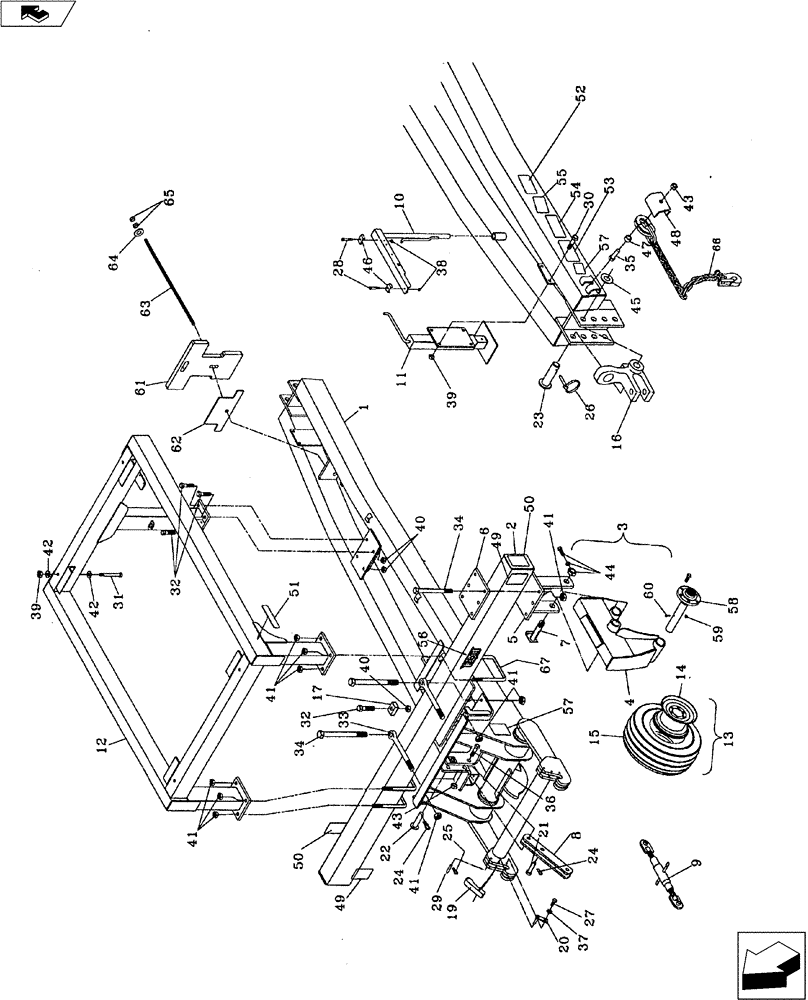

Запчасти Case IH 9000 (39.100.01) - CADDY PARTS (39) - FRAMES AND BALLASTING

1

05402700

FRAME

A

1шт.

2

05402520

Wheel Support

1шт.

3

05402600

AXLE

Tandem RH, Includes Ref. 4, 5,7, & 44

1шт.

3

05402650

AXLE

Tandem LH, Includes Ref. 4, 5, 7, & 44

1шт.

4

05402660

TOWING EQUIPMENT

Walking Beam, L.H.

1шт.

4

05402610

TOWING EQUIPMENT

Walking Beam, R.H.

1шт.

5

05402650

AXLE

Mount, Left Hand

1шт.

5

05402600

AXLE

Mount, Right Hand

1шт.

6

05300412

Mount

2шт.

7

05300330

PIN

Axle

2шт.

8

05300140

LIFT LINK

Transport

1шт.

9

05300550

TURNBUCKLE

Assembly

1шт.

10

05302150

STAND

Hose

1шт.

11

32223000

JACK ASSY.

1шт.

12

05402750

Tank

1шт.

13

10010163

WHEEL

12.5L x 15 12-Ply Tire Assy.

4шт.

13

10011163

LAND WHEEL

14L x 16.1 12-Ply Tire Assy.

4шт.

14

10110152

10 x 15 8-Hole Wheel

4шт.

14

10110174

WHEEL

16.1 x 11C 8-Hole

4шт.

15

NSS

NOT SOLD SEPARAT

12.5L x 15 12-Ply Tire

4шт.

15

NSS

NOT SOLD SEPARAT

14L x 16.1 12-Ply Tire

4шт.

15

NSS

NOT SOLD SEPARAT

Tube, 14L x 16.1 Tire

4шт.

16

20092310

CLEVIS

Combination Hitch

1шт.

17

05300010

Lug

2шт.

19

05402525

LATCH

3-Point

2шт.

20

05402580

PIN

Weld

2шт.

21

14816180

HEADED PIN

1" x 3" Clevis

1шт.

22

14820362

PIN

1-1/4" O.D. x 5-1/4" Clevis

1шт.

23

14820525

HITCH PIN,41.28mm OD x 204.72mm L

1-5/8" O.D.

1шт.

24

1978738C1

HAIR PIN COTTER

3/16" x 3"

1шт.

25

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

2шт.

26

D33805

PIN

7/16" x 1-3/4" Klik

1шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

28

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

29

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1/2" X 3-5/8"

2шт.

30

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

NC

4шт.

31

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

NC

4шт.

32

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

NC

6шт.

33

16314345

EYEBOLT

7/8" x 8-1/2" NC

4шт.

34

16014425

BOLT

7/8" x 10-1/2" NC Hex., Gd. 5

16шт.

35

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

NC

1шт.

36

413-1680

BOLT,Hex, 1" - 8 x 5", Gr 5

NC

1шт.

37

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

1/2" Heavy

2шт.

38

232-4146

NUT,3/8"-16, GC

NC Stove

4шт.

39

232-4148

NUT,1/2"-13, GC

5/8" NC Stover

8шт.

40

232-41410

LOCK NUT,5/8"-11, GC

3/4" NC Stover

6шт.

41

232-41414

NUT

7/8" NC Stover

20шт.

42

17411012

WASHER

5/8" Heavy

8шт.

43

232-41416

LOCK NUT,1"-8, GC

NC Stover

1шт.

44

14032408

JAM NUT

1-1/2" Jam with Set Screw

2шт.

45

17426001

WASHER

1-5/8" x 1/4" Thick

1шт.

46

06200125

HOSE CLAMP

6шт.

47

04681211

BUSHING

1шт.

48

04681210

BRACKET

1шт.

49

18534244

REFLECTOR

Red

2шт.

50

18534243

REFLECTOR

Amber

3шт.

51

311864A1

REFLECTOR

Amber

2шт.

52

18534228

DECAL

Warning Sign

1шт.

53

18534346

Warning Sign

1шт.

54

18534140

WARNING DECAL

Hitch Sign

1шт.

55

18534282

WARNING DECAL

Sign

1шт.

56

18534259

DECAL

DMI Logo

1шт.

57

18534336

Caution Sign

1шт.

58

28050885

STUB AXLE/STEERING S

50-8 Hub and

4шт.

59

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

60

232-4148

NUT,1/2"-13, GC

NC Stover

4шт.

61

05402531

Weight

24шт.

62

05402532

Weight, Locator Bracket

1шт.

63

16901288

3/4" Threaded Rod

1шт.

64

495-21081

WASHER,3/4"

Flat, ZP

2шт.

65

425-1012

NUT,3/4"-10, G5

4шт.

66

1032162

CHAIN

30,000 lbf Rated Safety

1шт.

67

16314415

U-BOLT

4шт.
