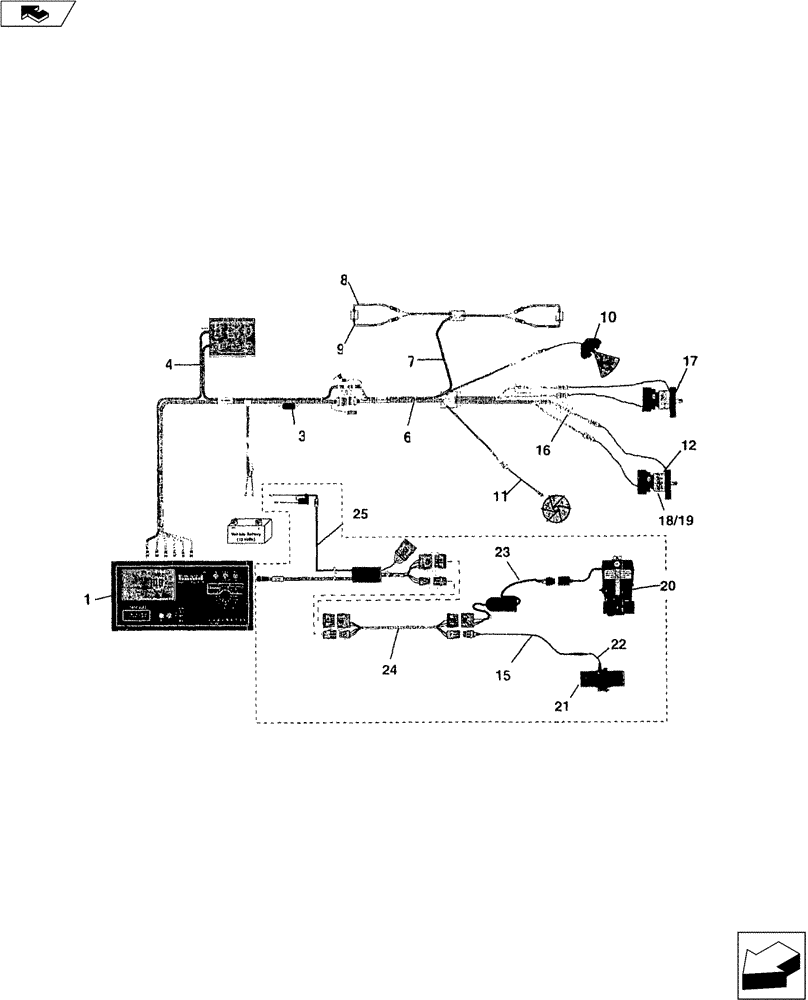

Запчасти Case IH 9000 (35.100.06) - CONTROL SYSTEM DUAL DRIVE PLUS 3RD CHANNEL NH, (35) - HYDRAULIC SYSTEMS

1

27701010

Mid-Tech TASC 6500 Controller

1шт.

2

27701131

Cab Harness Assembly, Includes items 3 & 4 (Not Shown)

1шт.

3

27701135

Cab Harness (Flow Control)

1шт.

4

27701136

Cab Harness (Sensor/Switch Box)

1шт.

5

27701152

Chassis Harness Assembly, Includes item 6 & 7 (Not Shown)

1шт.

6

27701153

Chassis(Flow Control) Assembly

1шт.

7

27701134

Chassis (Sensor) Assembly, Includes Items 8 & 9

1шт.

8

27701137

DIODE

Assembly

1шт.

9

27701138

SENSOR

1шт.

10

27701112

Radar Kit

1шт.

11

27701103

SENSOR

Fan

1шт.

12

27701111

SENSOR

Motor RPM

1шт.

15

27701233

NH3 Flowmeter Interface

1шт.

16

27701154

L Channel Divide by Four

1шт.

17

25205001

HYDRAULIC MOTOR

1шт.

18

25205002

CHECK VALVE

Hydraulic (Complete Block)

1шт.

19

25845003

CONTROL VALVE

Replacement Cartridge

1шт.

20

27701201

NH3 Control

1шт.

21

27701231

NH3 Flowmeter

1шт.

22

NSS

NOT SOLD SEPARAT

NH3 Flowmeter

1шт.

23

27701216

Valve Driver Interface

1шт.

24

27701214

Pump to Servo Extension Cable

1шт.

25

27701213

Pump to Servo Interface

1шт.
