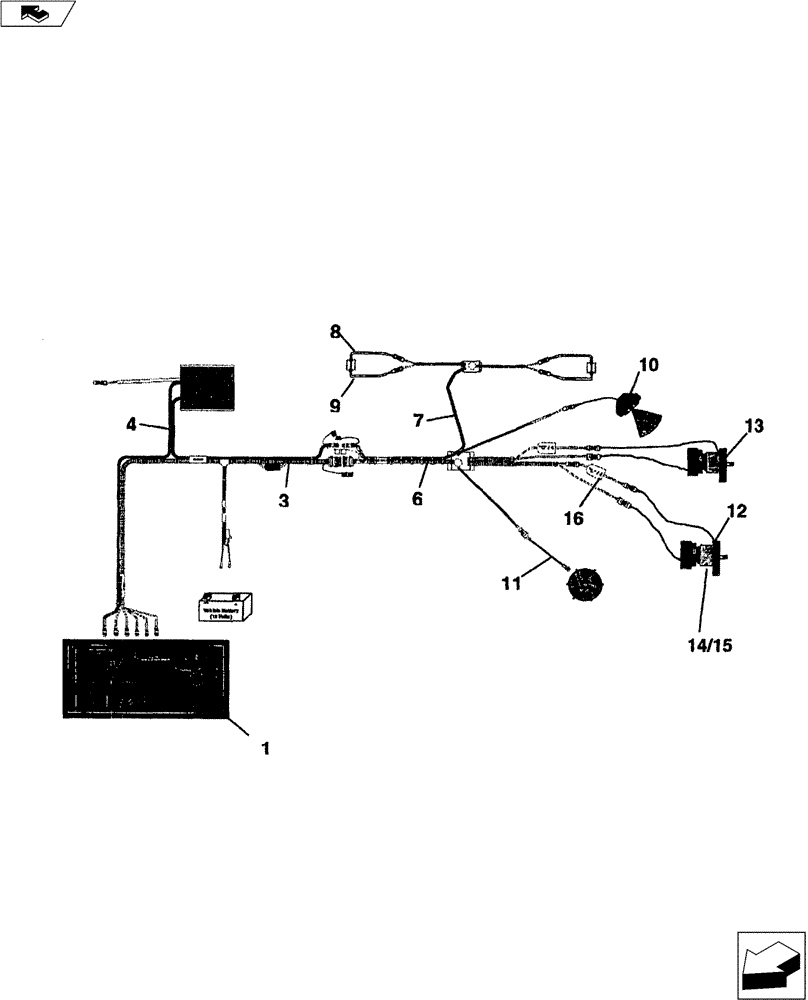

Запчасти Case IH 9000 (35.100.04) - CONTROL SYSTEM SINGLE OR DUAL DRIVE (35) - HYDRAULIC SYSTEMS

1

27701000

Mid-Tech TASC 6200 Controller

1шт.

2

27701131

Cab Harness Assembly Includes Items 3 & 4 (Not Shown)

1шт.

3

27701135

Cab Harness (Flow Control)

1шт.

4

27701136

Cab Harness (Sensor/Switch Box)

1шт.

5

27701152

Chassis Harness Assembly Includes Items 6 & 7 (Not Shown)

1шт.

6

27701153

Chassis (Flow Control) Assembly

1шт.

7

27701134

Chassis (Sensor) Assembly, Includes Ref. 8 & 9

1шт.

8

27701137

DIODE

Assembly

1шт.

9

27701138

SENSOR

Assembly

1шт.

10

27701112

Radar Kit

1шт.

11

27701103

SENSOR

Fan

1шт.

12

27701111

SENSOR

Motor RPM

1шт.

13

25205001

HYDRAULIC MOTOR

1шт.

14

25205002

CHECK VALVE

Hydraulic (Complete Block)

1шт.

15

25845003

CONTROL VALVE

Replacement Cartridge

1шт.

16

27701154

L Channel Divide by Four

1шт.
