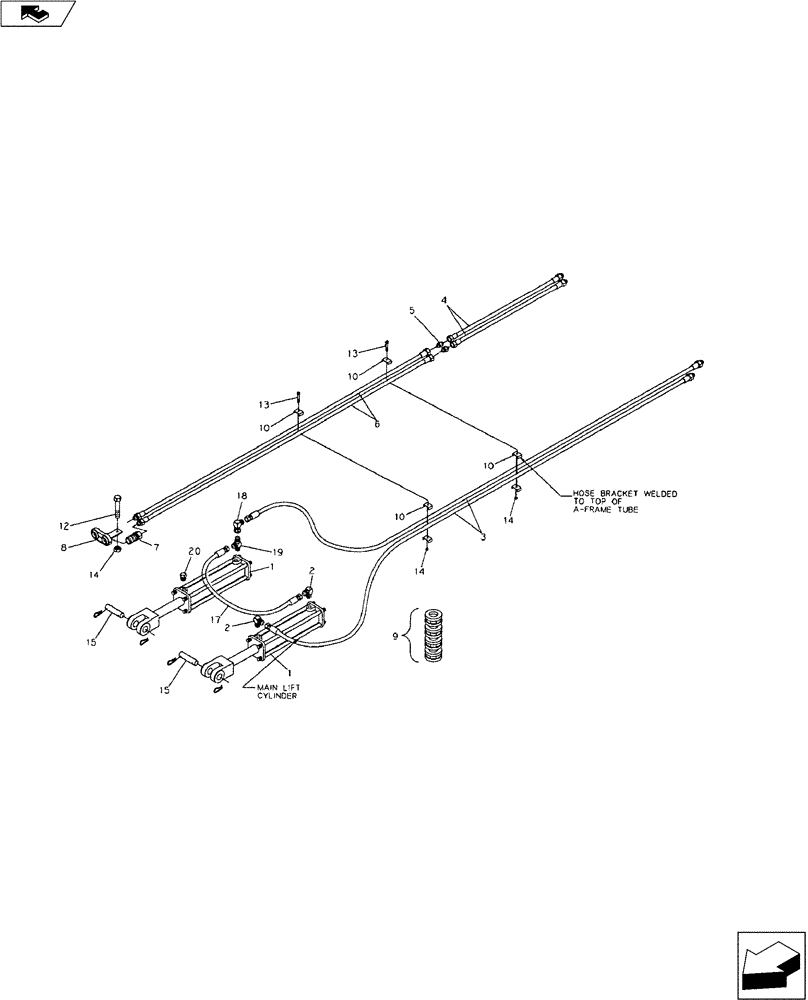

Запчасти Case IH 9000 (35.100.01) - LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25330082

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 203.2mm Stroke

3" x 8" (3000 psi)

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

NC

2шт.

3

25610901

HYDRAULIC HOSE

1/2" x 196" Long

2шт.

4

25610645

HYDRAULIC HOSE

3/8" x 80" Long

4шт.

5

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

JICM Coupler

4шт.

6

25610717

HYDRAULIC HOSE

3/8" x 150" Long

4шт.

7

25705021

COUPLING

ISO Female Coupler

4шт.

8

25705012

COUPLING

Breakaway Frame

2шт.

9

7737869

COLLAR

Stroke Control Kit

2шт.

10

06200125

HOSE CLAMP

12шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

NC

4шт.

13

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

NC

4шт.

14

232-4146

NUT,3/8"-16, GC

NC Stover

8шт.

15

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1"x 4.30"

2шт.

16

432-1632

COTTER PIN,1/4" x 2"

(Not Shown)

2шт.

17

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

1шт.

18

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

19

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

20

25707540

BREATHER

3/4" SAEM Cylinder

1шт.
