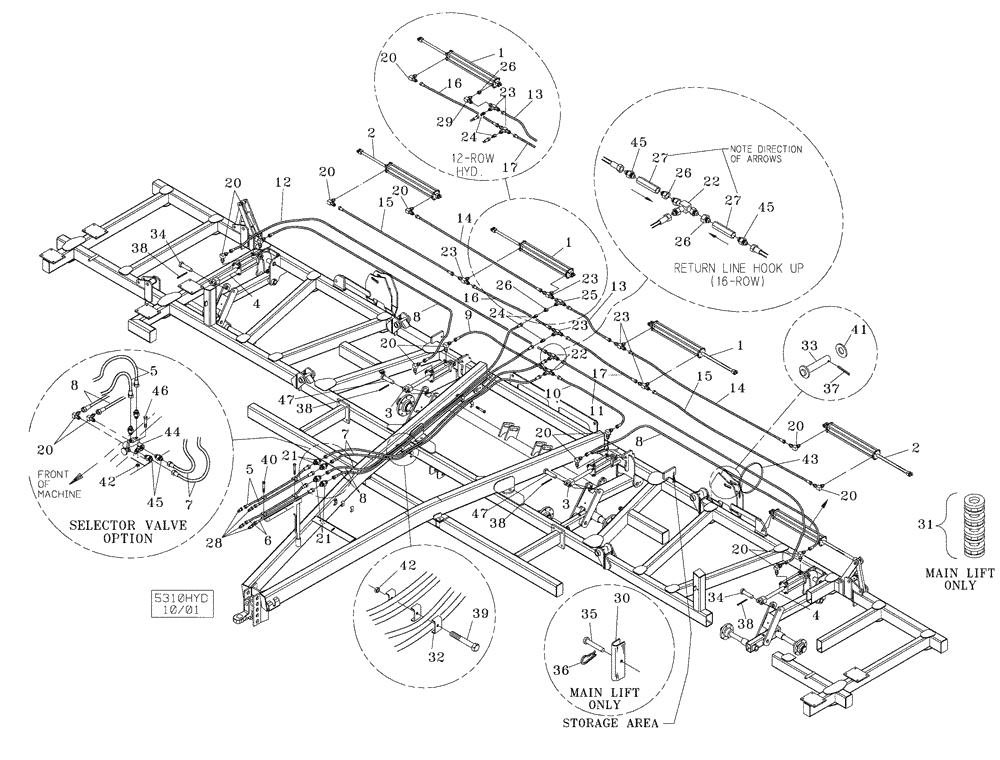

Запчасти Case IH 5310 (35.100.02) - 12 AND 16 ROW ONLY 2006 MODEL YEAR AND PRIOR (08) - HYDRAULICS

1

25340362

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4 x 36

2шт.

1

25340362R

REMAN-HYD CYLINDER

NTX5310 Pull Type

2шт.

1

25340362C

CORE-HYD CYLINDER

Return Number

2шт.

2

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 36, 16 Row Only

2шт.

25335242R

REMAN-HYD CYLINDER

NTX5310 Pull Type

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

3

87394803

HYDRAULIC CYLINDER

3-1/2 x 10, Rephase

2шт.

87394803R

REMAN-HYD CYLINDER

5310 NUTRI-TILLER - PULL TYPE, NTX5310 - PULL TYPE

2шт.

87394803C

CORE-HYD CYLINDER

Return Number

1шт.

4

87394795

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3-1/4 x 10, Rephase

2шт.

87394795R

REMAN-HYD CYLINDER

NTX5310, 5310 NUTRI-TILLER - PULL TYPE both 2006 MODEL YEAR AND PRIOR

2шт.

87394795C

CORE-HYD CYLINDER

Return Number

1шт.

5

25610855

HYDRAULIC HOSE

1/2 x 100

2шт.

6

25610645

HYDRAULIC HOSE

3/8 x 80

2шт.

7

134216A1

HYDRAULIC HOSE,12.7mm ID x 4190mm L

1/2 x 165

2шт.

8

25600633

HYDRAULIC HOSE,0.38" ID x 165.00", SAE 100R17

2шт.

9

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

1шт.

10

25600662

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R17

1шт.

11

25600695

HYDRAULIC HOSE,0.38" ID x 220.00", SAE 100R17

1шт.

12

25600615

HYDRAULIC HOSE,0.38" ID x 173.00", SAE 100R17

1шт.

13

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

1шт.

14

25600650

HYDRAULIC HOSE,9.53mm ID x 3251.2mm L

2шт.

15

25600669

HYDRAULIC HOSE,9.65mm ID x 2895.6mm L, SAE 100R17

2шт.

16

25600634

HYDRAULIC HOSE,0.38" ID x 37.00", SAE 100R17

1шт.

17

25600704

HYDRAULIC HOSE,9.53mm ID x 2463.8mm L, SAE 100R17

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

16 Row Units

12шт.

Selector Valve Items (P0466083)

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

12 Row Units

11шт.

21

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

22

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

23

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

16 Row Units

5шт.

23

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

12 Row Units

1шт.

24

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple, SAE

2шт.

25

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

26

25707534

ADAPTER

3/4 SAEM x 3/4 JICF

1шт.

27

25407503

VALVE, PRESSURE RELI

EF 16 Row Units Only

2шт.

28

25705041

COUPLING

3/4 SAEF ISO, Male

2шт.

29

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

16 Row Units Only

1шт.

30

04632700

STAY

9-3/4, Cylinder

2шт.

31

25800010

CYLINDER

Stroke Control, 1-1/4

2шт.

32

06200125

HOSE CLAMP

15шт.

33

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 x 4-1/4. E.L.

2шт.

34

14816466

CLEVIS,44.45mm OD x 164.08mm L

1 x 5.81, E.L.

2шт.

35

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/8, E.L.

2шт.

36

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

2шт.

37

432-1632

COTTER PIN,1/4" x 2"

2шт.

38

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

39

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

5шт.

40

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

41

495-21106

WASHER,1"

2шт.

42

425-106

NUT,3/8"-16, Cl 5

5шт.

Selector Valve Items (P0466083)

1шт.

43

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

1шт.

44

25401000

VALVE

Selector

1шт.

Selector Valve Items (P0466083)

1шт.

45

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

4шт.

Selector Valve Items (P0466083)

1шт.

46

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

47

14891672

PIN

1 x 9, Clevis

2шт.
