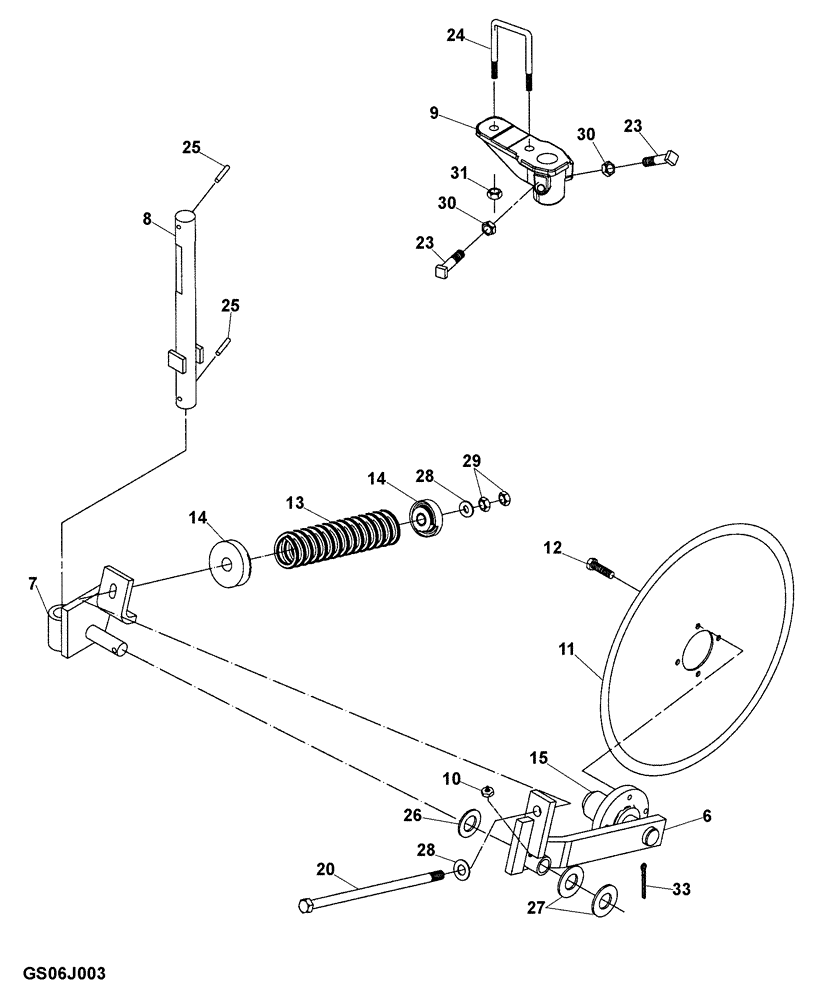

Запчасти Case IH 5310 (75.200.01) - 24 SPRING COULTER (09) - CHASSIS/ATTACHMENTS

2

P6466340

KIT

24, Standard Mount With Hardware

1шт.

4

04663050

COULTER

24, Less Blade And Shaft

1шт.

5

04663050

COULTER

24, Coulter Arm

1шт.

6

04663300

SUPPORT

24, Coulter

1шт.

7

04663200

BAR ASSY.

Coulter

1шт.

8

04663140

SHAFT

24, Coulter

1шт.

Only Serviced On 5310-16 Row Machines

1шт.

8

87583308

SHAFT

22, Coulter

1шт.

28078372 Used On 2006 And Prior Models

1шт.

9

04663410

BAR ASSY.

Standard Mount

1шт.

Only Serviced On 5310-16 Row Machines

1шт.

9

87460812

MOUNTING PARTS

Casting

1шт.

28078372 Used On 2006 And Prior Models

1шт.

11

443638A1

PLOW DISC

DISK, 24"X4.5 MM

1шт.

13

24156205

COIL SPRING

24, Compression

1шт.

14

20090050

HOLDER

Spring

2шт.

15

28063331

HUB ASSY.

633 Hub And Spindle

1шт.

20

413-10216

BOLT,Hex, 5/8" - 11 x 13-1/2", Gr 5

1шт.

23

16812084

SET SCREW,3/4" - 10 x 2"

3/4 x 2, Square Head

2шт.

24

87427182

U-BOLT

BOLT "U" 3/4 x 4 x 8

2шт.

25

438-32840

PIN,11.1mm OD x 63.5mm L

2шт.

26

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4, 10 Gauge, Machine

1шт.

27

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, 14 Gauge, Machine

2шт.

28

495-81028

WASHER,21/32" x 1 1/2" x .240"

2шт.

29

425-1010

NUT,5/8"-11, G5

2шт.

30

425-1412

JAM NUT,Jam, 3/4"-10, G5

1шт.

31

425-1012

NUT,3/4"-10, G5

4шт.

32

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

33

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.
