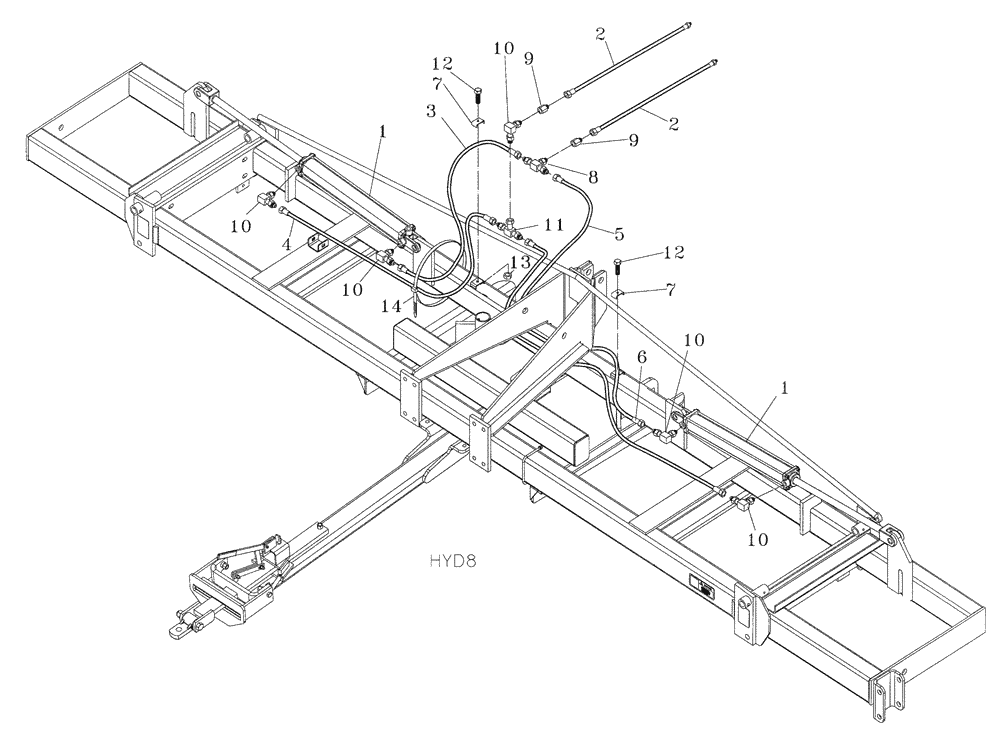

Запчасти Case IH 5310 (35.100.01) - HYDRAULICS - 8 ROW ONLY (08) - HYDRAULICS

1

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24

2шт.

25335242R

REMAN-HYD CYLINDER

5310 Nutri Till'R Mounted

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25600647

HYDRAULIC HOSE,0.38" ID x 48.00"

2шт.

3

25600622

HYDRAULIC HOSE,0.38" ID x 22.00", SAE 100R17

1шт.

4

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

1шт.

5

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

1шт.

6

25600678

HYDRAULIC HOSE,0.38" ID x 78.00", SAE 100R17

1шт.

7

06200125

HOSE CLAMP

2шт.

8

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

9

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

10

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

5шт.

11

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

1шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

8шт.
