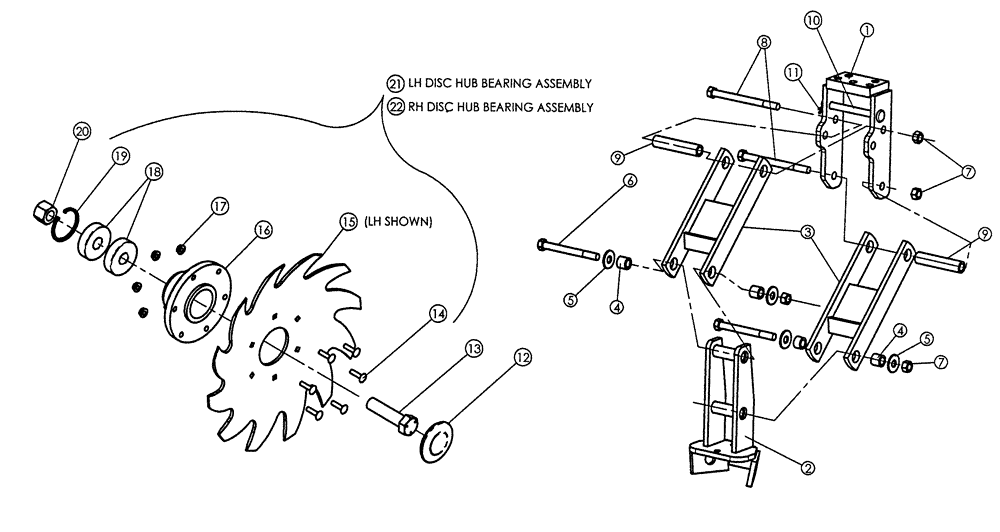

Запчасти Case IH 5310 (75.200.08) - ROW CLEANER (09) - CHASSIS/ATTACHMENTS

1

04694070

MOUNTING PARTS

1шт.

2

04694062

MOUNTING PARTS

Blade

1шт.

3

04694063

LIFT LINK

2шт.

4

04694059

BUSHING

4шт.

5

495-21056

WASHER,1/2"

1/2, Standard

4шт.

6

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

7

86992215

LOCK NUT,1/2"-13, GC

4шт.

8

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

9

04694043

TUBE,0.563" ID, 0.875" OD, 4.06" Length

2шт.

10

14808400

SPECIAL PIN,12.7mm OD x 138.76mm L

1/2 x 5, EL

1шт.

11

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

2шт.

12

87413883

CAP

2шт.

13

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

14

86508769

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 5

12шт.

15

87413884

TILLAGE BLADE

Lh

1шт.

15

87413885

TILLAGE BLADE

Rh

1шт.

16

87413886

HUB

Row Cleaner

2шт.

17

231-5344

FLANGE NUT,Flg, 1/4"-20

12шт.

18

87413887

BEARING

2 x .75, (Fafnir 205KPR2)

4шт.

19

87413888

SNAP RING

2, Internal Snap

2шт.

20

429-1012

NUT,3/4"-10, G8

2шт.

21

87413889

HUB ASSY.

Disc Hub Bearing, Lh

1шт.

22

87413890

HUB ASSY.

Disc Hub Bearing, Rh

1шт.
