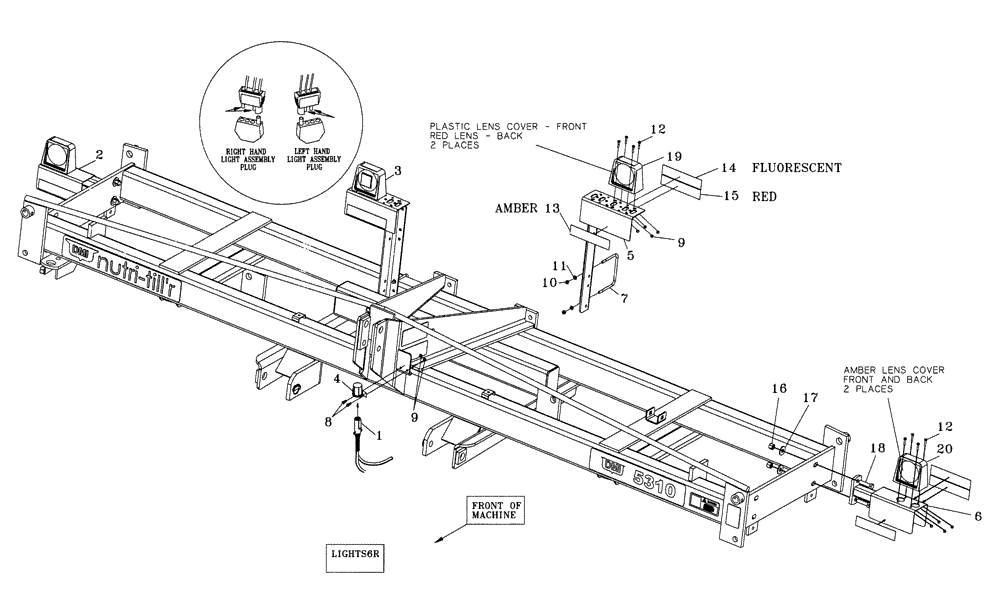

Запчасти Case IH 5310 (55.404.01) - WARNING AND TAILLIGHT KIT - 6 ROW UNIT (04) - ELECTRICAL SYSTEMS

1

27602314

WIRE HARNESS

1шт.

2

27602414

BRACKET

Light Side, Rh

1шт.

3

87328899

BRACKET

Short, Rh

1шт.

4

27601214

HOLDER

Storage, Plug

1шт.

5

87328901

BRACKET

Short, Lh

1шт.

6

27602412

BRACKET

Side, Lh

1шт.

7

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8 x 4.9 x 6.06

2шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

86992211

NUT

1/4

18шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

13

311864A1

REFLECTOR

Amber

1шт.

14

311865A1

REFLECTOR

Flourescent

1шт.

15

311863A1

REFLECTOR

Red

1шт.

16

85700693

NUT,5/8" - 11, Gr C

2шт.

17

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

18

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

19

27602202

LIGHT ASSY.

Red

2шт.

20

27602201

LIGHT ASSY.

Amber

2шт.

21

27601215

LENS

Replacement, Amber

1шт.

22

27601216

LENS

Replacment, Red

1шт.

12

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.
