Запчасти Case IH 5310 (35.100.03) - HYDRAULICS - 12 & 16 ROW (2007 AND AFTER) (08) - HYDRAULICS

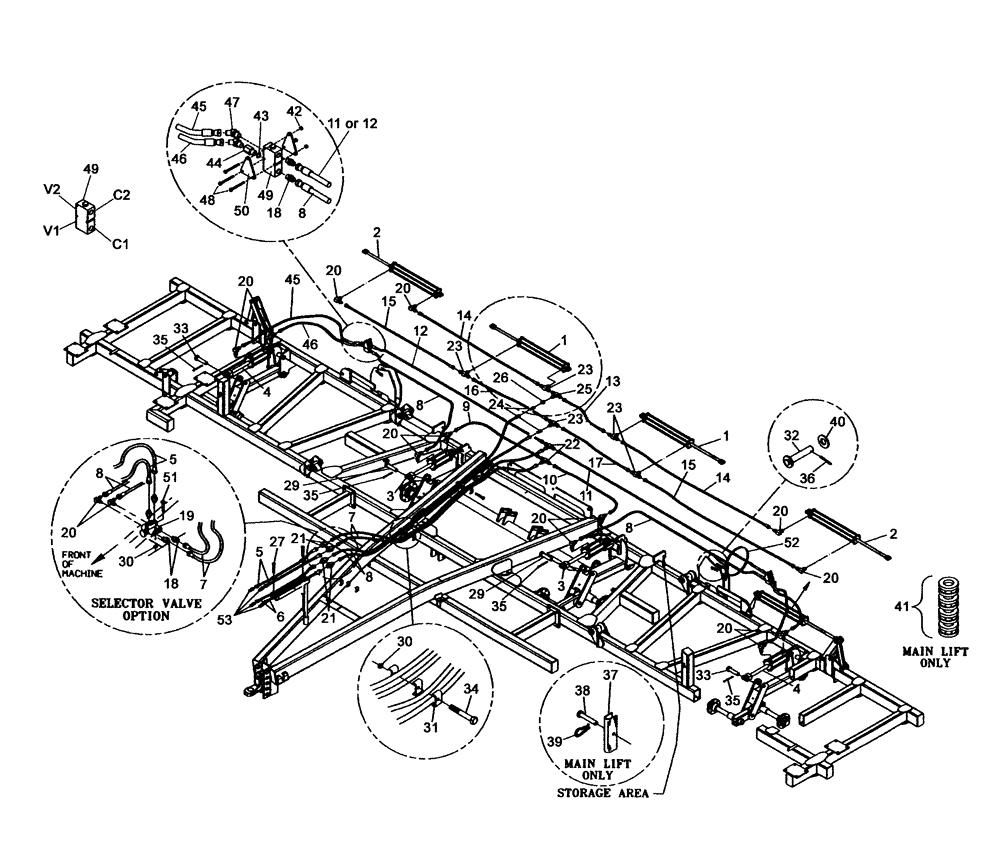

Схема запчастей Case IH 5310 - (35.100.03) - HYDRAULICS - 12 & 16 ROW (2007 AND AFTER) (08) - HYDRAULICS
32
48
29
6
20
23
4
8
33
14
16
23
12
17
20
25
27
20
18
13
42
20
31
24
3
45
36
43
45
5
52
22
35
1
47
20
20
18
1
29
35
3
15
30
23
40
53
5
2
38
8
20
34
49
35
46
49
8
7
2
11
26
10
35
30
11
9
8
46
7
37
33
1
12
15
50
20
39
20
14
5
21
23
4
21
8
44
41

Артикул

Название

Примечание

Количество

1

25340362

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4 x 36

2шт.

1

25340362R

REMAN-HYD CYLINDER

5310 - DMI NUTRI-TILL'R®

2шт.

1

25340362C

CORE-HYD CYLINDER

Return Number

2шт.

2

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24, 16 Row Only

2шт.

25335242R

REMAN-HYD CYLINDER

5310 Nutri Till'R

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

3

87394803

HYDRAULIC CYLINDER

3-1/2 x 10, Rephase

2шт.

87394803R

REMAN-HYD CYLINDER

5310

2шт.

87394803C

CORE-HYD CYLINDER

Return Number

1шт.

4

87394795

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3-1/4 x 10, Rephase

2шт.

87394795R

REMAN-HYD CYLINDER

5310 DMI NUTRI-TILL'R® 2007 AND AFTER

2шт.

87394795C

CORE-HYD CYLINDER

Return Number

1шт.

5

25610855

HYDRAULIC HOSE

1/2 x 100

2шт.

6

25610645

HYDRAULIC HOSE

3/8 x 80

2шт.

7

134216A1

HYDRAULIC HOSE,12.7mm ID x 4190mm L

1/2 x 165

2шт.

8

25600711

HYDRAULIC HOSE,9.65mm ID x 2362.2mm L, SAE 100R17

2шт.

9

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

1шт.

10

25600662

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R17

1шт.

11

25600752

HYDRAULIC HOSE,9.68mm ID x 161mm L

1шт.

12

25600691

HYDRAULIC HOSE,9.65mm ID x 2514.6mm L, SAE 100R17

1шт.

13

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

1шт.

14

25600650

HYDRAULIC HOSE,9.53mm ID x 3251.2mm L

2шт.

15

25600669

HYDRAULIC HOSE,9.65mm ID x 2895.6mm L, SAE 100R17

2шт.

16

25600634

HYDRAULIC HOSE,0.38" ID x 37.00", SAE 100R17

1шт.

17

25600704

HYDRAULIC HOSE,9.53mm ID x 2463.8mm L, SAE 100R17

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

Selector Valve Items (P0466083)

1шт.

19

25401000

VALVE

Black

1шт.

Selector Valve Items (P0466083)

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

16 Row Units

12шт.

Selector Valve Items (P0466083)

1шт.

21

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

22

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

23

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

16 Row Units

5шт.

24

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple, SAE

2шт.

25

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

27

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

28

25705041

COUPLING

3/4 SAEF ISO, Male

2шт.

29

14891672

PIN

1 x 9

2шт.

30

425-106

NUT,3/8"-16, Cl 5

5шт.

Selector Valve Items (P0466083)

1шт.

31

06200125

HOSE CLAMP

15шт.

32

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1 x 4-1/4, E.L.

2шт.

33

14816466

CLEVIS,44.45mm OD x 164.08mm L

1 x 5.81, E.L.

2шт.

34

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

5шт.

35

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

36

432-1632

COTTER PIN,1/4" x 2"

2шт.

37

04632700

STAY

9-3/4, Cylinder

2шт.

38

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 x 3-1/4

2шт.

39

14720411

COTTER PIN

PIN, COTTER 1/8 x 2

2шт.

40

495-21106

WASHER,1"

2шт.

41

25800010

CYLINDER

1-1/4 Stroke Control

2шт.

42

86992211

NUT

1/4

3шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

44

25407502

CONTROL VALVE

Pink

2шт.

45

25600620

HYDRAULIC HOSE,9.65mm ID x 1638.3mm L, SAE 100R17

2шт.

46

25600708

HYDRAULIC HOSE,9.65mm ID x 1270mm L, SAE 100R17

2шт.

47

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

48

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

2шт.

49

298624A1

VALVE

Piloted Check

1шт.

50

87577920

PLATE

2шт.

51

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

Selector Valve Items (P0466083)

1шт.

52

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

1шт.

Выбрано товаров: 64
