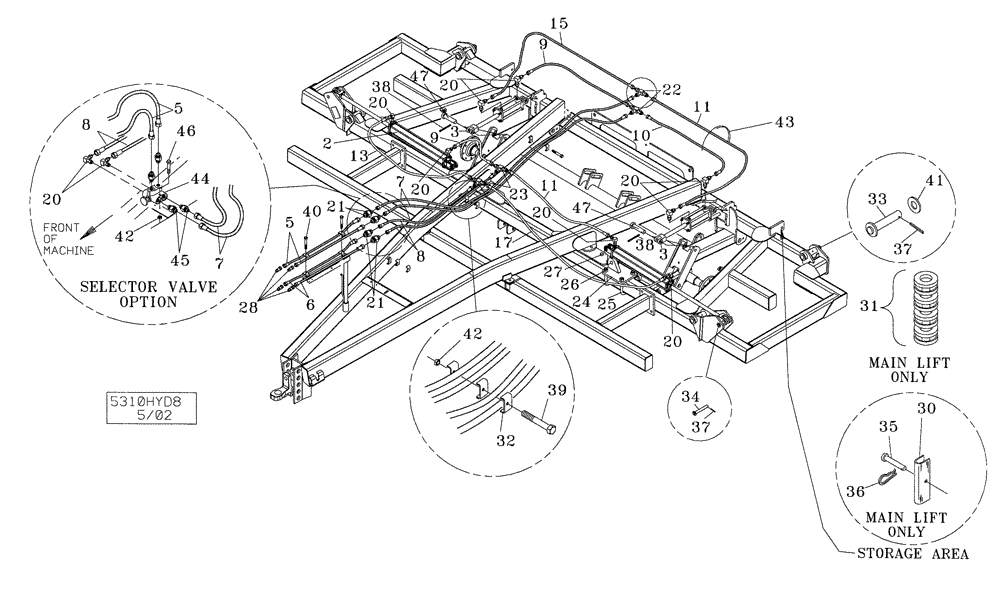

Запчасти Case IH 5310 (35.100.01) - HYDRAULICS - 8-ROW (08) - HYDRAULICS

2

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24

2шт.

25335242R

REMAN-HYD CYLINDER

5310 Nutri Till'R

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

3

87394803

HYDRAULIC CYLINDER

3-1/2 x 10, Rephase

2шт.

87394803R

REMAN-HYD CYLINDER

5310

2шт.

87394803C

CORE-HYD CYLINDER

Return Number

1шт.

5

25610855

HYDRAULIC HOSE

1/2 x 100

2шт.

6

25610645

HYDRAULIC HOSE

3/8 x 80

2шт.

7

134216A1

HYDRAULIC HOSE,12.7mm ID x 4190mm L

1/2 x 165

2шт.

8

25600669

HYDRAULIC HOSE,9.65mm ID x 2895.6mm L, SAE 100R17

2шт.

9

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

1шт.

10

25600662

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R17

1шт.

11

25600735

HYDRAULIC HOSE,0.38" ID x 82.00", SAE 100R17

1шт.

13

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

1шт.

14

25600650

HYDRAULIC HOSE,9.53mm ID x 3251.2mm L

2шт.

15

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

1шт.

17

25600692

HYDRAULIC HOSE,0.38" ID x 108.00", SAE 100R17

1шт.

20

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

12шт.

Selector Valve Items (P0466083)

1шт.

21

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

22

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

23

218-594

TEE,3/4"-16, 37 Degree

2шт.

24

04692020

BRACKET

Lh

1шт.

24

04692025

BRACKET

Rh

1шт.

25

87427182

U-BOLT

BOLT "U" 3/4 x 4 x 7-1/2

4шт.

26

86992217

NUT

8шт.

27

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

28

25705041

COUPLING

3/4 SAEF, Male

2шт.

29

86992216

NUT

2шт.

30

04632700

STAY

9-3/4, Cylinder

2шт.

31

25800010

CYLINDER

1-1/4, Stroke Control

2шт.

32

06200125

HOSE CLAMP

9шт.

33

14820650

HITCH PIN,41.27mm OD x 233.68mm L

1-5/8 Diameter

2шт.

34

14816466

CLEVIS,44.45mm OD x 164.08mm L

1 x 5.81, E.L

4шт.

35

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8 X 3-1/8. E.L.

2шт.

36

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair

2шт.

37

438-32840

PIN,11.1mm OD x 63.5mm L

2шт.

38

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

39

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

5шт.

40

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

5шт.

41

495-21106

WASHER,1"

2шт.

42

425-106

NUT,3/8"-16, Cl 5

5шт.

Selector Valve Items (P0466083)

1шт.

44

25401000

VALVE

Selector

1шт.

45

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

4шт.

46

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

47

14891672

PIN

1 x 9

2шт.
