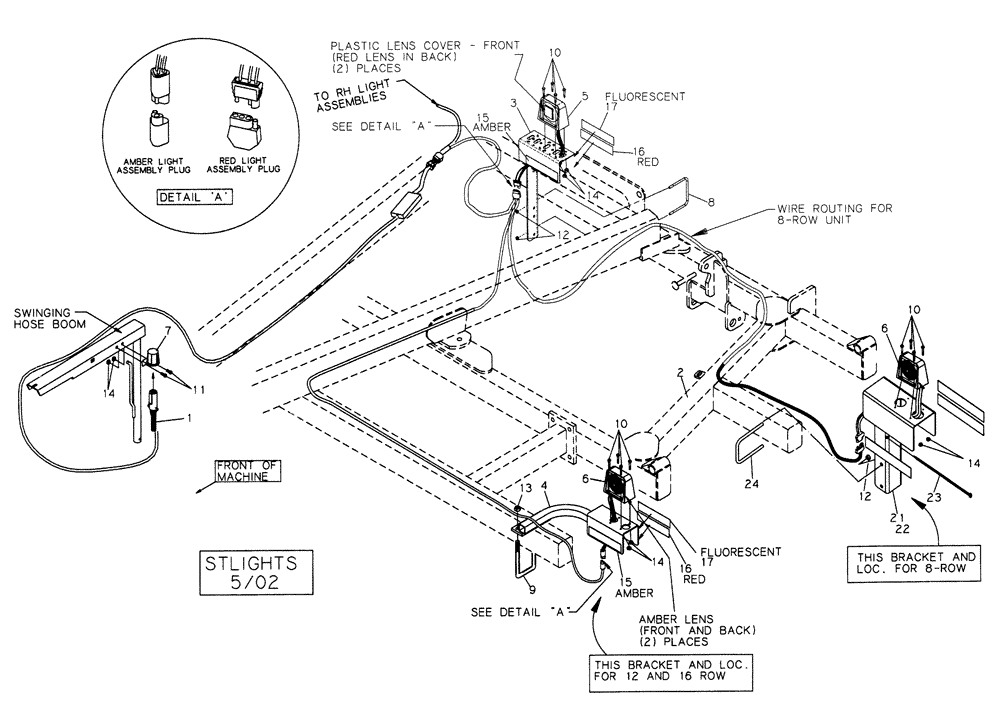

Запчасти Case IH 5310 (55.404.01) - WARNING AND TAILLIGHT KIT (04) - ELECTRICAL SYSTEMS

1

87446670

WIRE HARNESS

Front

1шт.

2

27602234

HARNESS

Rear Wiring

1шт.

3

87394288

BRACKET

Light Long, LH

1шт.

3

87394290

BRACKET

Light Long, RH

1шт.

4

04681730

BRACKET

Light RH

1шт.

4

04681740

BRACKET

Light LH

1шт.

5

27602202

LIGHT ASSY.

Red Fixture

2шт.

6

27602201

LIGHT ASSY.

Amber Fixture

2шт.

7

27601214

HOLDER

Seven Pin

1шт.

8

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6"

2шт.

9

87427170

U-BOLT

BOLT "U" 5/8" x 4" x 8"

9шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

86992213

NUT

3/8"

4шт.

13

85700693

NUT,5/8" - 11, Gr C

4шт.

14

86992211

NUT

1/4"

18шт.

15

311864A1

REFLECTOR

Yellow

4шт.

16

311863A1

REFLECTOR

Red

4шт.

17

311865A1

REFLECTOR

Flourescent Strip

4шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP (Not Shown)

1шт.

19

27601215

LENS

Amber (Not Shown)

1шт.

20

27601216

LENS

Red (Not Shown)

1шт.

21

27602415

BRACKET

RH

1шт.

22

27602410

BRACKET

LH

1шт.

23

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP

1шт.

24

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4"

2шт.

10

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.
