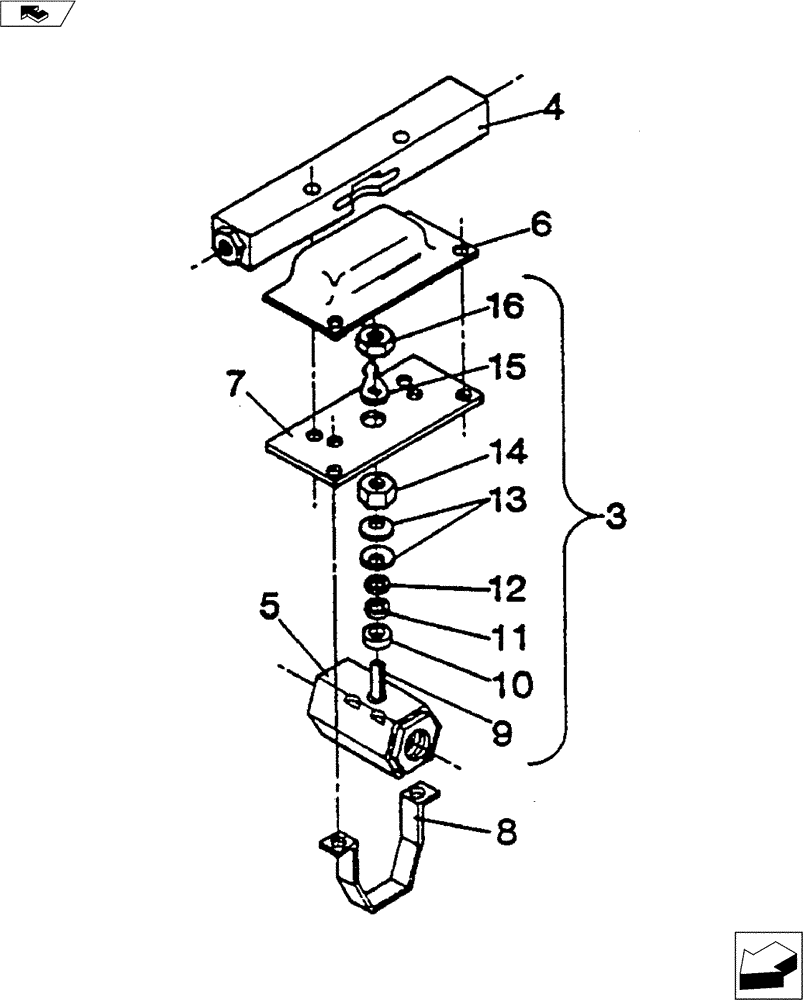

Запчасти Case IH 5310 (35.106.02) - 1-1/4 GROMO III SHUT-OFF (75) - SOIL PREPARATION

1

34210300

1-1/4" III Shut-off, Includes Ref 4 - 16

1шт.

2

34210301

KIT

Seal

1шт.

3

34210302

STEM

Kit, Includes Ref 9 - 16

1шт.

4

34210303

Assy.

1шт.

5

34210304

Assy.

1шт.

6

NSS

NOT SOLD SEPARAT

Cover

1шт.

7

NSS

NOT SOLD SEPARAT

Mounting Plate

1шт.

8

NSS

NOT SOLD SEPARAT

Strap

1шт.

9

NSS

NOT SOLD SEPARAT

Stem

1шт.

10

NSS

NOT SOLD SEPARAT

Thrust Washer

1шт.

11

NSS

NOT SOLD SEPARAT

Top Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Follower Washer

1шт.

13

NSS

NOT SOLD SEPARAT

Belleville Washer

2шт.

14

NSS

NOT SOLD SEPARAT

Stem Nut

1шт.

15

NSS

NOT SOLD SEPARAT

Cam Arm

1шт.

16

NSS

NOT SOLD SEPARAT

Jam Nut

1шт.
