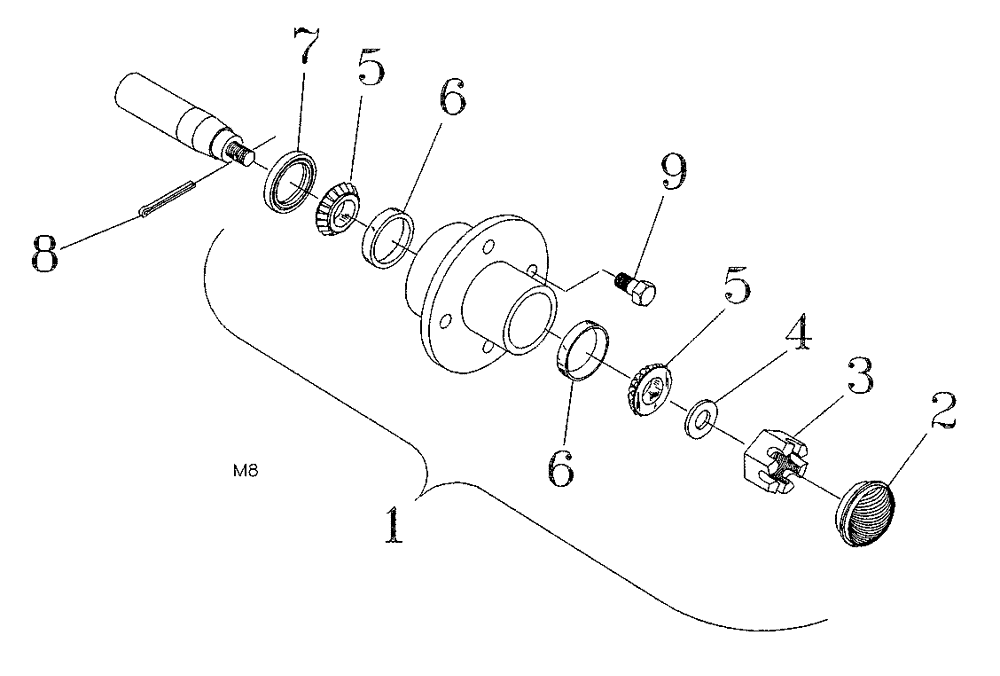

Запчасти Case IH 5310 (75.200.13) - ROW MARKDER DISC HUB (09) - CHASSIS/ATTACHMENTS

1

04670500

BAR ASSY.

W440B Hub And Spindle, Complete

1шт.

1

28144001

HUB ASSY.

W440B, Inc. 2, And 5 - 7

1шт.

2

28444000

CAP

W440 Hub

1шт.

3

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

4

87381

WASHER,0.81" ID x 1.47" OD x 0.13" Thk

1шт.

5

463911R91

ROLLER BEARING,1" ID x 0.58"

1 Bore, L44643

2шт.

6

572564R1

BEARING CUP

1.980 OD, L44610

2шт.

7

21931275

SEAL

1.250 ID x 1.983 OD, CR12437

2шт.

8

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

9

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

4шт.
