Запчасти Case IH 5310 (75.200.12) - DOUBLE FOLD ROW MARKER (09) - CHASSIS/ATTACHMENTS

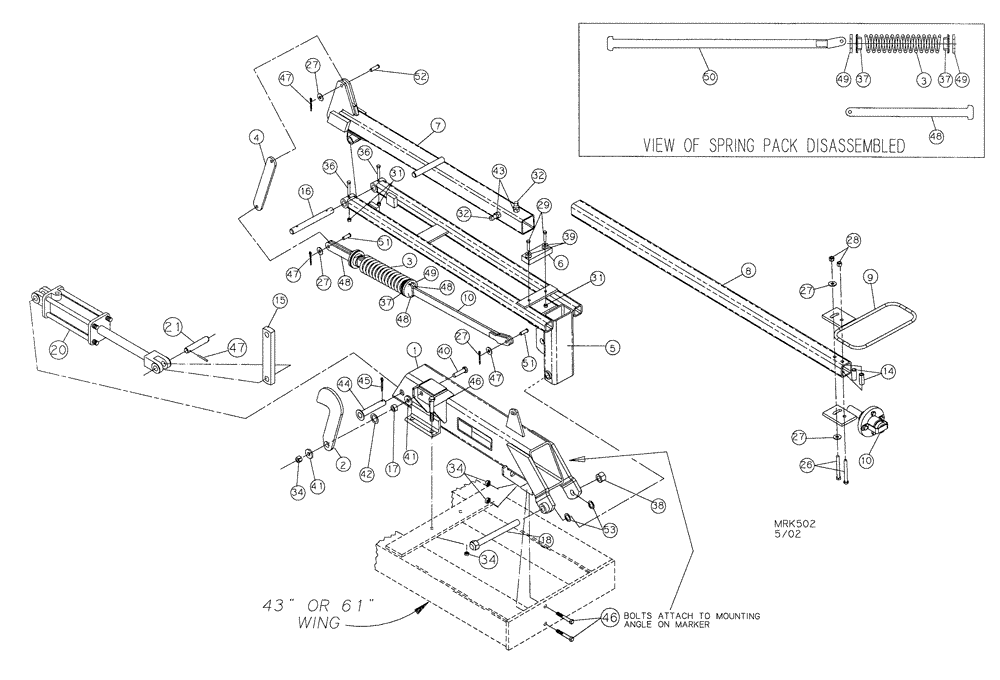

Схема запчастей Case IH 5310 - (75.200.12) - DOUBLE FOLD ROW MARKER (09) - CHASSIS/ATTACHMENTS
27
47
14
31
3
52
10
49
34
32
37
26
7
53
6
47
47
9
34
50
4
5
51
17
27
40
43
28
36
34
27
48
10
45
38
2
27
37
36
51
46
8
48
46
48
31
42
48
41
39
44
1
49
15
37
20
21
16
41
29
3
27
32
18
47
49

Артикул

Название

Примечание

Количество

1

09667410

BRACKET

Marker Mount, Double Fold, Lh

1шт.

1

09667510

BRACKET

Marker Mount, Double Fold, Rh

1шт.

2

09667212

BAR ASSY.

Latch, Rh

1шт.

2

09667211

BAR ASSY.

Latch, Lh

1шт.

3

24143891

COIL SPRING

Compression

1шт.

4

09667270

LINK/SHACKLE

Link, Swing

1шт.

5

09667230

ARM ASSY.

Inner, Small

1шт.

5

09667340

ARM ASSY.

Inner, Large

1шт.

6

04670230

SPACER

Rubber Pad

1шт.

7

09667240

ARM ASSY.

Outer, Rh, Small

1шт.

7

09667245

ARM ASSY.

Outer, Lh, Small

1шт.

7

09667315

BAR

Outer, Lh, Large

1шт.

7

09667310

ARM ASSY.

Outer, Rh, Large

1шт.

8

09667250

ARM ASSY.

Extension

1шт.

9

04670520

BAR ASSY.

Blade Guard

1шт.

10

04670500

BAR ASSY.

Disc Hub

1шт.

11

09662450

BRACKET

Marker Blade, Shield

1шт.

12

443623A1

PLOW DISC

HPT BLADES 13" PLAIN 2.5 MM

1шт.

13

04670510

CAP

Retainer

1шт.

14

09667260

ARM ASSY.

Extension Tube

2шт.

15

04670210

SPINDLE

Link

1шт.

16

14891668

SPECIAL PIN

1 OD x 8.38

1шт.

17

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Black

1шт.

18

14891640

PIN

1 x 10.00, Welded

1шт.

19

32437560

JAW

Eye Turnbuckle

1шт.

20

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16

1шт.

21

25890100

KIT

1, Cylinder Bag

1шт.

22

18534227

DANGER DECAL

Danger

1шт.

23

18534275

DANGER DECAL

Danger, OH Power

1шт.

25

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

4шт.

26

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

27

495-21056

WASHER,1/2"

2шт.

28

86992215

LOCK NUT,1/2"-13, GC

Stover

4шт.

29

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

30

495-21044

WASHER,3/8"

2шт.

31

86992213

NUT

3/8, NC, Stover, gd 5

4шт.

32

16810064

SET SCREW

5/8 x 1-1/2, Square Head, gd 8

2шт.

33

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

34

85700693

NUT,5/8" - 11, Gr C

7шт.

35

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

36

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

37

20090111

SPRING BOX

Spring Casting

4шт.

38

86992219

LOCK NUT

1, NC, Stover

4шт.

39

495-21044

WASHER,3/8"

1шт.

40

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

41

495-81028

WASHER,21/32" x 1 1/2" x .240"

1шт.

42

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, Machined

1шт.

43

425-1410

JAM NUT,Jam, 5/8"-11, G5

1шт.

44

14816426

CLEVIS

1 x 5-1/4, Pin

1шт.

45

432-1632

COTTER PIN,1/4" x 2"

1шт.

46

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

4шт.

47

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

48

04673450

CASTING

Spring

2шт.

49

04673480

STOP

Stop

2шт.

50

09667110

LINK

Long, Conn. Weld

1шт.

51

14808121

PIN

1/2 x 1-1/2, Clevis

2шт.

52

14808141

PIN

1/2 x 1-3/4, Clevis

1шт.

53

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1, Machine, 14 ga

2шт.

Выбрано товаров: 58
