Запчасти Case IH 5310 (75.200.07) - 18 INCH DISC SEALER - 1 X 2 INCH SHANK (09) - CHASSIS/ATTACHMENTS

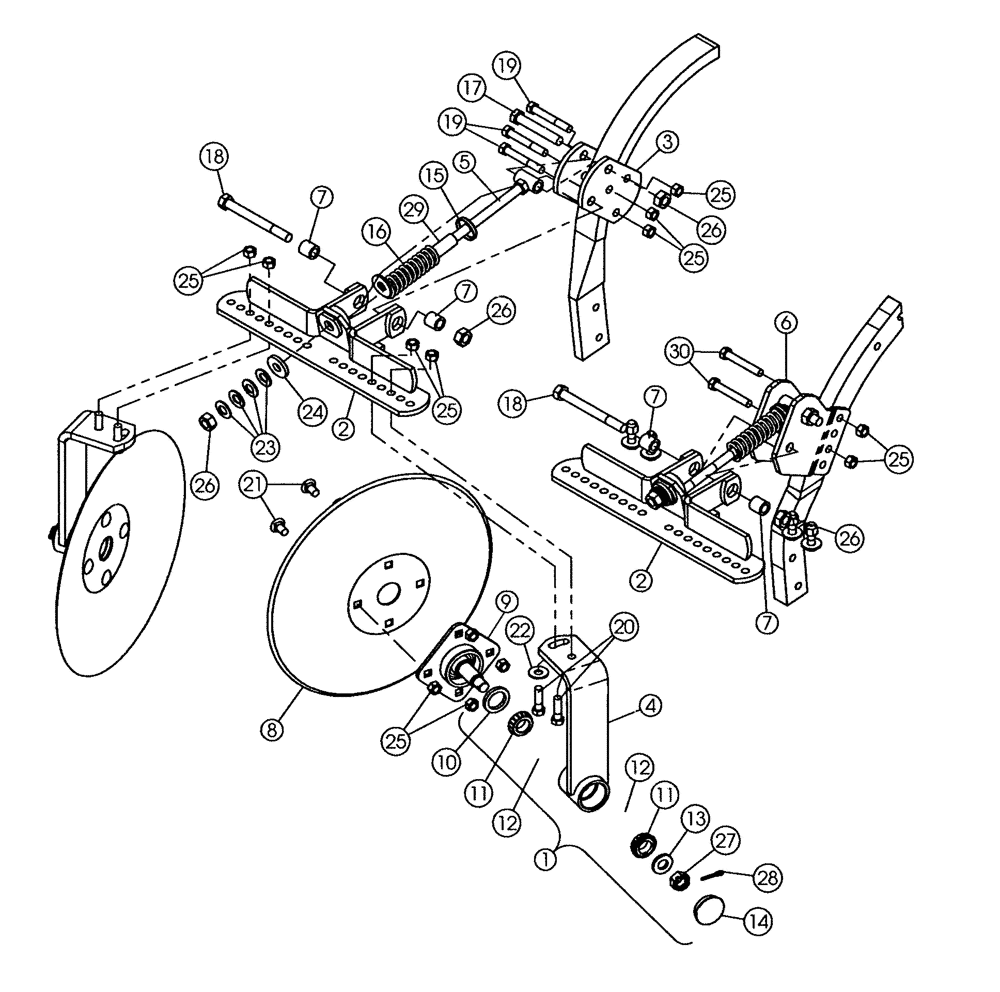

Схема запчастей Case IH 5310 - (75.200.07) - 18 INCH DISC SEALER - 1 X 2 INCH SHANK (09) - CHASSIS/ATTACHMENTS
26
25
2
1
18
13
25
17
25
27
10
2
16
22
2
19
20
26
2
7
25
21
6
28
9
19
15
8
7
18
29
3
1
12
6
11
23
25
5
24
25
14
7
4
25
30

Артикул

Название

Примечание

Количество

04693185

PLOW DISC

18", Spring, Dull

1шт.

04693175

PLOW DISC

18", Reverse Spring, Dull

1шт.

1

02337230

ARM ASSY.

Sealer, Incldes Ref. 4, 9, 10, 11, 12, 13, 14, 27 & 28

2шт.

2

04693145

FRAME

Sealer H, Weldment

1шт.

3

04693195

MOUNTING PARTS

1" x 2", Sealer

1шт.

4

02337233

ARM

Sealer With Cups

2шт.

5

04693150

SPECIAL BOLT

T, Weldment

1шт.

6

04693190

PLOW DISC

18" Sealer 1x2

1шт.

7

44006204

BUSHING,16.26mm ID x 25.4mm OD x 25.4mm L

2шт.

8

84380555

DISK HARROW

HPT BLADES 18" PLAIN 3.0 MM

2шт.

9

09103120

DISC

Spindle Weld

2шт.

10

21931375

SEAL

1.37"

2шт.

11

463911R91

ROLLER BEARING,1" ID x 0.58"

1.00" Bore, Timken #L44643

4шт.

12

572564R1

BEARING CUP

1.980" Timken #L44610

4шт.

13

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4" ID, Heat Treated

2шт.

14

28420021

CAP

Grease

2шт.

15

17506020

CUP WASHER,16.66mm ID x 44.45mm OD x 1.52mm Thk

0.656" ID

1шт.

16

24120702

COMPRESSION SPRING

1шт.

17

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

1шт.

18

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

1шт.

19

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

3шт.

20

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

21

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

8шт.

22

495-21056

WASHER,1/2"

2шт.

23

17511000

BELLEVILLE WASHER

11/16"

4шт.

24

495-81028

WASHER,21/32" x 1 1/2" x .240"

1шт.

25

86992215

LOCK NUT,1/2"-13, GC

15шт.

26

85700693

NUT,5/8" - 11, Gr C

3шт.

27

425-1312

SLOTTED NUT,3/4"-16, G5

2шт.

28

432-816

COTTER PIN,1/8" x 1"

2шт.

29

04693158

TUBE

1шт.

Выбрано товаров: 31
