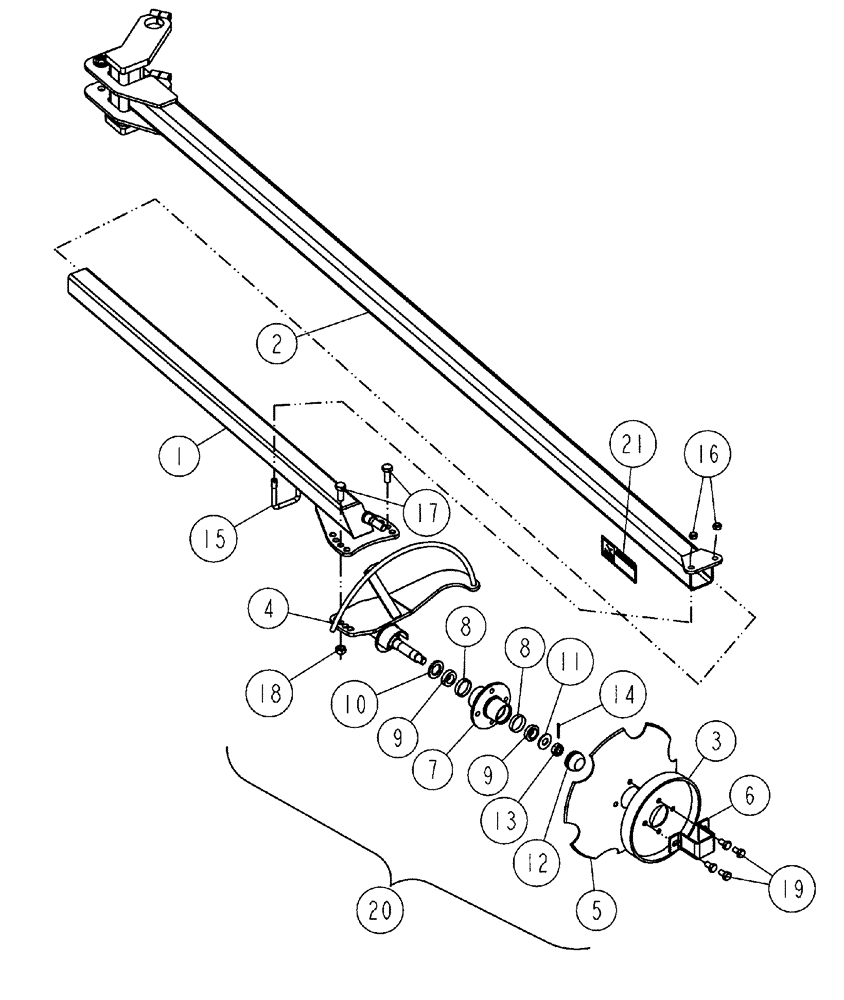

Запчасти Case IH 5310 (44.100.08) - MARKER - HUB ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

TM-163V2

EXTENSION

Arm Weldment

1шт.

2

TM-101

BOOM

Swing Weldment, 16 Row Units

1шт.

2

TM-121

BOOM

Swing Weldment, 12 Row Units

1шт.

3

09662450

BRACKET

Marker Blade Shield Weldment

1шт.

4

TM-206

GUARD

Disk Protector Weldment, LH

1шт.

4

TM-207

GUARD

Disk Protector Weldment, RH

1шт.

5

9520

NOTCHED DISK

Blade, 16" Dia. Notched

1шт.

6

TM-916

GUARD

Hub Cap Protector

1шт.

7

23515

HUB

H211, Disk With Cups

1шт.

8

1581

BEARING CUP

H211, Hub

2шт.

9

1582

ROLLER BEARING

H211, Hub

2шт.

10

1583

SEAL

H211, Hub

1шт.

11

1586

WASHER

Spindkle, H211 Hub

1шт.

12

23428

HUB CAP

H211 Hub

1шт.

13

1589

SLOTTED NUT,3/4"-16, G2

1шт.

14

2039

LAMP,5/32" x 1 1/4"

SPARE PART

1шт.

15

2913

U-BOLT

1/2" x 2-1/2" x 3-1/2"

1шт.

16

86992215

LOCK NUT,1/2"-13, GC

2шт.

17

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

18

85700693

NUT,5/8" - 11, Gr C

2шт.

19

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

4шт.

20

TM-206A

GUARD

Disk Protector Assy. LH

1шт.

20

TM-207A

GUARD

Disk Protector Assy. RH

1шт.

21

18534389

DECAL

Warning Sign," Strike Hazard

1шт.

6211

WHEEL BEARING KIT

Hub Bearing, Not Shown

1шт.
