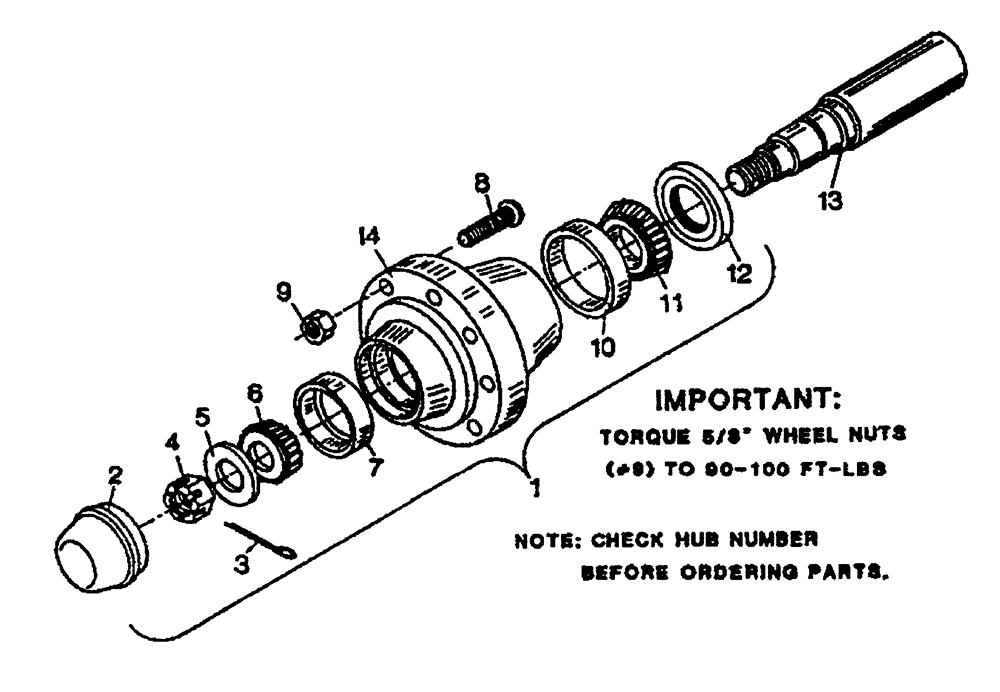

Запчасти Case IH 5310 (44.100.05) - 50-8 8 BOLT HUB AND SPINDLE (09) - CHASSIS/ATTACHMENTS

28050885

STUB AXLE/STEERING S

50-8 Hub And Spindle, Less #9

1шт.

1

28150800

HUB ASSY.

50-8, 8 Bolt Hub And Spindle Less #9

1шт.

2

560950R1

HUB CAP

1шт.

3

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

4

425-1316

NUT,1"-14, G5

1шт.

5

17916100

WASHER

1" SAE

1шт.

6

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62", Bore - Timken #LM501349

1шт.

7

663558R1

BEARING CUP

2.89" OD, Timken LM501310

1шт.

8

366021R2

BOLT,Round, 5/8" - 18 x 2 1/4"

5/8" x 2-1/4", NF Wheel

8шт.

9

554480R1

WHEEL NUT

5/8", NF Wheel

8шт.

10

376463C1

BEARING CUP

3.22" OD, Timken #JLM104910

1шт.

11

21872005

ROLLER BEARING,50 mm ID

2.00" OD,Bore - Timken #LM104948

1шт.

12

21932502

SEAL

2.50" ID x 3.25", OD - CR24909

1шт.

13

28350805

STUB AXLE/STEERING S

1шт.

14

28250800

HUB ASSY.

Hub With Cups, Includes Ref. 7, 8 & 10

1шт.
