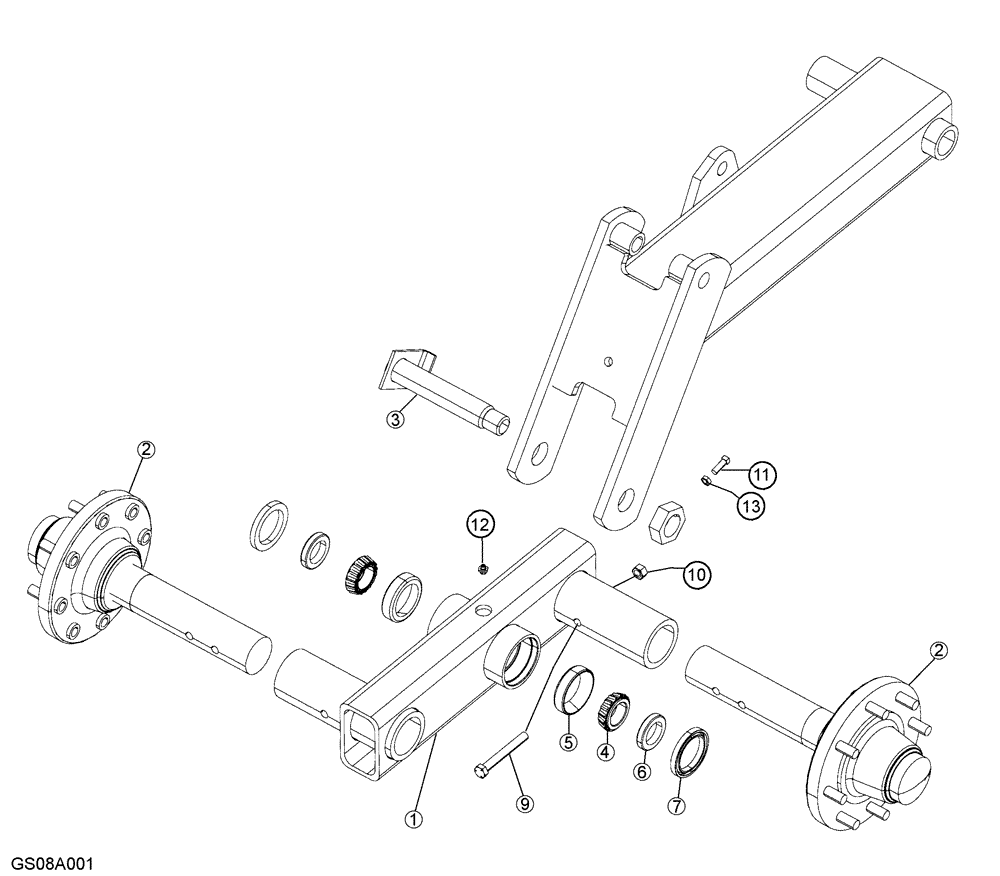

Запчасти Case IH 5310 (44.100.01) - MAIN FRAME WALKING AXLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

04683045

AXLE

Walking Axle, RH

1шт.

1

04683145

AXLE

Walking Axle, LH

1шт.

2

28050885

STUB AXLE/STEERING S

50-8 Hub And Spindle

2шт.

3

04683050

AXLE PIN

Axle

1шт.

4

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50, Timken #2776

2шт.

5

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.00, OD, Timken #2720

2шт.

6

06400573

SPACER

2шт.

7

21932510

SEAL

3.148, CR #22870

2шт.

8

14032409

NUT

1-1/2, Jam

1шт.

9

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

10

87333862

NUT

2шт.

11

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8 x 1, Square Head

1шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.
