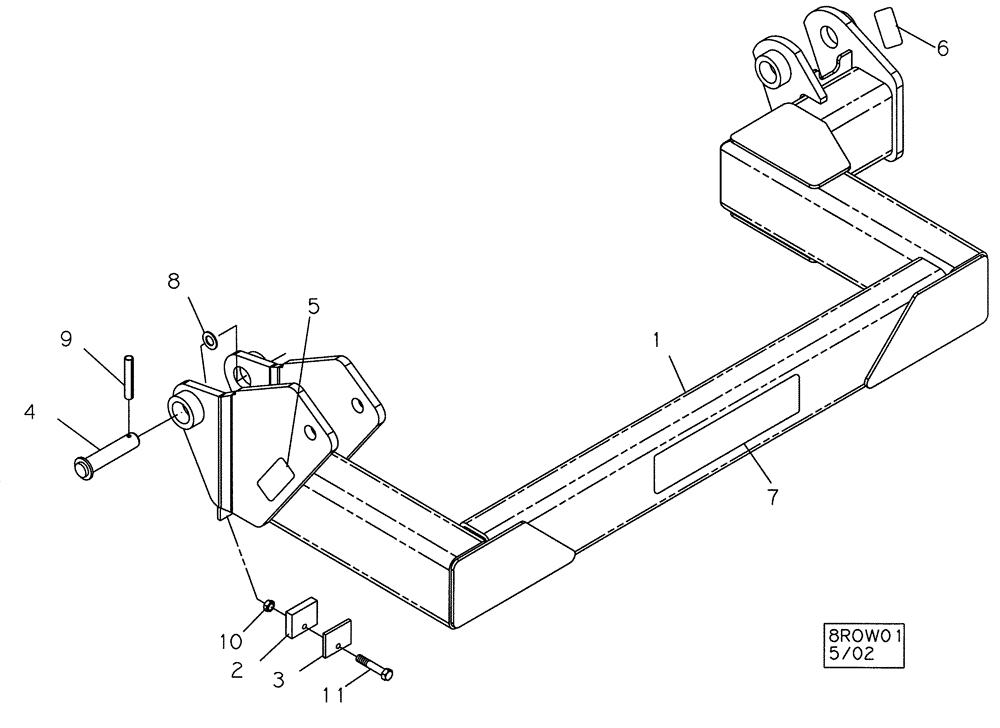

Запчасти Case IH 5310 (39.100.02) - WING PARTS - 8 ROW UNITS ONLY (09) - CHASSIS/ATTACHMENTS

1

87339574

MOUNTING PARTS

8 Row, Strip Till, Lh Shown

1шт.

1

87339557

MOUNTING PARTS

8 Row, Strio Till, Rh

1шт.

2

04626130

SHIM

1/8

4шт.

3

04626120

SHIM

1/16

1шт.

4

14820650

HITCH PIN,41.27mm OD x 233.68mm L

1-5/8

4шт.

5

18534243

REFLECTOR

Amber

2шт.

6

18534244

REFLECTOR

Red

2шт.

7

18534425

DECAL

5310

2шт.

8

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8 x 14 Gauge, Machine

2шт.

9

438-32840

PIN,11.1mm OD x 63.5mm L

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

4шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.
