Запчасти Case IH 5310 (39.100.01) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS

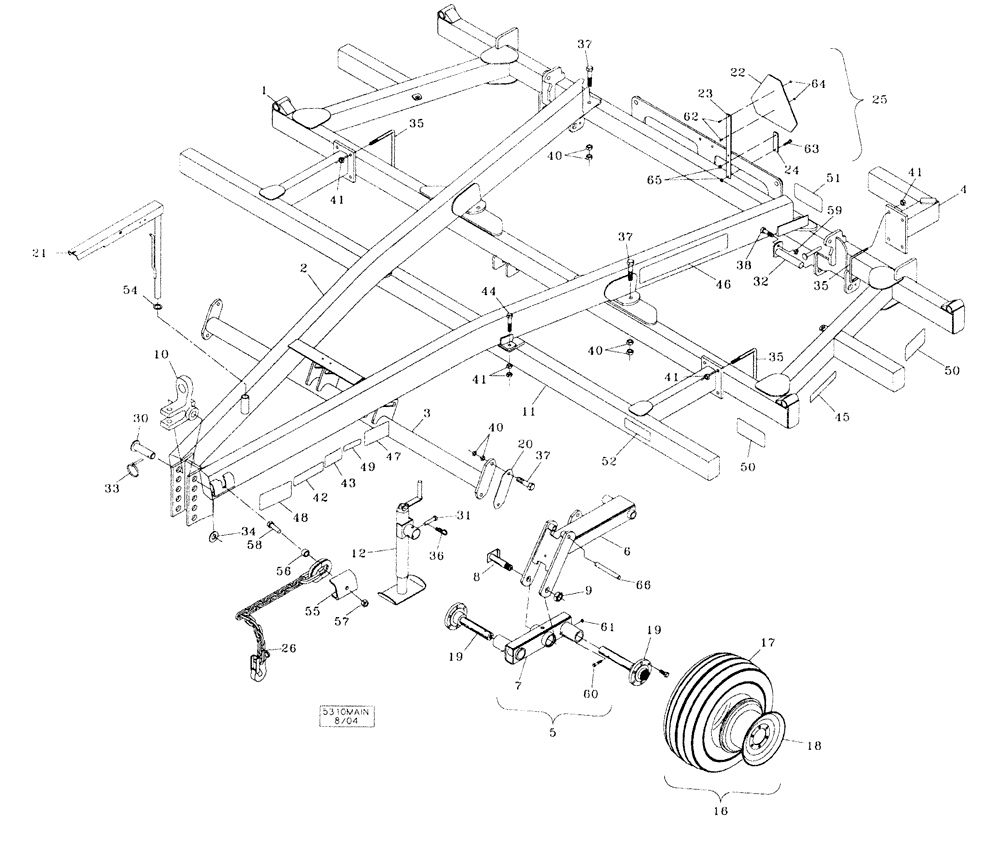

Схема запчастей Case IH 5310 - (39.100.01) - MAIN FRAME (09) - CHASSIS/ATTACHMENTS
37
35
66
24
44
10
37
20
42
8
45
6
40
35
54
34
40
62
9
60
23
32
50
64
18
33
30
26
41
3
11
2
65
4
46
19
61
47
50
31
17
36
16
59
55
40
56
5
51
43
12
19
37
41
25
38
49
41
52
48
7
41
35
1
63
22
58

Артикул

Название

Примечание

Количество

1

87554292

FRAME

Main

1шт.

2

87340594

FRAME ASSY

Pull

1шт.

3

87552168

TUBE,101.6 mm OD x 2339.9 mm L

Torque, 92.12" Long

1шт.

4

87339611

FRAME ASSY

Offset

4шт.

5

04683000

AXLE

Main Tandem Assembly RH, Includes Ref. 6,7,8,& 9

1шт.

5

04683100

AXLE

Main Tandem Assembly LH, Includes Ref. 6,7,8,& 9

1шт.

6

04683030

AXLE

Main Arm, RH

1шт.

6

04683130

AXLE

Main Arm, LH

1шт.

7

04683040

AXLE

Walking Weld, RH

1шт.

7

04683140

AXLE

Walking Weld, LH

1шт.

8

04683050

AXLE PIN

2шт.

9

14032408

JAM NUT

1-1/2", Jam With Set Screw

2шт.

10

20092310

CLEVIS

Combination

1шт.

11

87340631

BAR

Coulter, Front

1шт.

12

87416370

JACK,40.1 mm L

5-7K, Swivel

1шт.

16

10010286

WHEEL ASSY.

12.5 x 15 FI (F), 12 And 16 Row Units

4шт.

16

10010250

LAND WHEEL

11L x 15 SL, 8 Row Units

4шт.

17

NSS

NOT SOLD SEPARAT

12.5 x 15 (F), 12 And 16 Row Units

4шт.

17

NSS

NOT SOLD SEPARAT

11L x 15 SL, 8 Ply, 8 Row Units

4шт.

18

10110274

WHEEL

10 x 15, 8 Hole, 12 And 16 Row Units

4шт.

18

10108254

WHEEL

8 x 15, 6 Hole, 8 Row Units

4шт.

19

28050885

STUB AXLE/STEERING S

50-8 Hub And, 12 And 16 Row Units

4шт.

19

28078361

HUB ASSY.

783 Hub And Spindle, 8 Row Units

4шт.

20

04661154

SHIM

2шт.

21

05302150

STAND

Hose And Gauge

1шт.

22

311860A1

EMBLEM

SMV

1шт.

23

06000099

BRACE

SMV Mount

1шт.

24

04660050

BRACE

Plate

1шт.

25

18584200

KIT

SMV, Includes Ref. 22, 23, 24, 62, 63, 64 & 65

1шт.

26

87389757

CHAIN

30,400 Lbf, ASAE Safety

1шт.

30

14820525

HITCH PIN,41.28mm OD x 204.72mm L

1-5/8", OD

1шт.

31

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8", Clevis

1шт.

32

14820920

PIN,41.27mm OD x 307.85mm L

1-5/8" OD

2шт.

33

D33805

PIN

7/16" x 2", Klik

1шт.

34

17426001

WASHER

1-5/8"

1шт.

35

87427186

U-BOLT

BOLT "U" 3/4" x 6.18"

12шт.

36

14720411

COTTER PIN

PIN, COTTER 1/8" x 2"

1шт.

37

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

10шт.

38

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

40

425-1014

NUT,7/8"-9, G5

20шт.

41

425-1012

NUT,3/4"-10, G5

24шт.

42

18534348

DECAL

Warning, Towing Hazard

1шт.

43

18534282

WARNING DECAL

1шт.

44

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

45

311864A1

REFLECTOR

Yellow Strip

2шт.

46

18534276

DECAL

Nutri-Till'r

2шт.

47

18534107

DECAL

Patent

1шт.

48

18534228

DECAL

Caution

1шт.

49

18534174

DECAL

Other Patents Applied For

1шт.

50

18534227

DANGER DECAL

4шт.

51

18534277

DECAL

Warning, Spring Compression

1шт.

52

18534284

WARNING SIGN

Danger, OHP Marker

1шт.

54

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4, Machine

1шт.

55

04681210

BRACKET

1шт.

56

04681211

BUSHING

Spacer

1шт.

58

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1шт.

59

425-1010

NUT,5/8"-11, G5

4шт.

60

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

61

87333862

NUT

4шт.

62

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

63

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

64

86992211

NUT

1/4

2шт.

65

231-4246

LOCK NUT,3/8"-16, GB

2шт.

66

14891672

PIN

1 x 9

2шт.

Выбрано товаров: 64
