(35.100.06) - 2-1/2 X 12 HYDRAULIC CYLINDER 12 AND 16 ROW MARKER HYDRAULICS

Запчасти Case IH 5310 (35.100.06) - 2-1/2 X 12 HYDRAULIC CYLINDER 12 AND 16 ROW MARKER HYDRAULICS (08) - HYDRAULICS

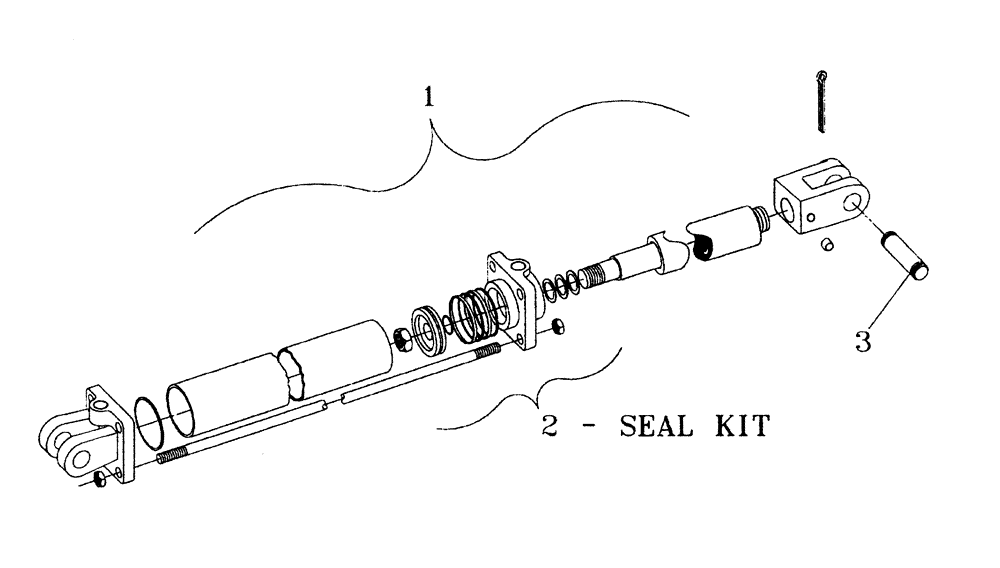

Схема запчастей Case IH 5310 - (35.100.06) - 2-1/2 X 12 HYDRAULIC CYLINDER 12 AND 16 ROW MARKER HYDRAULICS (08) - HYDRAULICS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25325120

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 304.8mm Stroke

2-1/2: x 12"

1шт.

2

25832510

SEAL KIT

1шт.

3

408043A1

SPECIAL PIN

1", Cylinder Bag

1шт.

Выбрано товаров: 3
