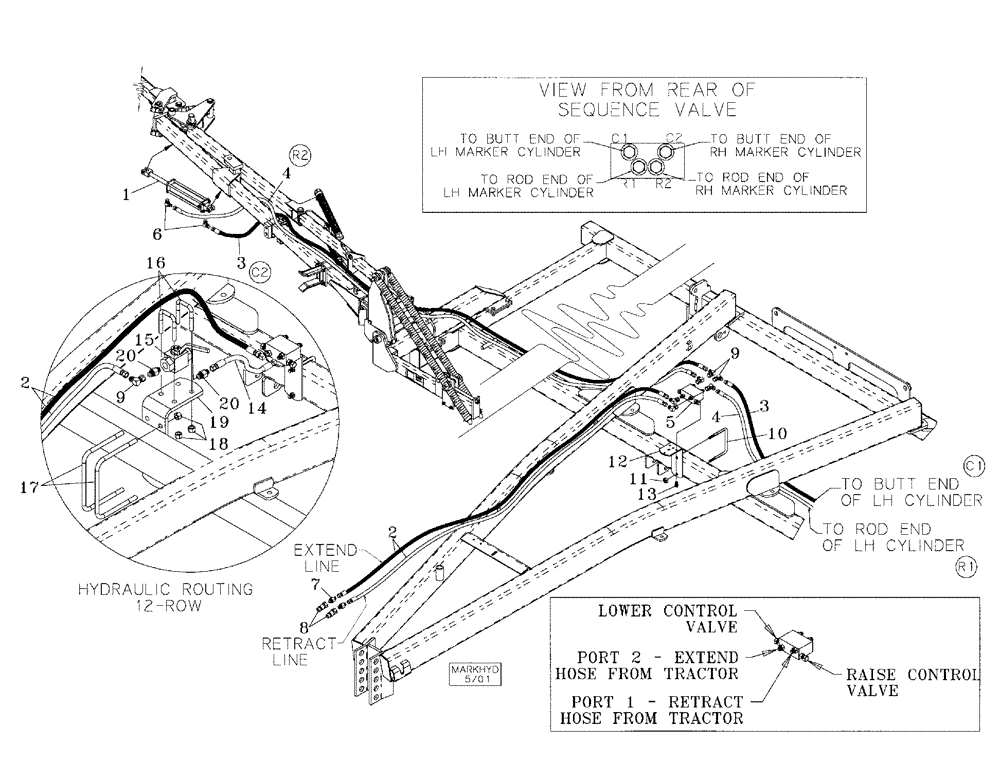

Запчасти Case IH 5310 (35.100.05) - ROW MARKER HYDRAULICS 12 AND 16 ROW (08) - HYDRAULICS

1

25325120

HYDRAULIC CYLINDER,Double Acting, 28.57mm Rod, 304.8mm Stroke

2-1/2" x 12" 3,000 PSI

2шт.

2

25600439

HYDRAULIC HOSE,0.25" ID x 212.00", SAE 100R17

Long

2шт.

3

1284318C1

HOSE

1/4" x 265" Long, 12 Row Only

2шт.

3

435666A1

HOSE ASSY.

1/4 x 355,16 Row Only

2шт.

4

189348A1

HYDRAULIC HOSE,6.40mm ID x 7110mm L

1/4" x 280" Long, 12 Row Only

2шт.

4

435667A1

HOSE ASSY.

1/4" x 370", 16 Row Only

2шт.

5

25405620

VALVE

Sequence Marker

1шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

4шт.

7

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

2шт.

8

25705041

COUPLING

3/4" SAEF ISO, Male

2шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

6шт.

10

87427168

U-BOLT

5/8" x 6" x 5-1/2"

1шт.

11

85700693

NUT,5/8" - 11, Gr C

1шт.

12

04670050

BAR ASSY.

Valve Bracket

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

Long, 12 Row Only

1шт.

15

25402000

VALVE

1/4" Turn Ball, 12 Row Only

1шт.

16

16306018

U-BOLT

3/8" x 2-1/4", Stainless, 12 Row Only

2шт.

17

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6", 12 Row Only

2шт.

18

86992213

NUT

3/8", 12 Row Only

8шт.

19

04692223

BRACKET

Mounting, 12 Row Only

1шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

12 Row Only

2шт.
