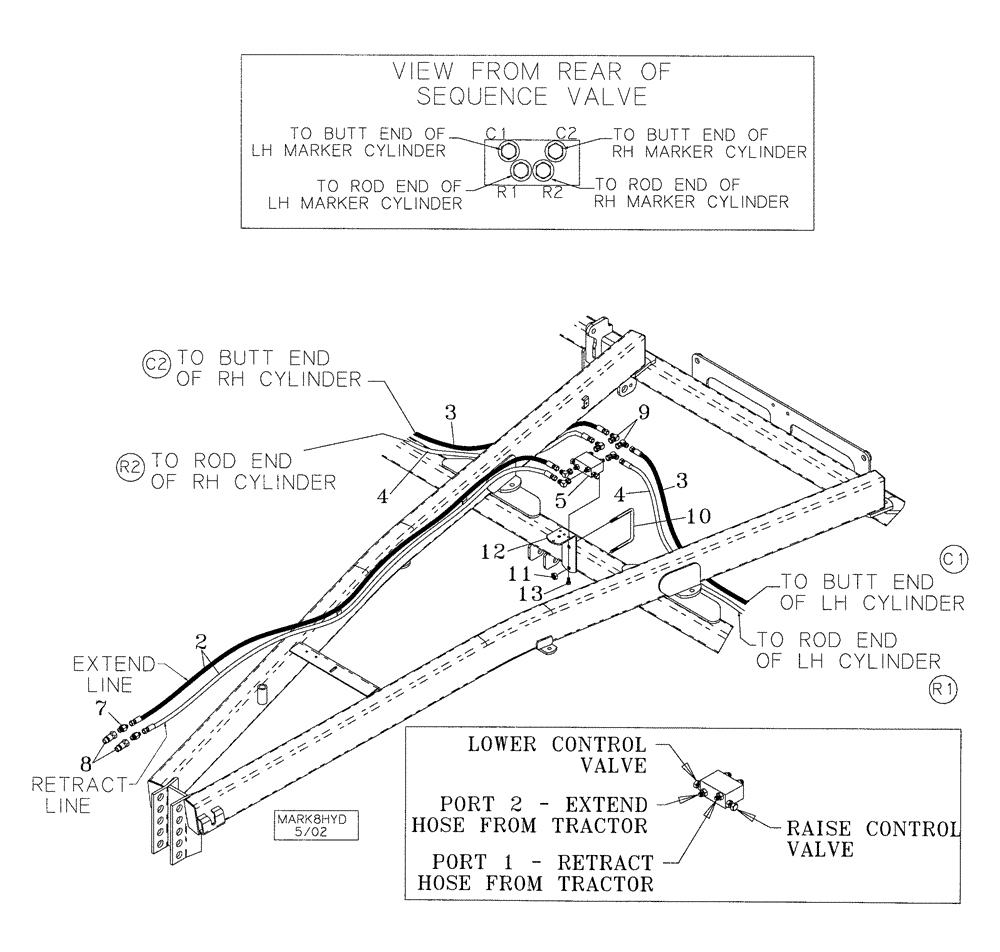

Запчасти Case IH 5310 (35.100.04) - ROW MARKER HYDRAULICS 8 ROW ONLY (08) - HYDRAULICS

2

25600425

HYDRAULIC HOSE,0.25" ID x 204.00", SAE 100R17

2шт.

3

25600410

HYDRAULIC HOSE,0.25" ID x 82.00", SAE 100R17

2шт.

4

1284366C1

HYDRAULIC HOSE

1/4 x 10

2шт.

5

25405620

VALVE

Sequence Marker

1шт.

7

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

2шт.

8

25705041

COUPLING

3/4 SAEF ISO, Male

2шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

6шт.

10

87427168

U-BOLT

5/8 x 6 x 5-1/2

1шт.

11

86992216

NUT

2шт.

12

04670050

BAR ASSY.

Valve

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.
