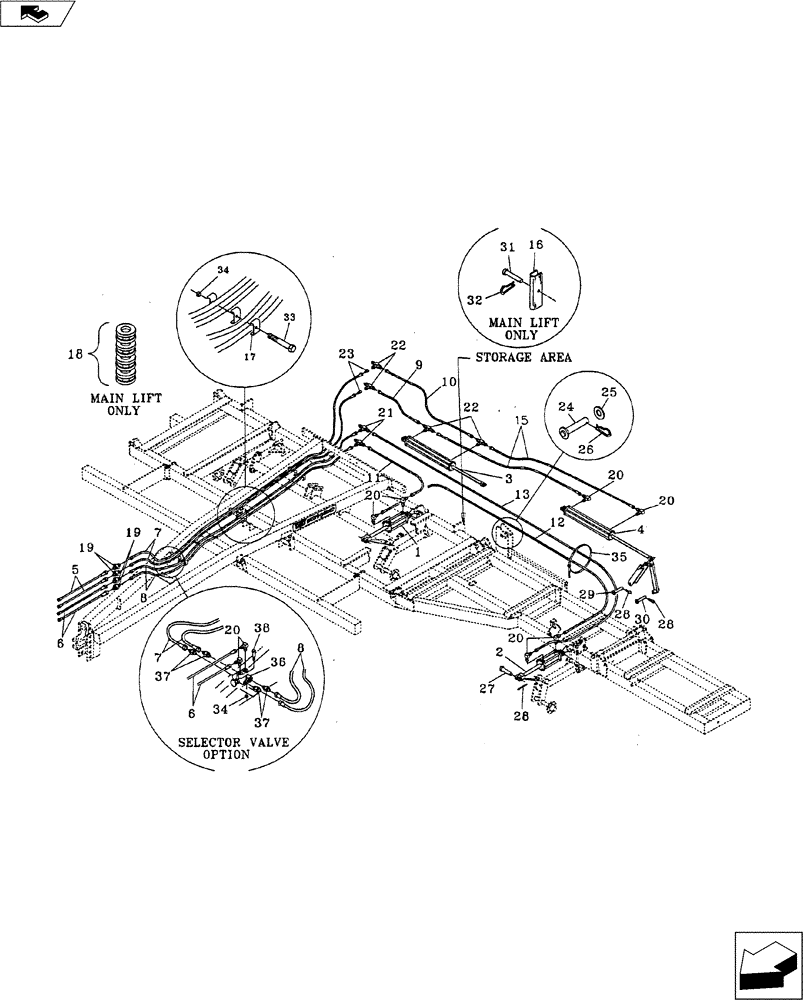

Запчасти Case IH 5250 (35.100.02) - 5250 HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25035101

3-1/2" x 10"

2шт.

2

25032101

HYDRAULIC CYLINDER

3-1/4" x 10"

2шт.

87394795R

REMAN-HYD CYLINDER

5250 Reman for New P/N 25032101

2шт.

87394795C

CORE-HYD CYLINDER

Return Number

1шт.

3

25040300

CYLINDER

4" x 30" Hyd.

2шт.

4

25030242

CYLINDER ASSY.

3" x 24" Hyd. 42-1/2"

2шт.

4

25035241

CYLINDER ASSY.

3-1/2" x 24" Hyd. 47-1/2" and 52-1/2"

2шт.

25335242R

REMAN-HYD CYLINDER

5250;Reman For New P/N 25035241

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

5

25600645

HOSE ASSY.

3/8" Hyd. x 80" Long

2шт.

6

25600855

HOSE ASSY.

1/2" Hyd. x 100" Long

2шт.

7

25600633

HYDRAULIC HOSE,0.38" ID x 165.00", SAE 100R17

2шт.

8

25600856

HOSE ASSY.

1/2" Hyd. x 165" Long

2шт.

9

25600634

HYDRAULIC HOSE,0.38" ID x 37.00", SAE 100R17

2шт.

10

25600662

HYDRAULIC HOSE,0.38" ID x 72.00", SAE 100R17

2шт.

11

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

2шт.

12

25600695

HYDRAULIC HOSE,0.38" ID x 220.00", SAE 100R17

2шт.

13

25600644

HOSE ASSY.

3/8" Hyd. x 233" Long

2шт.

15

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

4шт.

16

04632700

STAY

Cylinder 9-3/4" - 3 Holes

2шт.

17

06200125

HOSE CLAMP

10шт.

18

25800010

CYLINDER

Stroke Control Kit 1-1/4"

2шт.

19

25707501

HYD CONNECTOR

3/4" JICM

4шт.

20

25707521

ELBOW

3/4" JlCM x 3/4" SAEM 90°

8шт.

21

25707518

3 WAY CONNECTION

3/4" JICM

2шт.

22

25707522

3 WAY CONNECTION

3/4" JICM (2) x 3/4" SAEM

6шт.

23

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Throttle

2шт.

24

14816346

1" x 4-1/4"

2шт.

25

NSS

NOT SOLD SEPARAT

1 " Std. Washer

2шт.

26

NSS

NOT SOLD SEPARAT

3/16" x 3" Pin

2шт.

27

14816466

CLEVIS,44.45mm OD x 164.08mm L

1" x 5.81" EL Pin

2шт.

28

14700801

COTTER PIN

1/4" x 1-1/2"

10шт.

29

14816426

CLEVIS

1 " x 5-1/4" EL Pin

6шт.

30

14816355

SPECIAL PIN

1" x 4.31" EL Clevis

2шт.

31

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8" EL Clevis

2шт.

32

NSS

NOT SOLD SEPARAT

1/8" x 3" Hair Pin

2шт.

33

NSS

NOT SOLD SEPARAT

3/8" x 2-1/4" NC Hex. Bolt

5шт.

34

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

5шт.

35

30007032

CABLE TIE

CABLE STRAP 32"

14шт.

36

25401000

VALVE

Selector

1шт.

37

25707505

HYD CONNECTOR

3/4" SAEM x 3/4" JICM

4шт.

38

NSS

NOT SOLD SEPARAT

3/8" x 2-1/2" NC Hex. Bolt

2шт.

20

25707521

ELBOW

3/4" JICM

2шт.

34

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.
