(75.200.12) - HEAVY DUTY SPRING C-S MOUNT

Запчасти Case IH 5250 (75.200.12) - HEAVY DUTY SPRING C-S MOUNT (75) - SOIL PREPARATION

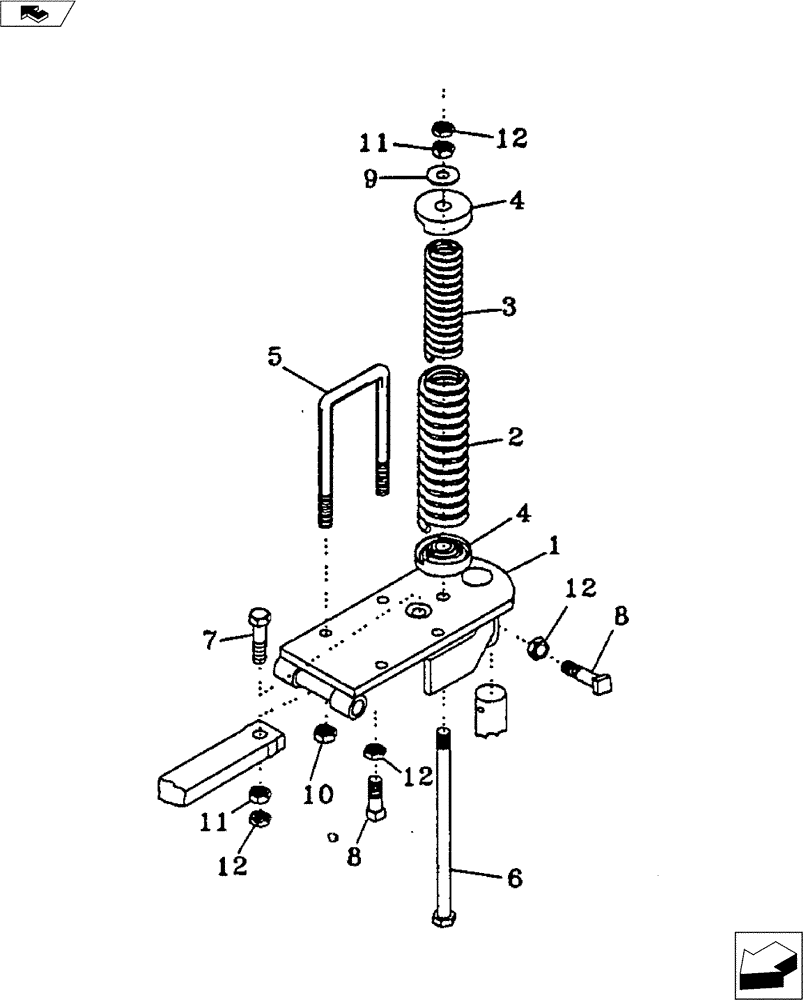

Схема запчастей Case IH 5250 - (75.200.12) - HEAVY DUTY SPRING C-S MOUNT (75) - SOIL PREPARATION
8
12
5
4
12
7
2
12
8
6
11
9
4
3
12
10
1
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

04665070

MOUNTING PARTS

H.D. Spring C-S 4" x 6" with Hardware (Not Shown)

1шт.

1

04665510

MOUNTING PARTS

C-S Spring

1шт.

2

24162504

COMPRESSION SPRING

4-1/16" O.D.

1шт.

3

24143812

COMPRESSION SPRING

2-1/2" O.D.

2шт.

4

20090120

SPRING BOX

Double Casting

2шт.

5

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

2шт.

5

16310050

U-BOLT

5/8" x 4" x 8"

2шт.

6

16901257

3/4" x 14-1/8" NC Hex.

1шт.

7

NSS

NOT SOLD SEPARAT

3/4" x 3" NC HHCS Gd. 5

1шт.

8

NSS

NOT SOLD SEPARAT

3/4" x 2" Sq. Hd. Set Screw

2шт.

9

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

4шт.

10

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

2шт.

11

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Jam Nut

4шт.

12

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Jam Nut

4шт.
