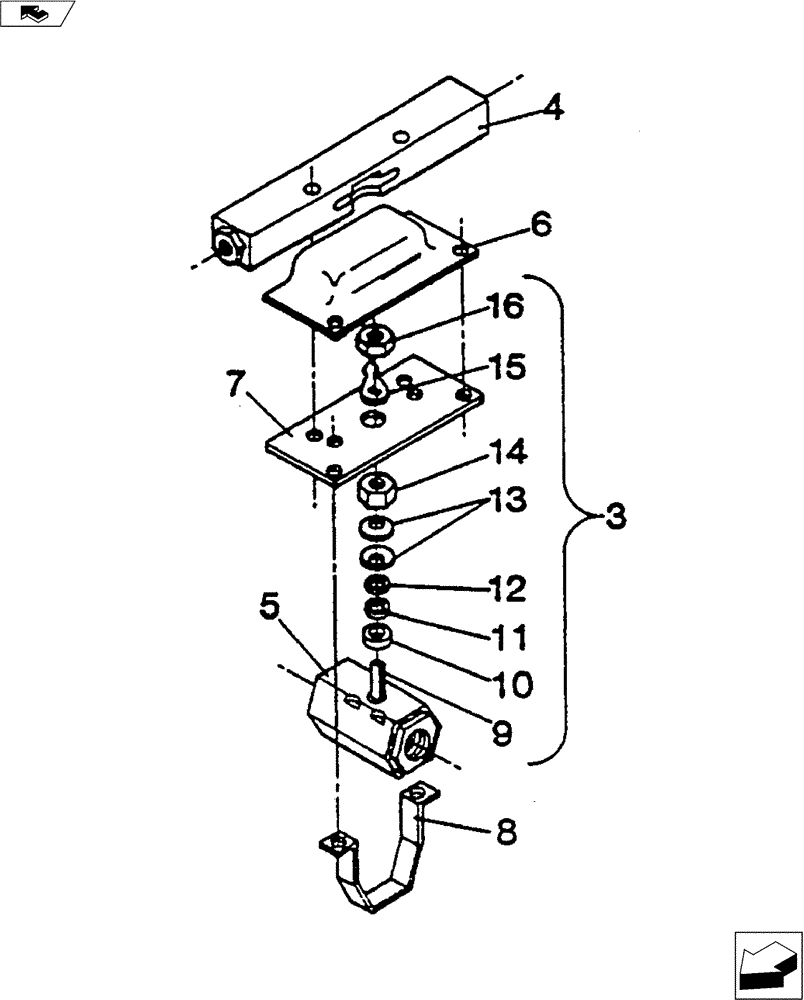

Запчасти Case IH 5250 (75.130.01) - 1-1/ GROMO III SHUT-OFF (75) - SOIL PREPARATION

1

34210300

1-1/4" Gromo lll, Includes Ref. 4-15 (Not Shown)

1шт.

2

34210301

KIT

Seal (Not Shown)

1шт.

3

34210302

STEM

Kit, Includes Ref. 9-16

1шт.

4

34210303

Actuator Assy.

1шт.

5

34210304

Ball Valve Assy.

1шт.

6

NSS

NOT SOLD SEPARAT

Cover

1шт.

7

NSS

NOT SOLD SEPARAT

Mounting Plate

1шт.

8

NSS

NOT SOLD SEPARAT

Strap

1шт.

9

NSS

NOT SOLD SEPARAT

Stem

1шт.

10

NSS

NOT SOLD SEPARAT

Thrust Washer

1шт.

11

NSS

NOT SOLD SEPARAT

Top Washer

1шт.

12

NSS

NOT SOLD SEPARAT

Follower Washer

1шт.

13

NSS

NOT SOLD SEPARAT

Belleville Washer

2шт.

14

NSS

NOT SOLD SEPARAT

Stem Nut

1шт.

15

NSS

NOT SOLD SEPARAT

Cam Arm

1шт.

16

NSS

NOT SOLD SEPARAT

Jam Nut

1шт.
