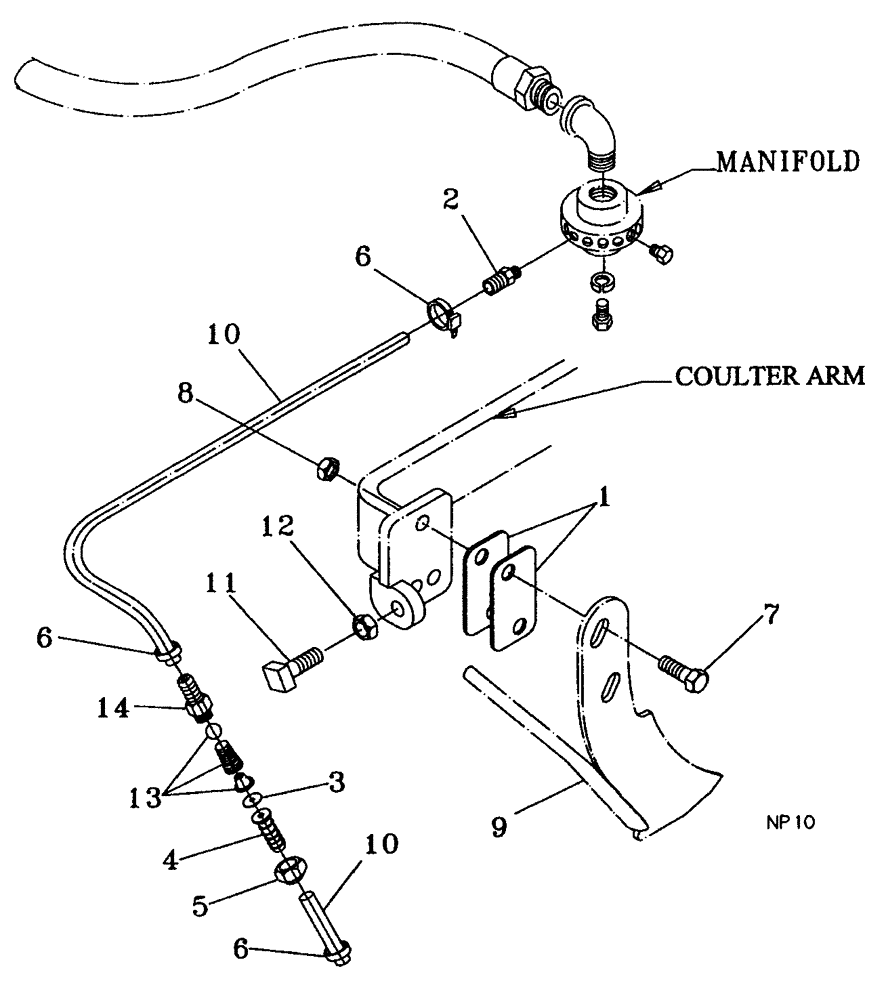

Запчасти Case IH 4300 (75.200.18) - COULTER KNIFE (09) - CHASSIS/ATTACHMENTS

P5280010

SERVICE KIT

Knife Hardware

1шт.

1

05310110

SHIM

16 Gauge

1шт.

2

05310120

SHIM

10 Gauge

1шт.

3

34600020

ORIFICE

51

1шт.

Supplied By Fertilizer Distributor

1шт.

3

34600021

ORIFICE

72

1шт.

Supplied By Fertilizer Distributor

1шт.

3

34600022

ORIFICE

98

1шт.

Supplied By Fertilizer Distributor

1шт.

3

34600023

ORIFICE

125

1шт.

Supplied By Fertilizer Distributor

1шт.

3

34600024

ORIFICE

86

1шт.

Supplied By Fertilizer Distributor

1шт.

4

34600007

PIPE FITTING

3/8 OD

1шт.

5

34600009

CAP

Nozzle

1шт.

Supplied By Fertilizer Distributor

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

7

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

NC

1шт.

8

425-1010

NUT,5/8"-11, G5

NC

1шт.

9

87437978

KNIFE

3/8 Tube

1шт.

10

25630601

HOSE

3/8 x 166

1шт.

11

16812084

SET SCREW,3/4" - 10 x 2"

3/4 x 2, Square Head

1шт.

12

425-1412

JAM NUT,Jam, 3/4"-10, G5

NC

1шт.

13

34600003

CHECK VALVE

1шт.

14

34600019

NOZZLE HOLDER

With Hose Barb

1шт.

Supplied By Fertilizer Distributor

1шт.

15

05310023

KIT

Check With Orifice Bag, (Not Shown)

1шт.
