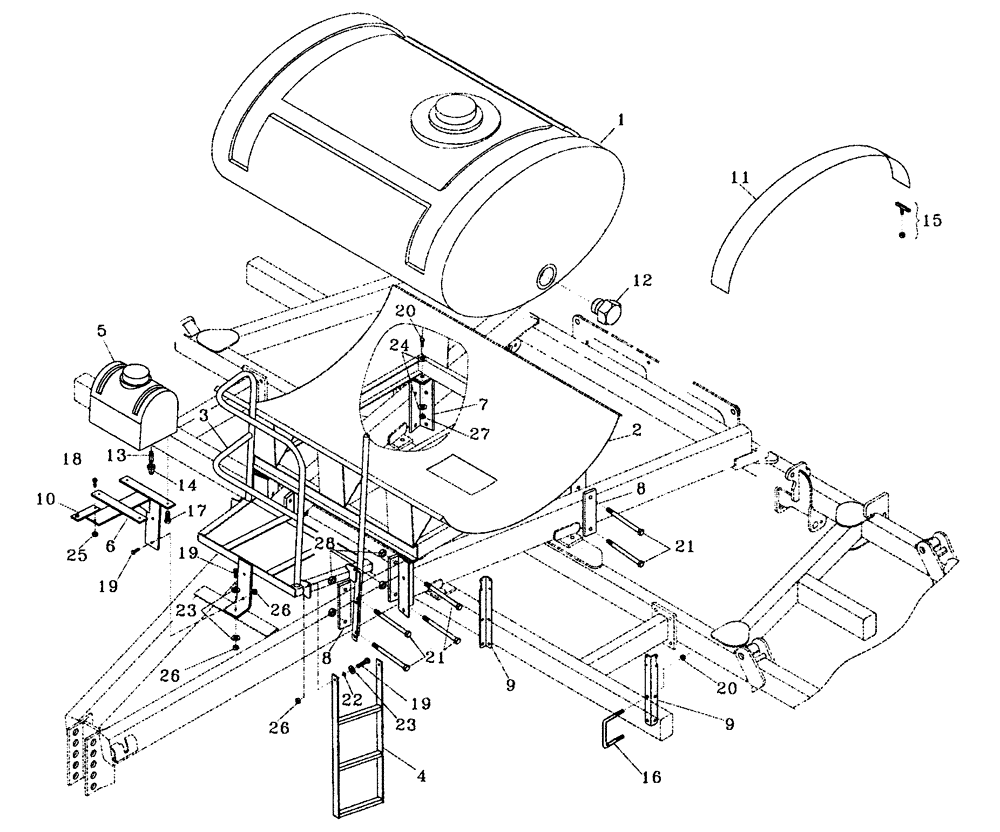

Запчасти Case IH 4300 (75.200.15) - TOOL BAR MOUNT TANK (09) - CHASSIS/ATTACHMENTS

1

87461175

TANK

500 Gallon

1шт.

2

87338177

MOUNTING PARTS

Tank

1шт.

3

87339357

FRAME ASSY

Platform

1шт.

4

87339358

LADDER

1шт.

5

87461173

TANK

Wash

1шт.

6

87339226

FRAME ASSY

Wash Tank

2шт.

7

87339231

FRAME ASSY

Tank Mount, Short

2шт.

7

87339229

FRAME ASSY

Tank Mount, Long

2шт.

8

87339227

CONNECTING STRAP

6шт.

9

04685220

BRACKET

Hose

2шт.

10

04685250

BRACKET

Gauge

1шт.

11

05302330

STRAP

Tank

2шт.

12

34308006

PLUG

2, Pipe

1шт.

13

34308004

HYD CONNECTOR,1/2" NPT x 1/2" NPT, Poly

1/2

1шт.

14

34308003

VALVE,1/2" Single Union Poly Valve

1/2, NPTF, Union Ball

1шт.

15

16998285

CAPSCREW,J, 1/2" - 13 x 7", Gr 5

J-Bolt

2шт.

16

87427168

U-BOLT

5/8 x 6, NC

2шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

NC

4шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

NC

1шт.

19

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

NC

5шт.

20

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

NC

4шт.

21

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

NC

12шт.

22

02138110

SPACER

2шт.

23

495-21056

WASHER,1/2"

Flat

4шт.

24

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

8шт.

25

231-4246

LOCK NUT,3/8"-16, GB

NC

1шт.

26

425-108

NUT,1/2" - 13, Gr 5

NC

5шт.

27

425-1010

NUT,5/8"-11, G5

NC

8шт.

28

425-1012

NUT,3/4"-10, G5

NC

12шт.
