Запчасти Case IH 4300 (75.200.05) - HCS SHANK ASSEMBLY 2006 MODEL YEAR AND PRIOR (09) - CHASSIS/ATTACHMENTS

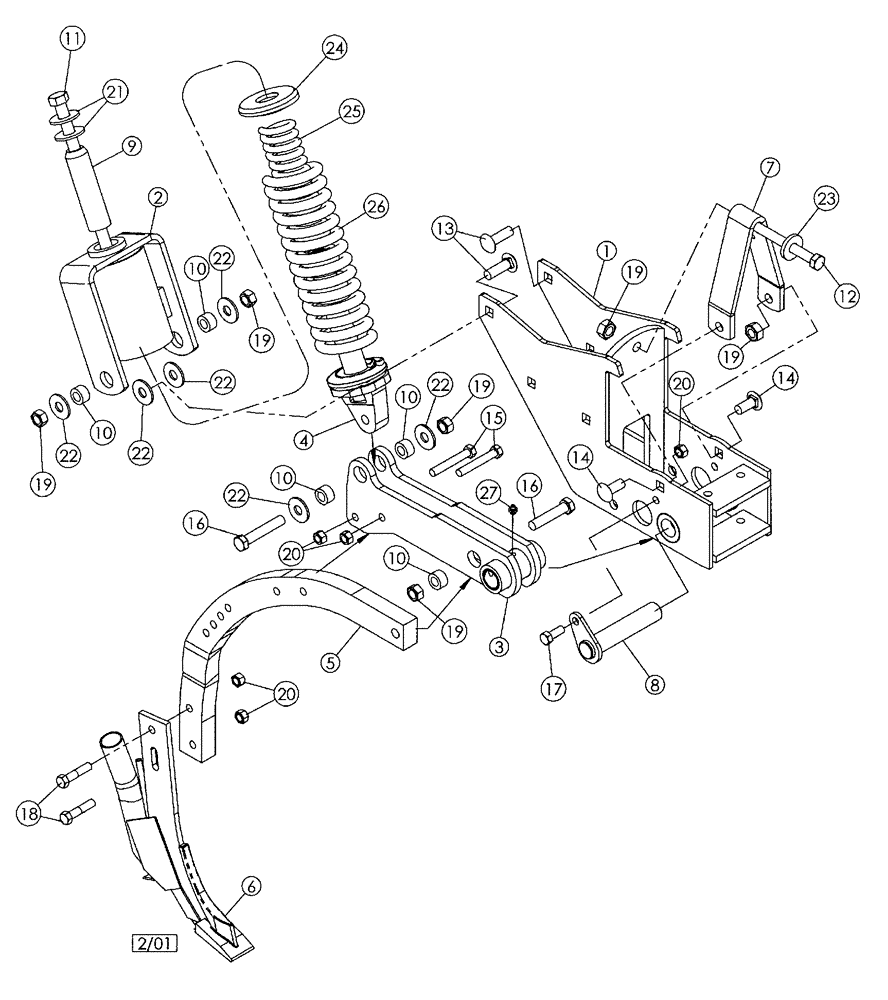

Схема запчастей Case IH 4300 - (75.200.05) - HCS SHANK ASSEMBLY 2006 MODEL YEAR AND PRIOR (09) - CHASSIS/ATTACHMENTS
21
24
10
14
22
22
26
18
13
7
2
20
5
10
3
14
23
9
19
27
6
19
19
22
25
17
10
11
4
15
20
22
16
10
16
22
22
1
8
10
19
19
12
20
19

Артикул

Название

Примечание

Количество

87452656

SHANK

HCS, Does Not Inlcude Knife

1шт.

1

04691710

MOUNTING PARTS

Shank

1шт.

2

04691730

BELT

Spring

1шт.

3

04691735

PIVOT

Shank

1шт.

4

04691725

SPECIAL BOLT

Spring

1шт.

5

33020031

SHANK

Formed

1шт.

6

33607130

KNIFE

Strip Till, Dry & NH3 Combination

1шт.

6

33607135

KNIFE

Strip Til, NH3 Only

1шт.

7

04691717

STOP

Flip Up

1шт.

8

14820475

TOWBAR PIN

1-1/4 Flag

1шт.

9

04691721

TUBE,0.812" ID, 1.5" OD, 5.5" Length

Wear

1шт.

10

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

5шт.

11

16901244

BOLT

3/4" x 11-1/2" Special

1шт.

12

413-10120

BOLT,Hex, 5/8" - 11 x 7-1/2", Gr 5

1шт.

13

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

2шт.

14

433-1024

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

2шт.

15

16908128

BOLT

1/2 x 3, A-325

2шт.

16

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

1шт.

18

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

19

85700693

NUT,5/8" - 11, Gr C

7шт.

20

86992215

LOCK NUT,1/2"-13, GC

5шт.

21

495-21081

WASHER,3/4"

2шт.

22

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

6шт.

23

495-81028

WASHER,21/32" x 1 1/2" x .240"

1шт.

24

20090124

HUB

Spring

1шт.

25

24143816

SPRING

Compression

1шт.

26

24162505

SPRING

Compression

1шт.

27

219-86

LUBE NIPPLE,1/8" NPTF

Self Tap

1шт.

Выбрано товаров: 29
