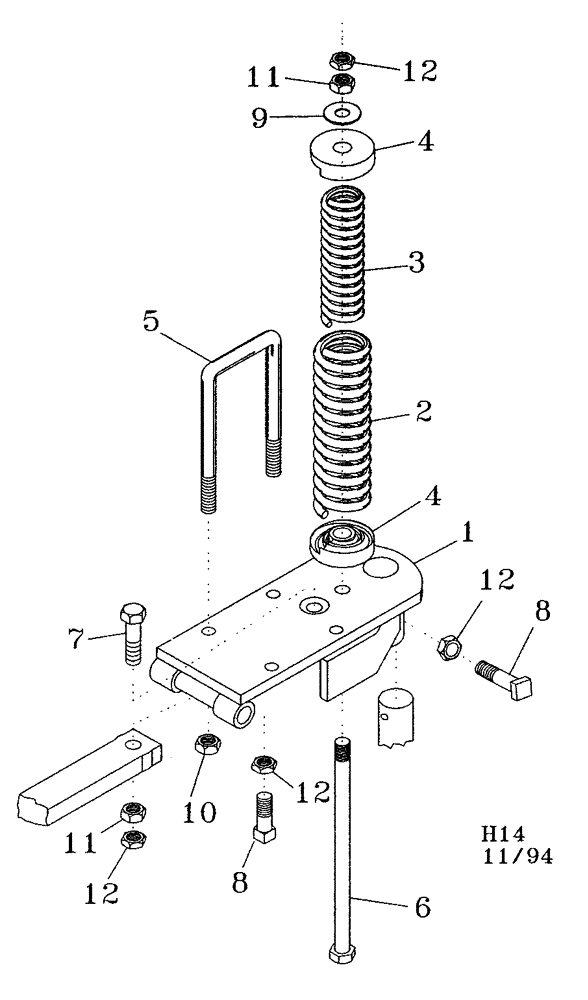

Запчасти Case IH 4300 (75.200.03) - HEAVY DUTY SPRING C-S MOUNT (09) - CHASSIS/ATTACHMENTS

87385950

MOUNTING PARTS

4 x 6 HD Spring C-S Without Hardware

1шт.

1

87396602

MOUNTING PARTS

Spring C-S

1шт.

2

24162504

COMPRESSION SPRING

4-1/16 OD

1шт.

3

24143812

COMPRESSION SPRING

2-1/2 OD

1шт.

4

20090120

SPRING BOX

Double

2шт.

5

87427161

U-BOLT

BOLT "U" 5/8" x 4 x 5-1/2"

2шт.

5

87427170

U-BOLT

BOLT "U" 5/8" x 4" x 8"

2шт.

6

16912606

BOLT

3/4" x 15"

1шт.

7

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

8

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2", Square Head

2шт.

9

495-21081

WASHER,3/4"

1шт.

10

425-1010

NUT,5/8"-11, G5

Hex.

4шт.

11

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

12

425-1412

JAM NUT,Jam, 3/4"-10, G5

4шт.
