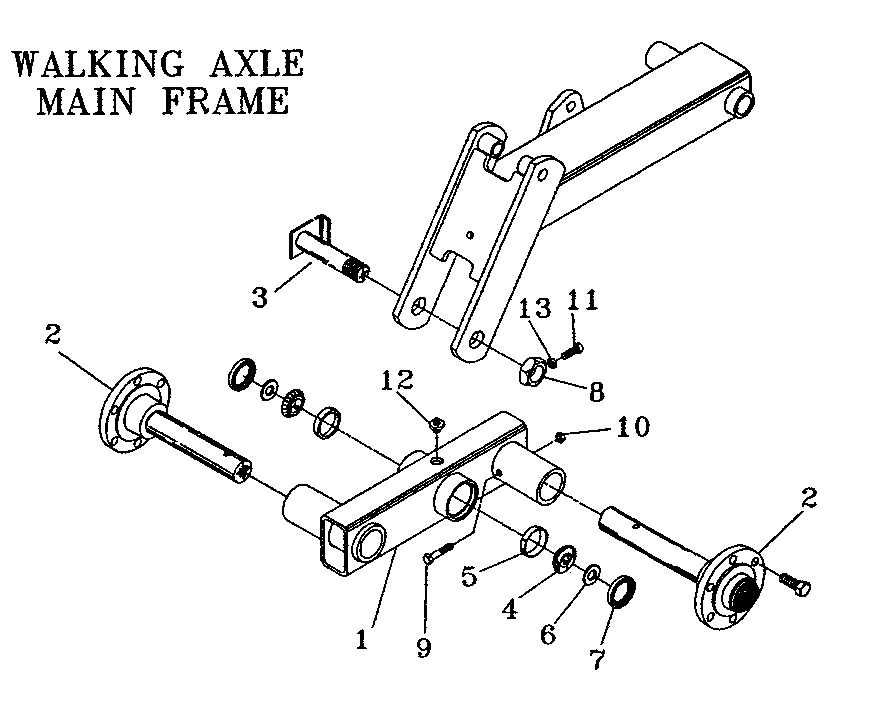

Запчасти Case IH 4300 (44.100.02) - 5300 MAIN FRAME WALKING AXLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

04683045

AXLE

Walking, RH

1шт.

1

04683145

AXLE

Walkling, LH

1шт.

2

28078361

HUB ASSY.

783 Hub & 2-1/2" Spindle

2шт.

2

28050885

STUB AXLE/STEERING S

50-8 Hub & Spindle

2шт.

3

04683050

AXLE PIN

1шт.

4

21871501

BEARING CONE,38.1mm ID x 25.65mm W

1.50" Bore, Timken 2776

2шт.

5

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

3.00" OD, Timken 2720

2шт.

6

06400573

SPACER

2шт.

7

21932510

SEAL

3.148" Bore, CR22870

2шт.

8

14032409

NUT

1-1/2", Jam

1шт.

9

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

10

87333862

NUT

2шт.

11

16806045

SET SCREW,Sq Hd, 3/8" - 16 UNC x 1"

3/8" x 1", Square Head

1шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

Self Tap

1шт.

13

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.
