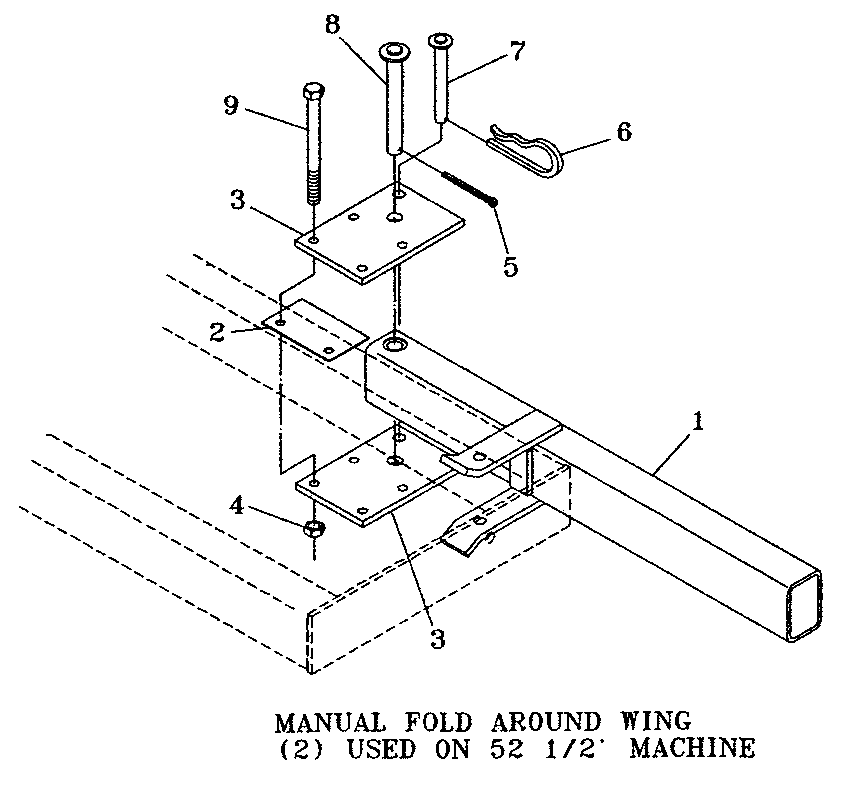

Запчасти Case IH 4300 (39.100.09) - MANUAL FOLD AROUND WINGS FOR 52-1/2 UNITS (09) - CHASSIS/ATTACHMENTS

1

87338670

FRAME ASSY

Fold Around, RH

1шт.

1

87338676

FRAME ASSY

Fold Around, LH

1шт.

2

04662905

SHIM

Fold Around

1шт.

3

04662990

PLATE

Mounting Wing

4шт.

4

425-1012

NUT,3/4"-10, G5

Hex.

8шт.

5

432-1632

COTTER PIN,1/4" x 2"

Split

2шт.

6

14720411

COTTER PIN

PIN, COTTER 1/8" x 2", Hair, Split

2шт.

7

14816610

HITCH PIN

1" x 7-5/8"

2шт.

8

14820610

PIN

1-1/4" x 7-5/8"

2шт.

9

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8шт.
