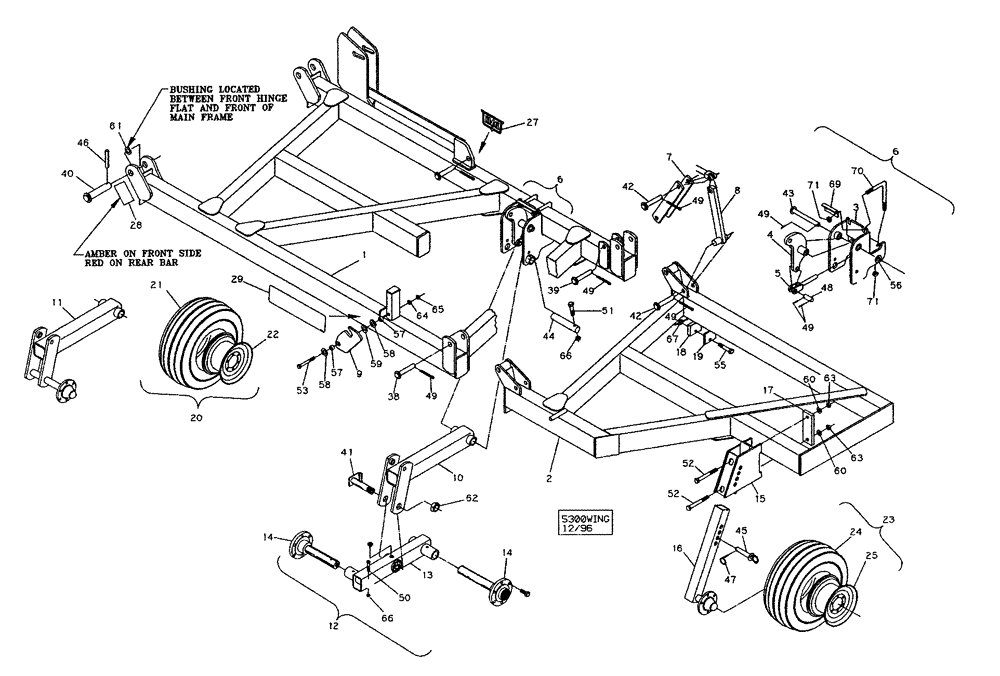

Запчасти Case IH 4300 (39.100.04) - 5300 WING PARTS (09) - CHASSIS/ATTACHMENTS

1

87339092

FRAME ASSY

110, Inner, RH

1шт.

1

87339064

FRAME ASSY

11, Inner, LH

1шт.

2

87339119

FRAME ASSY

Outer, 16 Row, 40 Units Only

2шт.

2

87339121

FRAME ASSY

44, Outer, RH, 42-1/2" Units

1шт.

2

87339120

FRAME ASSY

44, Outer, LH, 42-1/2" Units

1шт.

2

87339123

FRAME ASSY

72, Outer, RH, 47-1/2" Units

1шт.

2

87339124

FRAME ASSY

72, Outer, LH, 47-1/2" Units

1шт.

3

04683575

BRACKET

Mounting, Gauge Wheel

2шт.

4

04683545

PIVOT

Adjustment

2шт.

5

04683586

EYEBOLT

BOLT, EYE

2шт.

6

04683560

MOUNTING PARTS

Gauge Wheel

2шт.

7

04662630

HINGE

Wing

2шт.

8

04682260

LINK

2шт.

9

06220130

BRACKET

Outer Wing

2шт.

10

04683225

LIFT ARM

Spindle, Tandem

2шт.

11

04683410

AXLE

Spindle, RH, Single

1шт.

11

04683460

AXLE

Spindle, LH, Single

1шт.

12

04683200

AXLE

Spindle Arm, Tandem, RH

1шт.

12

04683300

AXLE

Spindle Arm, Tandem, LH

1шт.

13

04683245

AXLE

Walking Axle, RH

1шт.

13

04683345

AXLE

Walking Axle, LH

1шт.

14

28078372

STUB AXLE/STEERING S

783 Hub & Spindle

2шт.

15

04661320

GAUGE

Mounting, Wheel

2шт.

16

02380400

BAR ASSY.

2шт.

17

09576610

LINKAGE

Gauge Wheel

2шт.

18

04626130

SHIM

Wing Outer

2шт.

19

04626120

SHIM

Wing, Outer

1шт.

20

10008256

LAND WHEEL

9.5L x 15, 8 Ply

1шт.

20

10010250

LAND WHEEL

11L x 15, 8 Ply

1шт.

21

NSS

NOT SOLD SEPARAT

9.5L x 15, 8 Ply

1шт.

21

NSS

NOT SOLD SEPARAT

11L x 15, 8 Ply

1шт.

22

10108254

WHEEL

8 x 15, 6 Hole

1шт.

23

87461162

WHEEL ASSY.

8.5L x 14, 6 Ply

2шт.

24

NSS

NOT SOLD SEPARAT

8.5L x 15, 6 Ply

2шт.

25

87461169

WHEEL ASSY.

14 x 8, 6 Hole

2шт.

27

18534261

DECAL

DMI

2шт.

28

18534243

REFLECTOR

Amber

1шт.

28

18534244

REFLECTOR

Red

2шт.

29

18534291

DECAL

5300

2шт.

38

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1-1/4" x 6.31"

4шт.

39

14816466

CLEVIS,44.45mm OD x 164.08mm L

1" x 5.81"

2шт.

40

14820650

HITCH PIN,41.27mm OD x 233.68mm L

1-5/8" x 8-3/4", Hinge

4шт.

41

04661850

PIN

Axle

2шт.

42

14891660

SPECIAL PIN,25.4mm OD x 125.73mm L

1" x 4.31"

4шт.

43

14816686

PIVOT PIN

2шт.

44

14820640

SPECIAL PIN

1-5/8", Years: -01-DEC-96, Serial Range: -3623524

2шт.

44

14892788

PIN,41.27mm OD x 266.7mm L

1-5/8", Start Year: 01-JAN-97, Start Serial: 720762

2шт.

45

14816348

PIN,25.4mm OD x 133.35mm L

1" x 4-1/4"

2шт.

46

438-32840

PIN,11.1mm OD x 63.5mm L

Roll

4шт.

47

A30338

PIN

1/4" x 1-3/4", Klik

2шт.

48

14891619

SPECIAL PIN,25.4mm OD x 63.5mm L

1"

2шт.

49

432-1624

COTTER PIN,1/4" x 1 1/2"

Split

2шт.

50

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

4шт.

51

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

52

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

12шт.

53

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.

55

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

56

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1", Machine

2шт.

57

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

4шт.

58

495-81028

WASHER,21/32" x 1 1/2" x .240"

4шт.

59

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4", 14" Gauge, Machine

2шт.

60

492-11075

LOCK WASHER,3/4"

4шт.

61

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8", 14" Gauge, Machine

2шт.

62

14032408

JAM NUT

1-1/2", Jam With Set Screw

2шт.

63

425-1012

NUT,3/4"-10, G5

Hex.

12шт.

64

425-1010

NUT,5/8"-11, G5

Hex.

2шт.

65

425-1410

JAM NUT,Jam, 5/8"-11, G5

2шт.

66

86992215

LOCK NUT,1/2"-13, GC

4шт.

67

425-108

NUT,1/2" - 13, Gr 5

Hex.

2шт.

68

231-42410

LOCK NUT,5/8"-11, GB

2шт.

69

04683565

PLATE

Mounting

2шт.

70

87427191

SPECIAL BOLT

3/4", Square

4шт.

71

425-1012

NUT,3/4"-10, G5

Hex.

8шт.
