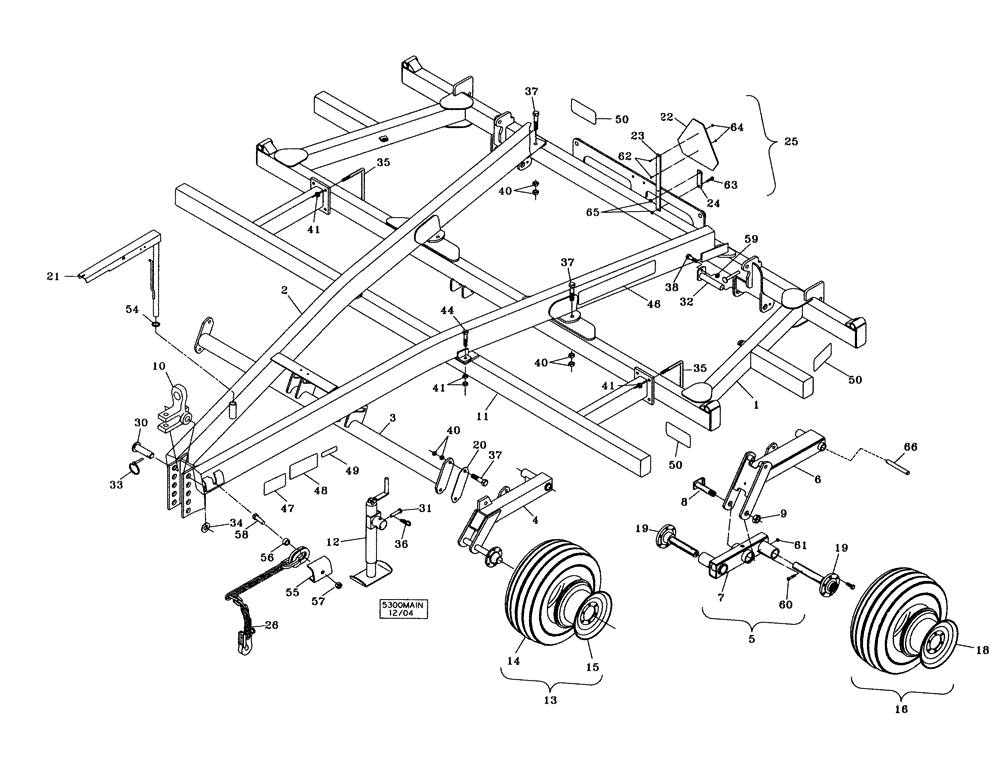

Запчасти Case IH 4300 (39.100.02) - 5300 MAIN FRAME (09) - CHASSIS/ATTACHMENTS

1

87554292

FRAME

Main

1шт.

2

87338697

FRAME ASSY

Pull

1шт.

3

87552165

TUBE,101.6 mm OD x 2471.7 mm L

97.31, (HD Singles)

1шт.

3

87552168

TUBE,101.6 mm OD x 2339.9 mm L

92.12, (Tandems)

1шт.

4

04681900

ARM

Spindle, HD, Single, 50-8. RH

1шт.

4

04681950

ARM

Spindle, HD, Single, 50-8, LH

1шт.

5

04683000

AXLE

Tandem, Main, RH

1шт.

5

04683100

AXLE

Tandem, Main, LH

1шт.

6

04683030

AXLE

Tandem, Main, RH

1шт.

6

04683130

AXLE

Tandem, Main, LH

1шт.

7

04683045

AXLE

Walking, RH

1шт.

7

04683145

AXLE

Walking, LH

1шт.

8

04683050

AXLE PIN

2шт.

9

14032408

JAM NUT

1-1/2", Jam With Set Screw

2шт.

10

20092310

CLEVIS

Combination

1шт.

11

87340631

BAR

Front Coulter

1шт.

12

87416370

JACK,40.1 mm L

5-7K, Swivel

1шт.

13

87447196

WHEEL ASSY

12.5L x 15, 12 Ply Tire, (HD Option)

2шт.

14

NSS

NOT SOLD SEPARAT

12.5L x 15, 12 Ply (HD Option)

2шт.

15

10110274

WHEEL

10 x 15, 8 Hole (HD Option)

2шт.

16

10010250

LAND WHEEL

11L x 15, 8 Ply Tire, (Standard Tandem)

4шт.

17

NSS

NOT SOLD SEPARAT

11L x 15, 8 Ply (Standard Tandem)

4шт.

18

10108254

WHEEL

8 x 15, 6 Hole (Standard Tandem)

4шт.

19

28078361

HUB ASSY.

783, with Spindle, Main Frame

4шт.

19

28050885

STUB AXLE/STEERING S

50-8, with Spindle, Main Frame

4шт.

20

04661154

SHIM

2шт.

21

05302150

STAND

Hose And Gauge

1шт.

22

311860A1

EMBLEM

SMV

1шт.

23

06000099

BRACE

SMV

1шт.

24

04660050

BRACE

1шт.

25

18584200

KIT

SMV

1шт.

26

87389757

CHAIN

30,400, Safety

1шт.

30

14820525

HITCH PIN,41.28mm OD x 204.72mm L

1-5/8", OD

1шт.

31

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8", Clevis

1шт.

32

14820920

PIN,41.27mm OD x 307.85mm L

1-5/8", OD

2шт.

33

D33805

PIN

7/16" x 2", Klik

1шт.

34

17426001

WASHER

1-5/8", HD

1шт.

35

87427186

U-BOLT

BOLT "U" 3/4" x 6" x 5-1/2"

4шт.

36

14720411

COTTER PIN

PIN, COTTER 1/8" x 2", Hair, SPLIT

1шт.

37

413-1448

BOLT,Hex, 7/8" - 9 x 3", Gr 5

10шт.

38

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

40

425-1014

NUT,7/8"-9, G5

Hex.

20шт.

41

425-1012

NUT,3/4"-10, G5

Hex.

8шт.

44

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

46

18534249

DECAL

Nutri-Plac'r

2шт.

47

18534107

DECAL

Patent

1шт.

48

18534228

DECAL

Caution

1шт.

49

18534174

DECAL

Other Patents Applied For

1шт.

50

18534227

DANGER DECAL

4шт.

51

18530053

DECAL KIT

For Entire Machine

1шт.

54

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", Machine

1шт.

55

04681210

BRACKET

1шт.

56

04681211

BUSHING

1шт.

57

86992219

LOCK NUT

1

1шт.

58

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

1шт.

59

425-1010

NUT,5/8"-11, G5

Hex.

4шт.

60

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

61

87333862

NUT

4шт.

62

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

63

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

64

86992211

NUT

1/4"

2шт.

65

231-4246

LOCK NUT,3/8"-16, GB

2шт.

66

14891672

PIN

1" x 9"

2шт.
