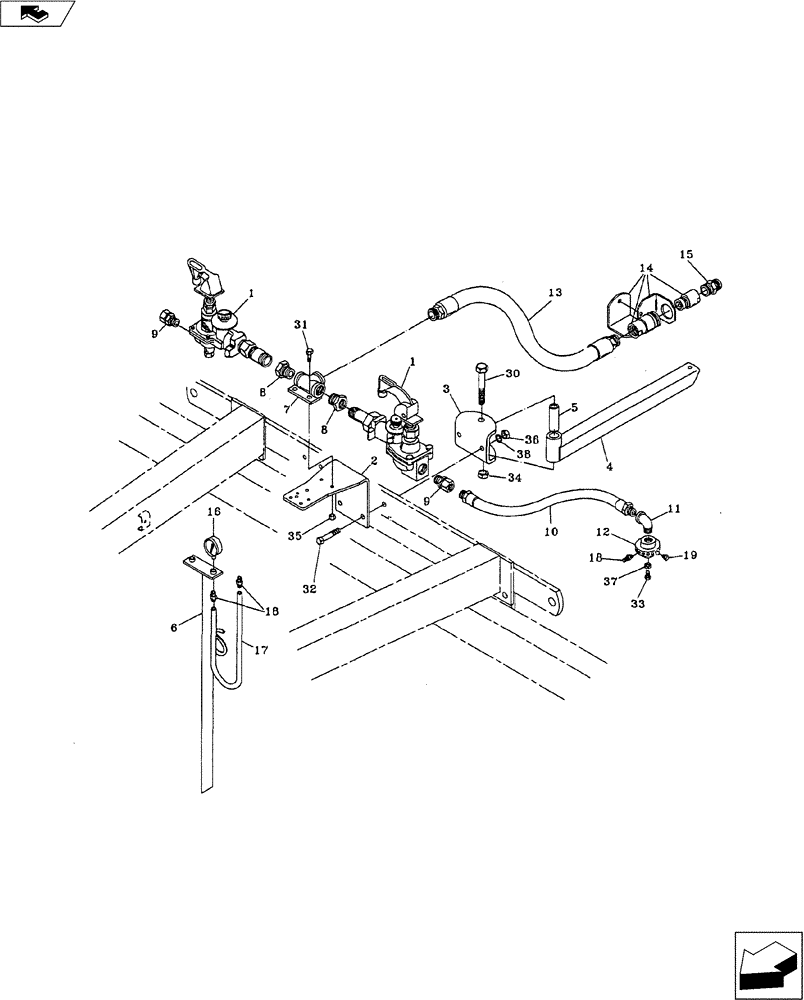

Запчасти Case IH 4250 (75.200.06) - DOUBLE CONTINENTAL ASSEMBLY (WITH 2 MANIFOLDS) (75) - SOIL PREPARATION

1

34104101

C4103 RPR Cont. with Single Outlet

2шт.

2

04660310

STAND

Regulator

1шт.

3

04660320

BAR ASSY.

Bracket

1шт.

4

04660330

CHANNEL

Extension Pivot Mount

1шт.

5

04660340

TUBE,0.81" ID, 1.25" OD

Pivot Tube

1шт.

6

04631200

SUPPORT

Hose and Gauge

1шт.

7

02259500

Double Regulator

1шт.

8

15031259

ADAPTER

1-1/4" x 1" NPT

2шт.

9

15081006

COUPLING

1" Swivel Pipe

2шт.

10

25674955

HOSE ASSY.

1" A.A. x 126" Lg.

2шт.

11

15001002

FITTING

1" NPT x 90" Street

2шт.

12

34199024

VENT MANIFOLD

Continental, 14 Outlet

2шт.

12

34199012

VENT MANIFOLD

Continental, 18 Outlet 21-33 Shank Wheat Machines

2шт.

12

34199014

Continental, 24 Outlet 37-39 Shank Wheat Machines

2шт.

13

25675320

HOSE,1.25" ID x 32.00"

A.A.

1шт.

14

02600040

FITTING

1-1/4" Quick Coupler Assy.

1шт.

15

34314100

FITTING

1-3/4" ACME x 1-1/4" NPTM

1шт.

16

34599060

GAUGE

Dial - 60 p.s.i.

2шт.

17

25630600

HOSE

3/8" I.D. A.A.

1шт.

17

25630800

1/2" I.D. A.A.

1шт.

18

15049251

1/4" NPT x 3/8" Hose Barb

1шт.

18

15040252

FITTING,1/2" Hose Barb x 1/4" - 18 NPT

1/4" NPT x 1/2" Hose Barb

1шт.

18

15040120

FITTING

1/8" NPT x 3/8" Barb Orificed Wheat Machines Only

1шт.

19

15020250

PLUG

1/4" NPT

1шт.

19

15020120

FITTING

1/8" Pipe

1шт.

30

16012245

BOLT

3/4" x 6" NC Hex. Gd. 5

1шт.

31

NSS

NOT SOLD SEPARAT

3/8" x 1" NC Hex. Bolt

2шт.

32

16010105

BOLT

5/8" x 2-1/2" NC Hex. Gd. 5

2шт.

33

NSS

NOT SOLD SEPARAT

1/2" x 3/4" NC Hex. Bolt

2шт.

34

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

35

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

36

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

37

NSS

NOT SOLD SEPARAT

1/4" Lock Washer

2шт.

38

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

2шт.
