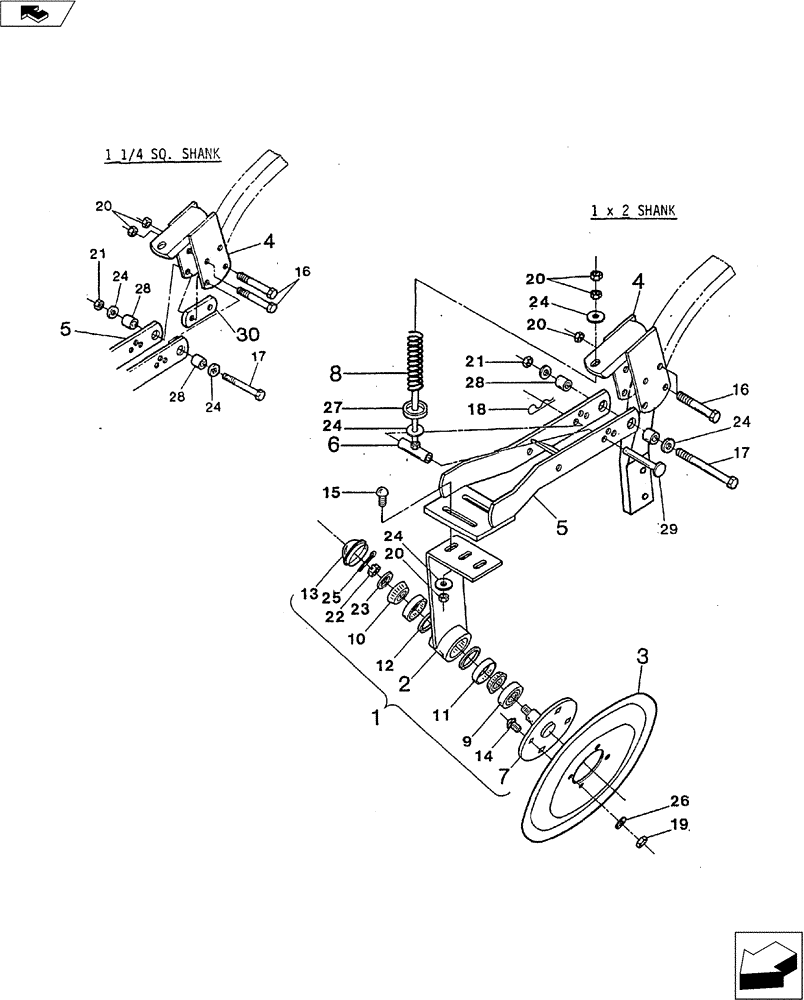

Запчасти Case IH 4250 (75.200.03) - UNI-SEALER (75) - SOIL PREPARATION

02333000

PLOW DISC

Uni-Sealer Assy.

1шт.

1

02333100

Bearing Assy.

1шт.

2

02333110

Bearing Weld

1шт.

3

33551441

PLOW DISC

Uni-Sealer

1шт.

4

02333300

BRACKET

Weld

1шт.

5

02333200

FRAME

Weld

1шт.

6

02333500

SUPPORT

Pivot Bolt (1/2")

1шт.

7

02329000

Spindle Weld

1шт.

8

24117700

COMPRESSION SPRING

1шт.

9

21931000

SEAL

CR 10035

1шт.

10

21870750

BEARING CONE

0.75" Bore (Timken LM11949)

2шт.

11

21881780

BEARING CUP

1.78" O.D. (Timken LM11910)

2шт.

12

14600188

SNAP RING

Internal

2шт.

13

28400400

DUST CAP

1шт.

14

NSS

NOT SOLD SEPARAT

3/8" x 3/4" Carriage Bolt

4шт.

15

NSS

NOT SOLD SEPARAT

1/2" x 1-1/2" NC Carriage Bolt

2шт.

16

NSS

NOT SOLD SEPARAT

1/2" x 3-1/2" NC Capscrew

1шт.

17

NSS

NOT SOLD SEPARAT

1/2" x 5-1/2" NC Capscrew

1шт.

18

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

1шт.

19

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

4шт.

20

NSS

NOT SOLD SEPARAT

1/2" NC Hex. Nut

5шт.

21

NSS

NOT SOLD SEPARAT

1/2" NC Locknut

1шт.

22

14051003

NUT

5/8" NF Slotted Hex.

1шт.

23

NSS

NOT SOLD SEPARAT

5/8" SAE Washer

1шт.

24

NSS

NOT SOLD SEPARAT

1/2" Std. Washer

6шт.

25

NSS

NOT SOLD SEPARAT

5/32" x 1" Cotter Pin

1шт.

26

NSS

NOT SOLD SEPARAT

3/8" Lock Washer

4шт.

27

17506010

CUP WASHER,13.49mm ID x 44.45mm OD x 1.59mm Thk

1шт.

28

02323001

BUSHING

Heat Treated

2шт.

29

14808291

CLEVIS PIN,12.7mm OD x 127.45mm L

1/2" x 3-5/8" EL

1шт.

30

02333350

PLATE

Spacer (1-1/4" Shank)

2шт.
