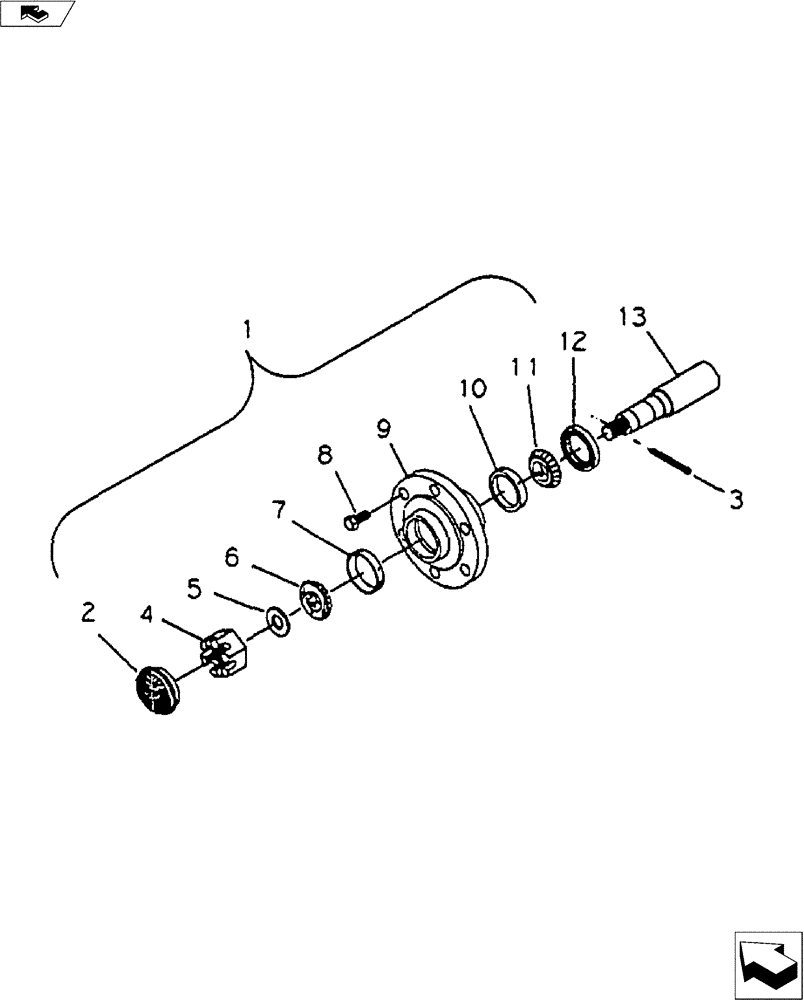

Запчасти Case IH 4250 (44.100.04) - 783 HUB & SPINDLE (44) - WHEELS

28078301

Spindle (Not Shown)

1шт.

1

28178300

HUB ASSY.

783 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" Washer 2" O.D.

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25 Bore Timken LM67048

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33 O.D. Timken LM67010

1шт.

8

16408053

SPECIAL BOLT

1/2" NF x 1-15/32" Lug

6шт.

9

NSS

NOT SOLD SEPARAT

Hub w/Cups

1шт.

10

21882890

BEARING, CUP,41.288 mm ID x 73.456 mm OD x 19.76 mm

2.89 O.D. Timken LM5013010

1шт.

11

21871630

ROLLER BEARING,41.288 mm ID x 19.76 mm

1.625" Bore Timken LM501349

1шт.

12

21931870

SEAL

1.875" I.D. x 3.005" O.D.

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle - 14-13/16"

1шт.
