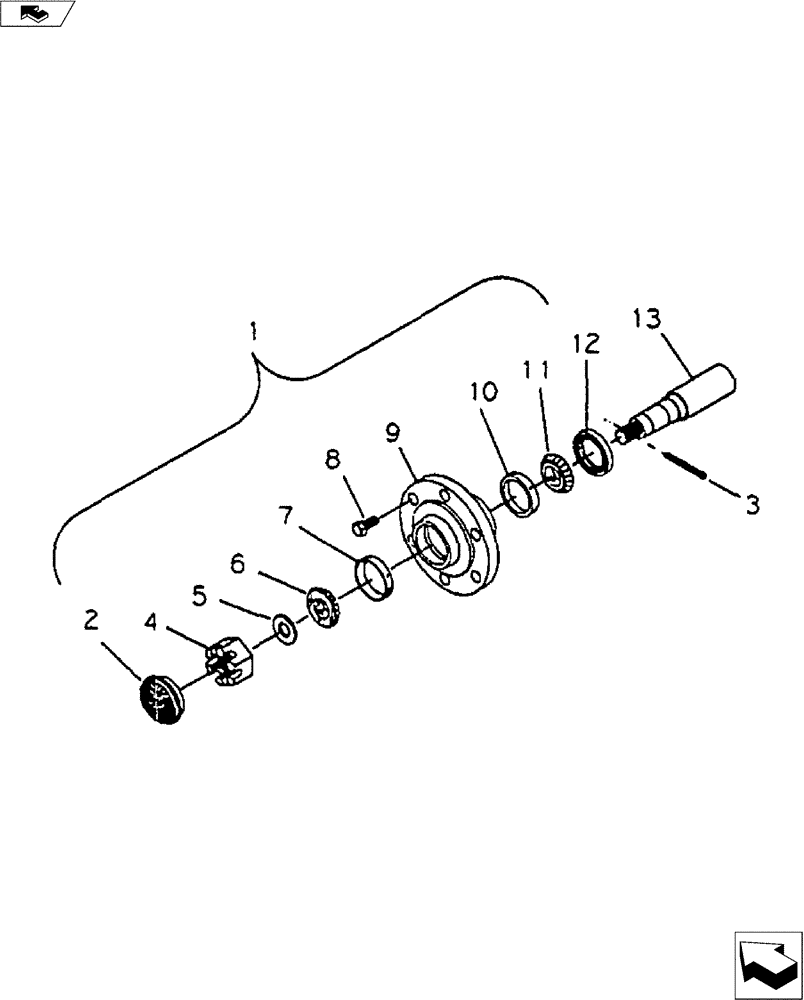

Запчасти Case IH 4250 (44.100.03) - 709 HUB & SPINDLE (44) - WHEELS

28070941

HUB ASSY.

Spindle 12-1/2" (Not Shown)

1шт.

1

28170900

HUB ASSY.

Q-709 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/2" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" Washer 2" O.D.

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore Timken LM 67048

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" O.D. Timken LM67010

1шт.

8

16408053

SPECIAL BOLT

1/2" NF Lug

6шт.

9

NSS

NOT SOLD SEPARAT

Hub

1шт.

10

21882560

BEARING, CUP

2.56" O.D. Timken LM 48510

1шт.

11

21871380

BEARING CONE

1.38" Bore Timken LM 48548

1шт.

12

21931500

OIL SEAL

1.50" I.D. x 2.62" O.D. CR 15190

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle - 14-1/8"

1шт.
