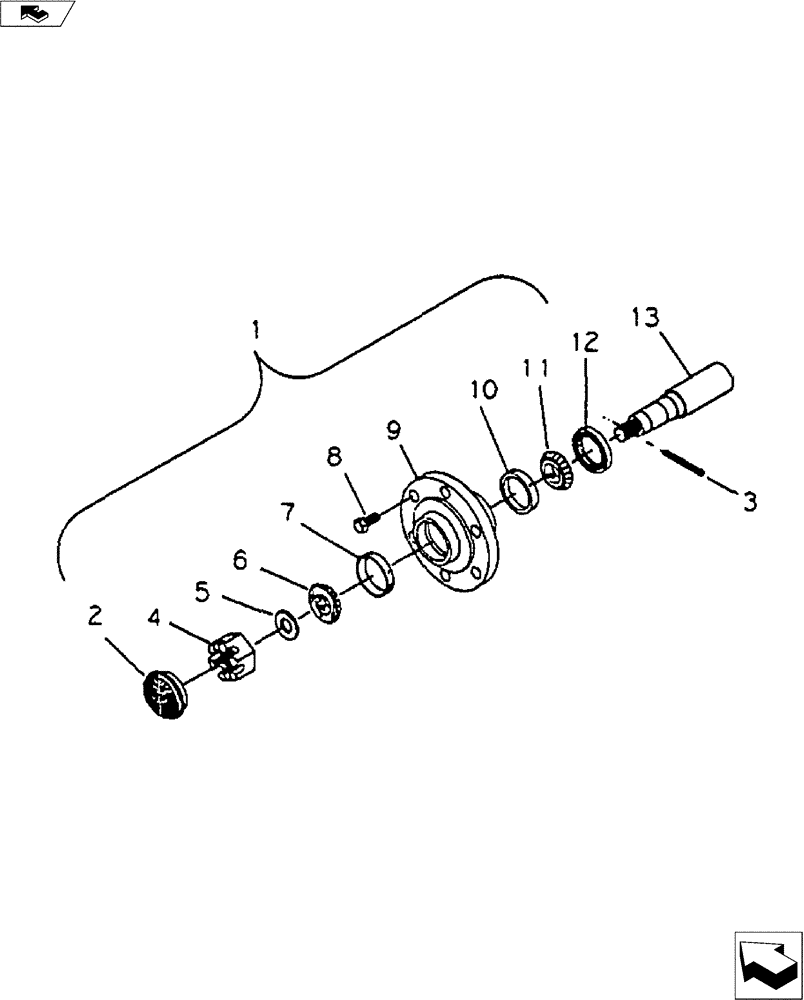

Запчасти Case IH 4250 (44.100.02) - 888 HUB & SPINDLE (44) - WHEELS

28088801

HUB ASSY.

Spindle 12-5/8" (Not Shown)

1шт.

1

28188800

HUB ASSY.

888 6-Bolt

1шт.

2

28477700

HUB CAP

1шт.

3

NSS

NOT SOLD SEPARAT

5/32" x 1-1/4" Cotter Pin

1шт.

4

NSS

NOT SOLD SEPARAT

7/8" NF Slotted Nut

1шт.

5

NSS

NOT SOLD SEPARAT

7/8" Washer 2" O.D.

1шт.

6

21871250

ROLLER BEARING,31.77 mm ID x 16.76 mm

1.25" Bore Timken LM67048

1шт.

7

21882330

BEARING, CUP,31.77 mm ID x 59.15 mm OD x 16.08 mm

2.33" O.D. Timken LM67010

1шт.

8

16408053

SPECIAL BOLT

1/2" x 1 " NF Lug

6шт.

9

NSS

NOT SOLD SEPARAT

888 Hub

1шт.

10

21882480

BEARING, CUP

2.480" O.D. Timken JL69310

1шт.

11

21871496

BEARING, CONE

1.50" Bore Timken JL69349

1шт.

12

21931630

SEAL

1.63" I.D. x 2.57" O.D. CR 16289

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle 14-1/4"

1шт.
