(39.102.05) - ACCESSORY WING (15" EXTENSION WLNG)

Запчасти Case IH 4250 (39.102.05) - ACCESSORY WING (15" EXTENSION WLNG) (39) - FRAMES AND BALLASTING

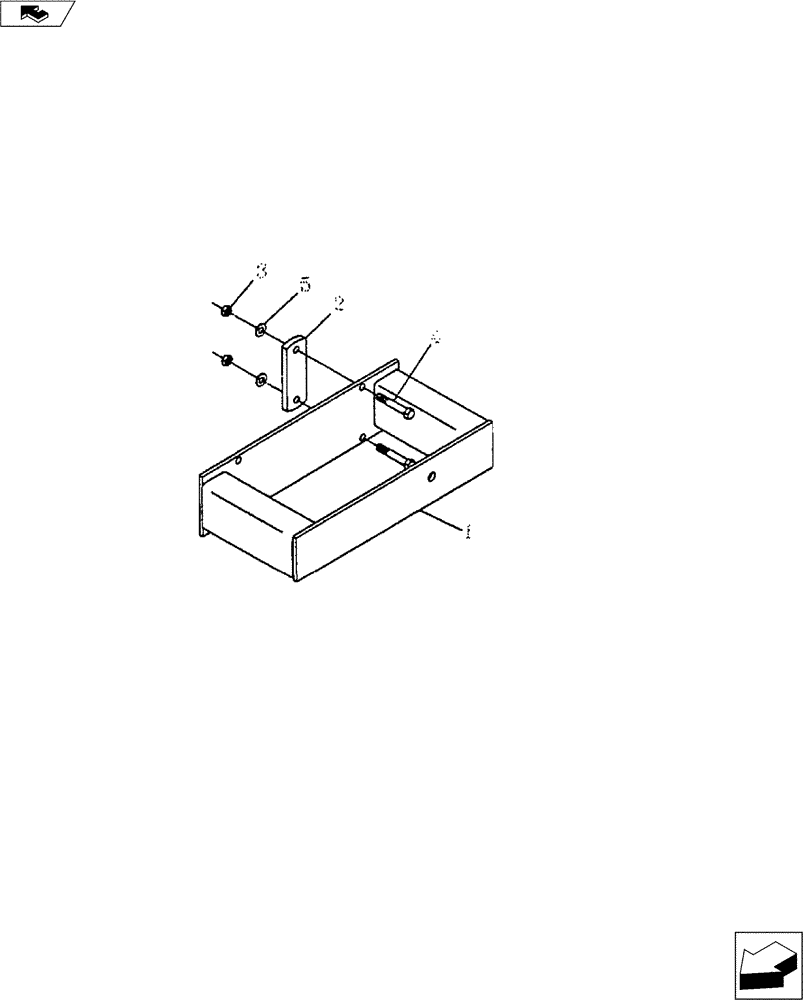

Схема запчастей Case IH 4250 - (39.102.05) - ACCESSORY WING (15" EXTENSION WLNG) (39) - FRAMES AND BALLASTING
2
1
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

04662950

FRAME ASSY

15" Extension Wing w/Hardware (Not Shown)

1шт.

1

04662960

FRAME

15" Extension Wing

1шт.

2

09576610

LINKAGE

Flat

2шт.

3

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

4шт.

4

16012105

BOLT

3/4" x 2-1/2" NC. Gd. 5

4шт.

5

NSS

NOT SOLD SEPARAT

3/4" Lock Washer

4шт.
