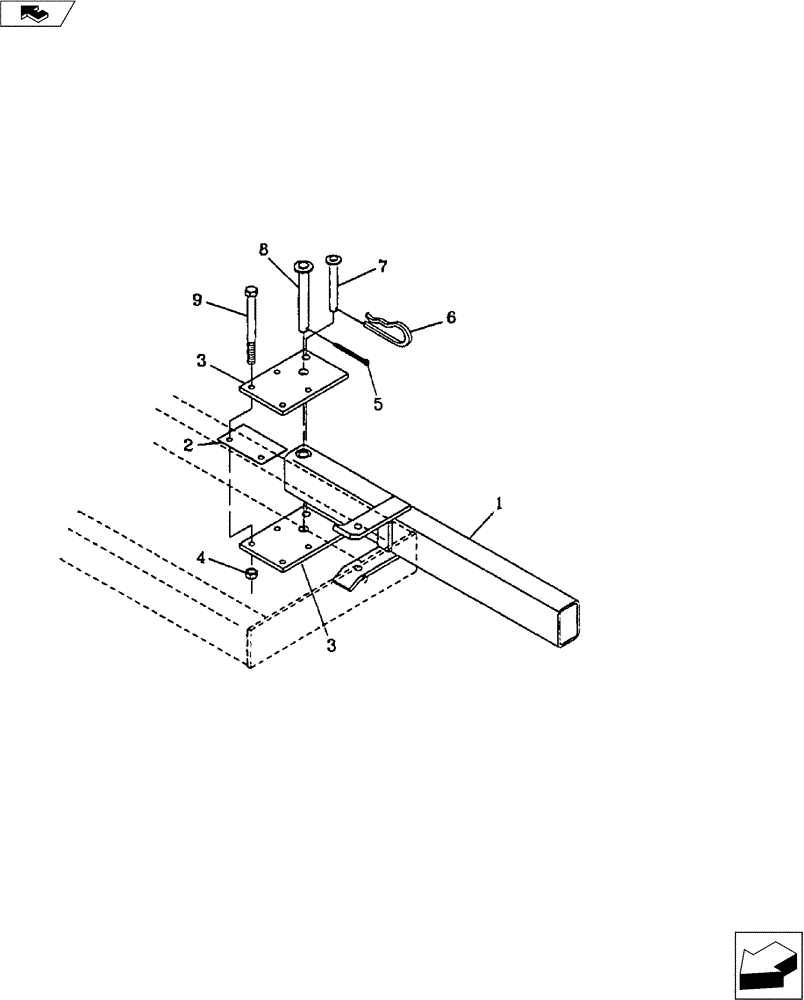

Запчасти Case IH 4250 (39.102.02) - ACCESSORY WINGS (MANUAL FOLD AROUND WING) (39) - FRAMES AND BALLASTING

1

04662930

FRAME

Fold Around Wing R.H.

1шт.

1

04662940

FRAME

Fold Around Wing L.H.

1шт.

2

04662905

SHIM

Fold Wing

1шт.

3

04662990

PLATE

Wing Mtg.

4шт.

4

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut Gd. 2

8шт.

5

NSS

NOT SOLD SEPARAT

1/4" x 2" Cotter Pin

2шт.

6

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

2шт.

7

14816610

HITCH PIN

1" Dia. x 7-5/8"

2шт.

8

14820610

PIN

1-1/4" Dia. x 7-5/8"

2шт.

9

16012345

BOLT

3/4" x 8-1/2" NC. Gd. 5

8шт.
