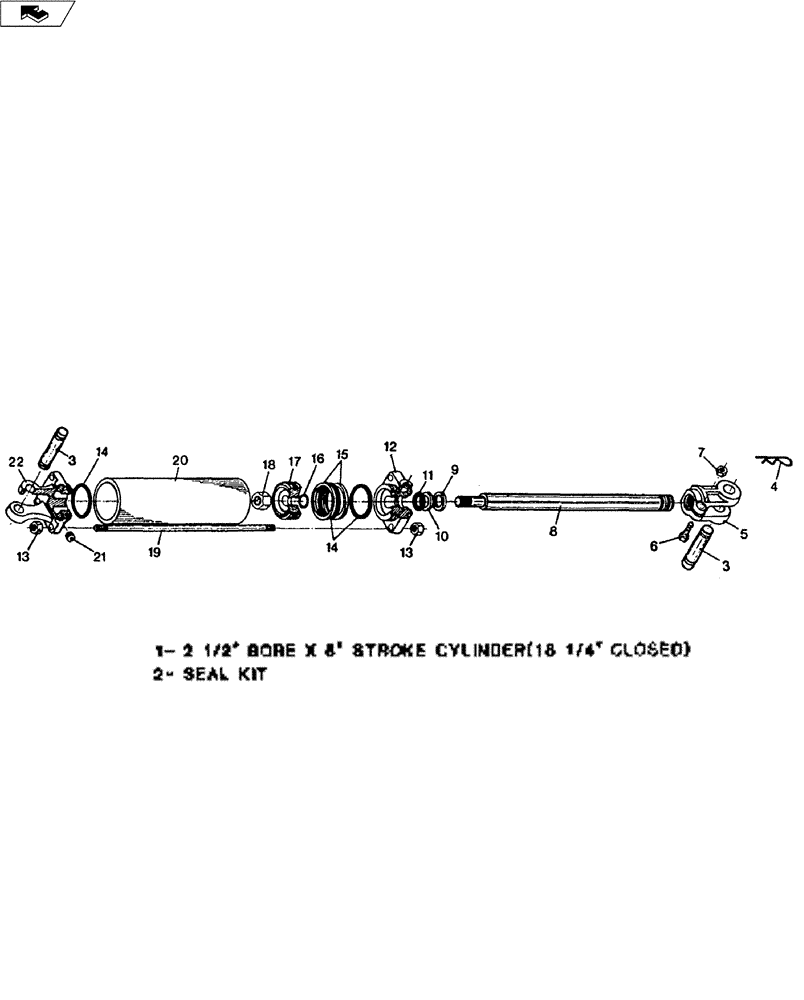

Запчасти Case IH 4200 II (35.100.04) - HYDRAULIC CYLINDER ASSEMBLY (ROCKFORD) (35) - HYDRAULIC SYSTEMS

1

25025083

CYLINDER ASSY.

2-1/2" X 8" - SAE Ports

1шт.

2

25802509

KIT

Seal 1-1/16" Dia. Rod

1шт.

3

14816241

CLEVIS PIN

1" Dia. x 3" El. (Hardened)

2шт.

4

NSS

NOT SOLD SEPARAT

1/8" Dia. Hair Pin

2шт.

5

25802501

SHAFT

Clevis - 1-1/16" UNF Threads

1шт.

6

NSS

NOT SOLD SEPARAT

3/8" x 1-3/4" NC Capscrew

1шт.

7

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

1шт.

8

25802532

1-1/16" Dia.

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25802533

Cylinder - 9/16" SAE Ports

1шт.

13

NSS

NOT SOLD SEPARAT

3/8" NF Hex. Nut

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25802514

SHAFT

1шт.

18

NSS

NOT SOLD SEPARAT

3/4" NF Hex. Nut

1шт.

19

25802506

4шт.

20

25802507

BARREL

1шт.

21

NSS

NOT SOLD SEPARAT

9/16" SAE Plug

1шт.

22

25802534

SHAFT

Cylinder - 9/16" SAE Ports

1шт.
