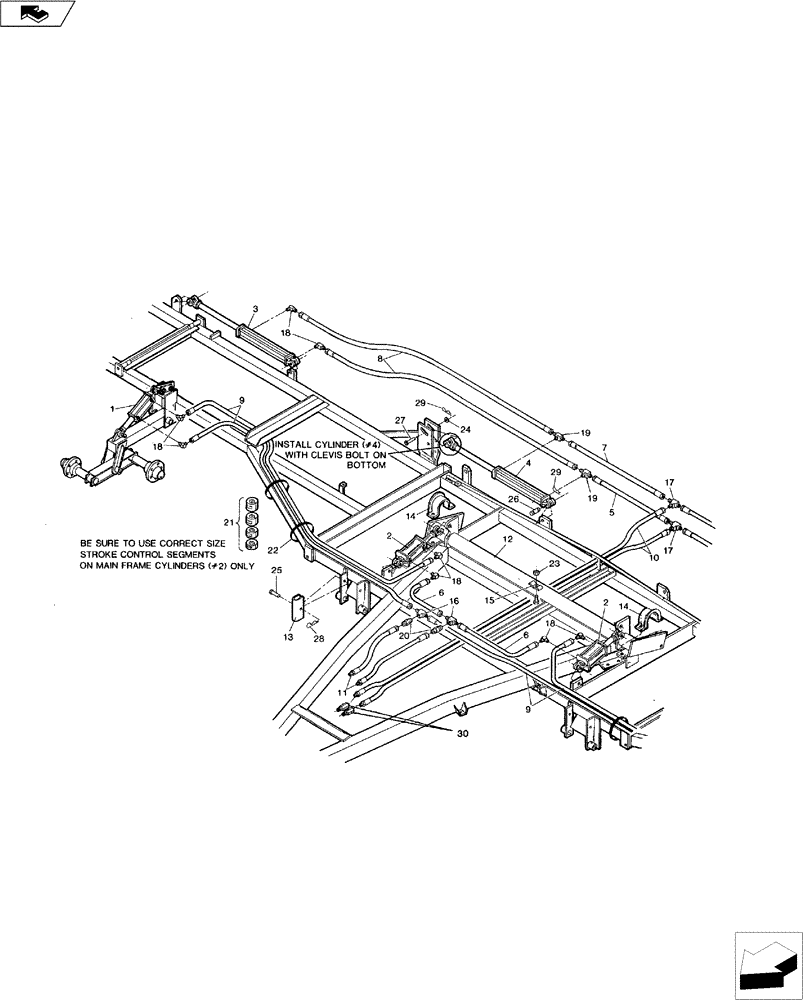

Запчасти Case IH 4200 II (35.100.02) - 4200 II SLAVE HYDRAULICS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
25032100
CYLINDER ASSY.
3-1/4" x 10" Hyd., See Figure 35.100.09
2шт.
87394795R
REMAN-HYD CYLINDER
4200 II 1990 Reman for New P/N 25032100
2шт.
87394795C
CORE-HYD CYLINDER
Return Number
1шт.
2
25035100
CYLINDER ASSY.
3-1/2" x 10" Hyd., See Figure 35.100.10
2шт.
3
25030242
CYLINDER ASSY.
3" x 24" Hyd., See Figure 35.100.05
2шт.
3
25035241
CYLINDER ASSY.
3-1/2" x 24" Hyd., See Figure 35.100.08
2шт.
4
25035241
CYLINDER ASSY.
3-1/2" x 24" Hyd., See Figure 35.100.08
2шт.
4
25040242
CYLINDER ASSY.
4" x 24" Hyd., See Figure 35.100.06
2шт.
25335242R
REMAN-HYD CYLINDER
4200 II-1990, Reman For New P/N 25035241
2шт.
25335242C
CORE-HYD CYLINDER
Return Number
1шт.
5
25600642
HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17
2шт.
6
25600655
HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17
2шт.
7
25600670
HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17
2шт.
8
25600681
HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17
4шт.
9
25600695
HYDRAULIC HOSE,0.38" ID x 220.00", SAE 100R17
4шт.
10
25600683
3/8" Hyd. x 275" Long
2шт.
11
25600893
1/2" Hyd. x 215" Long
2шт.
12
04632200
RIGID TUBE
Lift Assy. - Slave
1шт.
13
05632710
9-1/8"
2шт.
14
09504000
CLAMP
Lift Tube
2шт.
15
22530601
HOSE CLAMP
Double Hose
3шт.
16
25707502
HYD CONNECTOR
(2) 3/4" JICM x 3/4" JICF
2шт.
17
25707518
3 WAY CONNECTION
3/4" JICM
2шт.
18
25707521
ELBOW
3/4" JICM x 3/4" SAEM 90
12шт.
19
25707522
3 WAY CONNECTION
(2) 3/4" JICM x 3/4" SAEM
4шт.
20
25708807
3/4" JICM x JICM Adaptr
2шт.
21
25800010
CYLINDER
Stroke Control 1-1/4"
2шт.
22
30007000
CABLE TIE,.350" x 20.9"
CABLE STRAP 24" Plastic
14шт.
23
NSS
NOT SOLD SEPARAT
5/16" NC Hex. Nut
3шт.
24
NSS
NOT SOLD SEPARAT
1" Std. Washer
2шт.
25
14810251
HEADED PIN,15.88mm OD x 96.77mm L
5/8" x 3-1/8" EL Clevis
2шт.
26
14816264
CLEVIS PIN
1" x 3" EL (Hardened)
2шт.
27
14816346
1" x 4-1/4" EL
2шт.
28
NSS
NOT SOLD SEPARAT
1/8" x 2" Hair Pin
2шт.
29
NSS
NOT SOLD SEPARAT
3/16" x 3" Hair Pin
4шт.
30
25405003
CONTROL VALVE
Throttle - Purple Restrictor
2шт.
Выбрано товаров: 36
