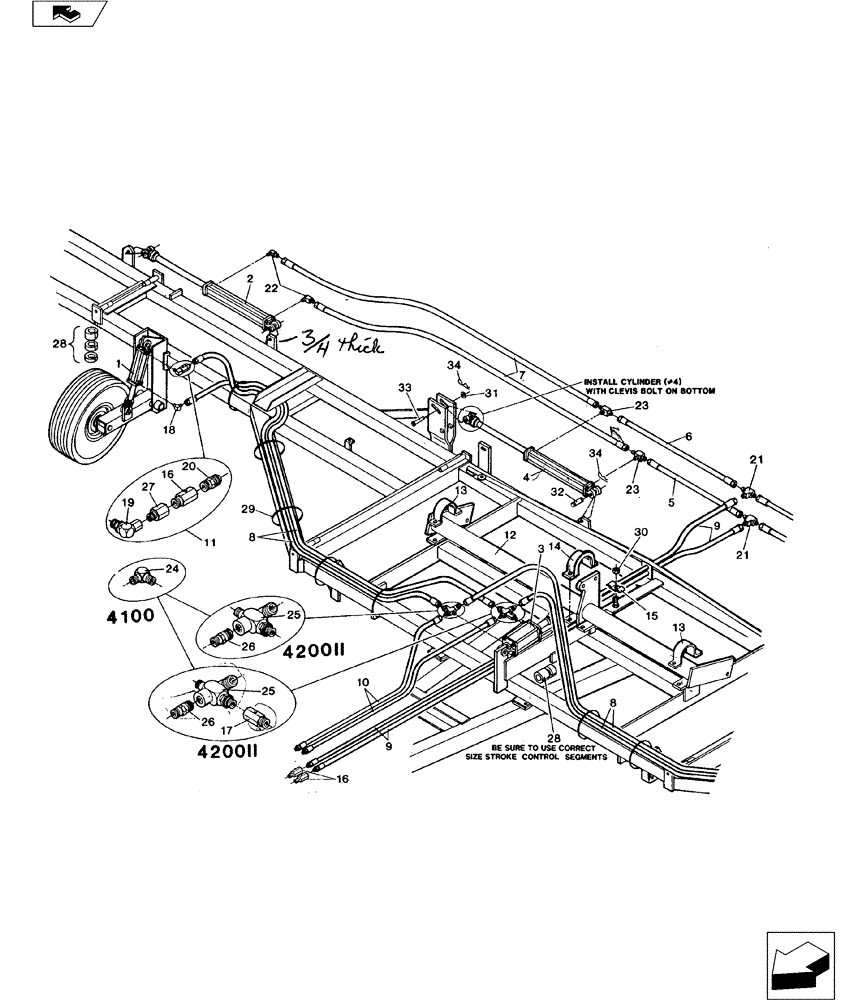

Запчасти Case IH 4200 II (35.100.01) - RESTRICTOR HYDRAULICS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
25025083
CYLINDER ASSY.
2-1/2" x 8" Hyd., See Figure 35.100.04
2шт.
2
25030242
CYLINDER ASSY.
3" x 24" Hyd., See Figure 35.100.05
2шт.
2
25035241
CYLINDER ASSY.
3-1/2" x 24" Hyd., See Figure 35.100.08
2шт.
25335242R
REMAN-HYD CYLINDER
4100 II,4200 II All are in -1990;Reman For New P/N 25035241
2шт.
25335242C
CORE-HYD CYLINDER
Return Number
1шт.
3
25035162
CYLINDER ASSY.
3-1/2" x 16" Hyd., See Figure 35.100.07
1шт.
4
25035241
CYLINDER ASSY.
3-1/2" x 24" Hyd., See Figure 35.100.08
2шт.
4
25040242
CYLINDER ASSY.
4" x 24" Hyd., See Figure 35.100.06
2шт.
5
25600642
HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17
2шт.
6
25600670
HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17
2шт.
7
25600681
HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17
4шт.
8
25600695
HYDRAULIC HOSE,0.38" ID x 220.00", SAE 100R17
4шт.
9
25600683
3/8" Hyd. x 275" Long
2шт.
10
25600893
1/2" Hyd. x 215" Long
2шт.
11
02400127
2шт.
12
04633200
TUBE
Lift - Single Lift Wheels
1шт.
12
04633300
RIGID TUBE
Lift - Tandems Lift Wheels
1шт.
13
09503000
CLAMP
Lift Tube
2шт.
14
09504000
CLAMP
Lift Tube
2шт.
15
22530601
HOSE CLAMP
3шт.
16
25405003
CONTROL VALVE
Throttle - Purple Restrictor
2шт.
17
25405009
CONTROL VALVE
Throttle Valve - Yellow Restrictor
1шт.
18
25705601
ELBOW
9/16 SAEM X 3/4 JICM 90°
2шт.
19
25705602
9/16 SAEM X 3/8 NPTF 90°
2шт.
20
25707510
HYD CONNECTOR
1/2 NPTM X 3/4 JICM
2шт.
21
25707518
3 WAY CONNECTION
3/4 JICM
2шт.
22
25707521
ELBOW
3/4 JICM X 3/4 SAEM 90°
4шт.
23
25707522
3 WAY CONNECTION
(2) 3/4 JICM X 3/4 SAEM
4шт.
24
25707524
3/4 SAEM X 7/8 JICM 90°
2шт.
25
25705005
FITTING
Main Cyl. Cross
2шт.
26
25708808
ADAPTER
7/8 JICM X 1/2 NPTM
2шт.
27
25708815
REDUCER FITTING
1/2 NPTF X 3/8 NPTM
2шт.
28
25800010
CYLINDER
Stroke Control Kit 1-1/4"
3шт.
29
30007000
CABLE TIE,.350" x 20.9"
CABLE STRAP 24" Plastic
14шт.
30
NSS
NOT SOLD SEPARAT
5/16" NC Hex. Nut
3шт.
31
NSS
NOT SOLD SEPARAT
1" Std. Washer
2шт.
32
14816264
CLEVIS PIN
1" x 3" EL (Hardened)
2шт.
33
14816346
1" x 4-1/4" EL
2шт.
34
NSS
NOT SOLD SEPARAT
3/16" X 3" Hair Pin
4шт.
Выбрано товаров: 39
