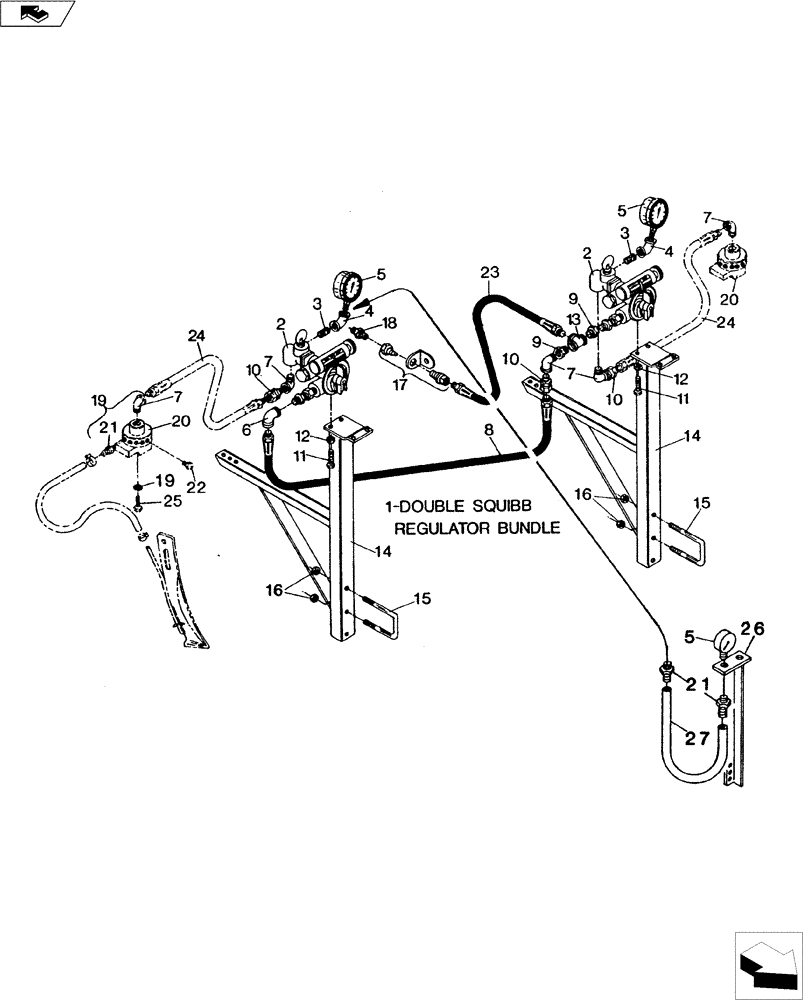

Запчасти Case IH 4200 II (75.200.10) - DOUBLE SQUIBB BUNDLE (75) - SOIL PREPARATION

1

02400250

1661A, Includes Ref. 2-13 & 15-16

1шт.

2

34108100

1661A, See Figure 35.106.03

2шт.

3

15010251

LUBE NIPPLE,1/4" NPT x 1-1/2" L

1/4 NPT x 1-1/2 Lg.

2шт.

4

15060254

1/4 NPT 45°

2шт.

5

34599060

GAUGE

Pressure 0-6- PSI

2шт.

6

15061001

1" NPT 90°

1шт.

7

15001002

FITTING

1" NPT 90° Street Double Strength

5шт.

8

25674322

1" AA x 32" Lg.

1шт.

9

15031259

ADAPTER

1-1/4 x 1 Reducer Bushing

2шт.

10

15081006

COUPLING

1" Pipe

3шт.

11

NSS

NOT SOLD SEPARAT

3/8 x 1-1/2 NC Cap Screw

4шт.

12

NSS

NOT SOLD SEPARAT

3/8 NC Hex. Nut

4шт.

13

15051253

1-1/4 NPT, Double Strength

1шт.

14

02130000

2шт.

15

16310011

U-BOLT

BOLT "U" 5/8 x 4 x 5-1/2

2шт.

16

NSS

NOT SOLD SEPARAT

5/8 NC Hex. Nut

4шт.

17

02600040

FITTING

1-1/4" Quick Coupler Assembly, See Figure 35.850.01

1шт.

18

34314100

FITTING

1-3/4 Acme x 1-1/4 NPTM

1шт.

19

NSS

NOT SOLD SEPARAT

1/2" Lock Washer

2шт.

20

34199024

VENT MANIFOLD

Cont. - 14 Outlets

2шт.

21

15040251

HYD CONNECTOR

1/4 NPT x 3/8" Hose Barb

1шт.

21

15040252

FITTING,1/2" Hose Barb x 1/4" - 18 NPT

1/4 NPT x 1/2" Hose Barb

1шт.

22

15020250

PLUG

1/4 NPT

1шт.

23

25675320

HOSE,1.25" ID x 32.00"

AA

1шт.

24

25674960

1" AA x 104" Lg.

2шт.

24

25674120

1" AA x 144" Lg.

2шт.

25

NSS

NOT SOLD SEPARAT

1/2 x 3/4 NC Cap Screw

2шт.

26

04631200

SUPPORT

Hose & Gauge

1шт.

27

25630600

HOSE

3/8" ID A.A.

1шт.

27

25630800

1/2" ID A.A.

1шт.
