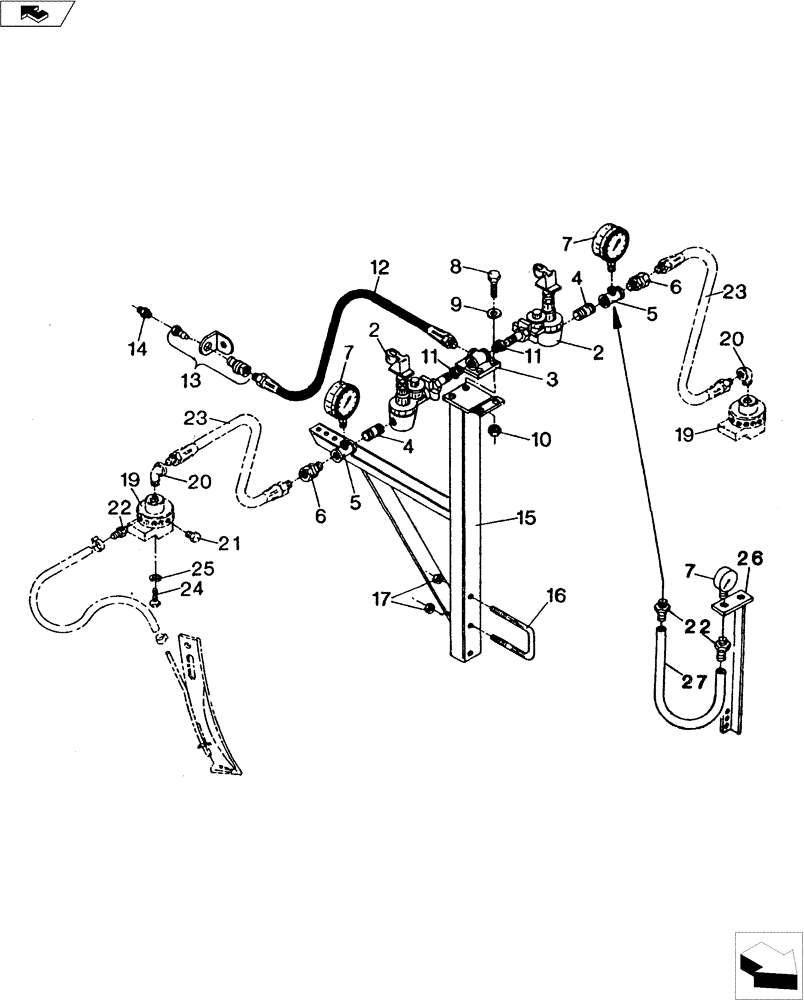

Запчасти Case IH 4200 II (75.200.09) - DOUBLE CONTINENTAL BUNDLE (75) - SOIL PREPARATION

2

34104101

C-4103, See Figure 35.106.02

2шт.

3

02259500

1шт.

4

15011000

FITTING

1" NPT x 1-1/2" Lg.

2шт.

5

15051003

TEE

1" x 1" x 1/4" NPT

2шт.

6

15081006

COUPLING

1" Pipe

2шт.

7

34599060

GAUGE

Pressure 0-60 PSI

2шт.

8

NSS

NOT SOLD SEPARAT

3/8" x 1" NC Capscrew

2шт.

9

NSS

NOT SOLD SEPARAT

3/8" Standard Washer

2шт.

10

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Nut

2шт.

11

15031259

ADAPTER

1-1/4" x 1" Reducer Bushing

2шт.

12

25675320

HOSE,1.25" ID x 32.00"

1-1/4" AA x 32" Lg.

1шт.

13

02600040

FITTING

1-1/4" Quick Coupler Assembly, See Figure 35.850.01

1шт.

14

34314100

FITTING

1-3/4" Acme x 1-1/4" NPTM

1шт.

15

02130000

1шт.

16

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5-1/2"

1шт.

17

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

19

34199024

VENT MANIFOLD

Cont. - 14 Outlets

2шт.

20

15001002

FITTING

1" NPT 90 Street

2шт.

21

15020250

PLUG

1/4" NPT

1шт.

22

15040251

HYD CONNECTOR

1/4" NPT x 3/8" Hose Barb

1шт.

22

15040252

FITTING,1/2" Hose Barb x 1/4" - 18 NPT

1/4" NPT x 1/2" Hose Barb

1шт.

23

25674960

1" AA Hose x 104" Lg.

2шт.

23

25674120

1" AA Hose x 144" Lg.

2шт.

24

NSS

NOT SOLD SEPARAT

1/2" x 3/4" NC Cap Screw

2шт.

25

NSS

NOT SOLD SEPARAT

1/2" Lockwasher

2шт.

26

04631200

SUPPORT

Hose & Gauge Stand

1шт.

27

25630600

HOSE

3/8" I.D. AA

1шт.

27

25630800

1/2" I.D. AA

1шт.
